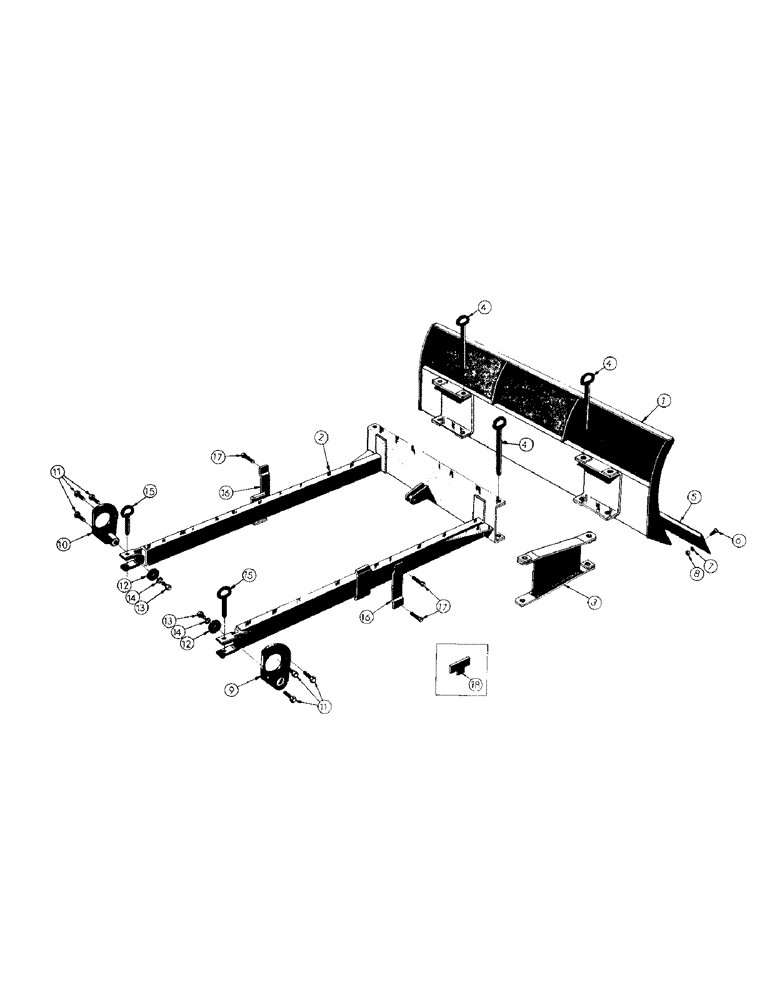

Запчасти Case 256 (089) - SNOW DOZER INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

1

16823

BUSHING

BLADE ASS'Y - snow dozer

1шт.

2

31691

"A" FRAME ASS'Y

1шт.

3

16810

CONNECTING ARM ASS'Y

1шт.

4

17156

PIN ASS'Y (16823, 31691, & 16810 mt'g)

3шт.

5

NLS

NO LONGER SERVICED

CUTTING EDGE

1шт.

6

46711

HOLDER

PLOW BOLT 1/2 - 13 NC x 2 (16452 mt'g)

15шт.

7

48448

X

LOCKWASHER - med. sec.

15шт.

8

47804

HEX NUT - reg. SF

15шт.

9

NLS

NO LONGER SERVICED

PIVOT BRACKET ASS'Y - RH

1шт.

10

16831

GIFTS, VACUUM FLASK

PIVOT BRACKET ASS'Y - LH

1шт.

11

45789

X

HHCS 3/4 - 16 NF x 3 (16830 & 16831 mt'g)

6шт.

12

17134

RETAINER WASHER

2шт.

13

NLS

NO LONGER SERVICED

HHCS 3/4 - 16 NF x 1

2шт.

14

48452

X

LOCKWASHER - med. sec.

2шт.

15

33180

POINT

PIN ASS'Y (31691 mt'g)

2шт.

16

16761

SIDE PLATE

RUB PLATE

2шт.

17

45765

PRESSURE PIPE

HHCS 5/8 - 18 NF x 3-1/4

4шт.

18

33676

DRAWBAR SUPPORT

SPRING LOCKOUT ASS'Y

2шт.
