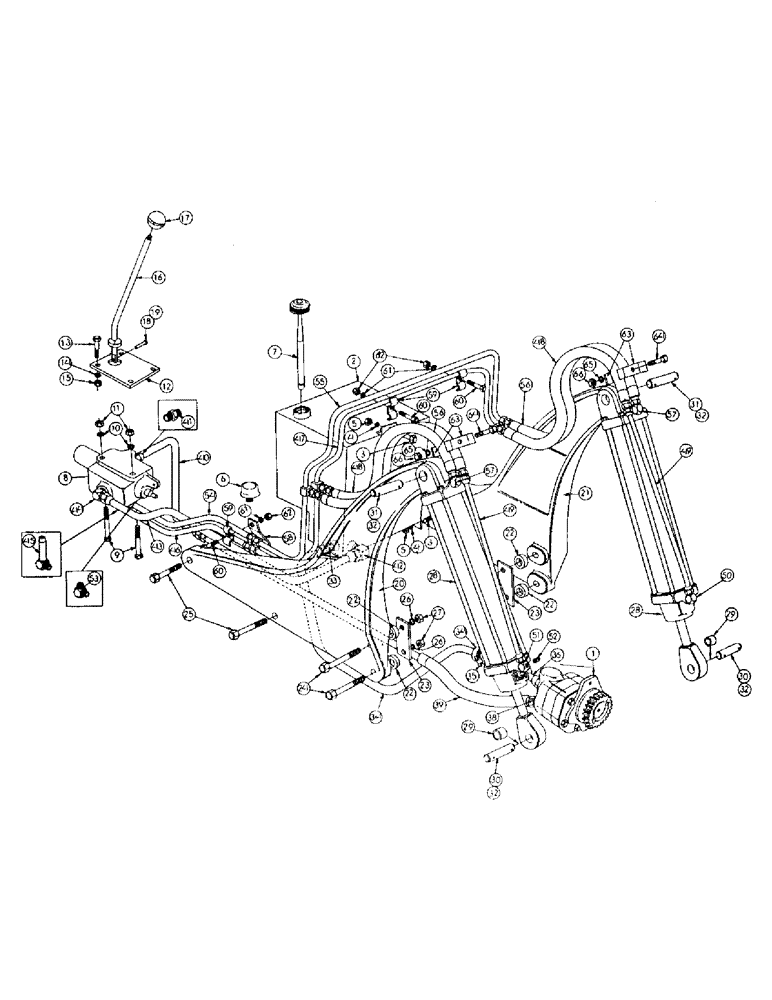

Запчасти Case 256 (086) - STRAIGHT DOZER & ANGLE DOZER HYDRAULIC INST., INDUSTRIAL & (05) - UPPERSTRUCTURE CHASSIS

1

16860

FLEXIBLE HOSE

HYD. PUMP ASS'Y (See Figure 112)

1шт.

2

13647

HYDRAULIC TANK ASS'Y

1шт.

3

45656

X

HHCS 3/8 - 24 NF x 1 (13647 mt'g)

2шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

5

48102

MOUNTING PARTS

HEX NUT - reg. SF

2шт.

6

MT2801S

BREATHER FILTER, replaces 31543

1шт.

7

35074

FILLER CAP & GAUGE STICK ASS'Y

1шт.

8

16130

TUBE

HYD. VALVE ASS'Y (See Figure 106)

1шт.

9

45719

HHCS 1/2 - 20 NF x 4-1/2 (16130 mt'g)

2шт.

10

48448

X

LOCKWASHER - med. sec.

2шт.

11

48104

PISTON

HEX NUT - reg. SF

2шт.

12

16694

GUIDE PLATE - valve lever

1шт.

13

45657

HHCS 3/8 - 24 NF x 1-1/4 (16694 mt'g)

4шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

48102

MOUNTING PARTS

HEX NUT - reg. SF

4шт.

16

16675

GUSSET

LEVER - valve control

1шт.

17

CAS31375

KNOB

BALL - grip

1шт.

18

VT2105

X

YOKE PIN - SAE standard

1шт.

19

48672

X

COTTER PIN - 1/16 dia x 1/2

1шт.

20

16692

CYLINDER BRACKET RH

1шт.

21

16693

CLAMP

CYLINDER BRACKET LH

1шт.

22

32799

SPACER

4шт.

23

17803

REINFORCING PLATE

2шт.

24

45760

HHCS 5/8 - 18 NF x 2 (16692 - 16693 mt'g)

4шт.

25

45762

X

HHCS 5/8 - 18 NF x 2-1/2 (16692 - 16693 mt'g)

4шт.

26

48450

FRONT AXLE

LOCKWASHER - med. sec.

8шт.

27

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. SF

8шт.

28

17751

HYD. CYLINDER ASS'Y (See Figure 93)

2шт.

29

17631

BUSHING

2шт.

30

16726

PIN (17751 mt'g)

2шт.

31

18743

PIN (17751 mt'g)

2шт.

32

48739

X

COTTER PIN 1/4 DIA x 2

8шт.

33

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

MALE CONNECTOR - 1 NP to 1 JIC

1шт.

34

18940

TUBE ASS'Y -, Serial Range: tank-pump

1шт.

35

32798

HOSE

LOW PRESSURE

1шт.

36

49766

AUGER

CLAMP (Hose)

2шт.

37

18987

TUBE ASS'Y -, Serial Range: pump-tank

1шт.

38

50146

NUT

MALE ELBOW 45 DEGREES - 3/4 NP to 3/4 JIC

1шт.

39

19223

X

HOSE & TUBE ASS'Y -, Serial Range: pump-valve

1шт.

40

18943

TUBE ASS'Y -, Serial Range: valve-pump

1шт.

41

50027

X

MALE CONNECTOR - 1/2 NP to 3/4 JIC

1шт.

42

50116

X

MALE ELBOW 90 DEGREES - 3/4 NP to 3/4 JIC

1шт.

43

18944

TUBE ASS'Y -, Serial Range: tank-valve

1шт.

44

50116

X

MALE ELBOW 90 DEGREES - 3/4 NP to 3/4 JIC

1шт.

45

50571

BRACKET

EXTRA LONG MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC

1шт.

46

18952

TUBE ASS'Y -, Serial Range: valve-manifold

1шт.

47

18946

TUBE ASS'Y - manifold

1шт.

48

35646

HOSE

ASS'Y -, Serial Range: manifold-cylinder

2шт.

49

35647

TUBE ASS'Y - to cylinder front part

2шт.

50

50114

X

MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC

1шт.

51

33888

SPECIAL MALE ELBOW 90 DEGREES

1шт.

52

41820

PIPE PLUG - ext. sq. head - 1/8 NP

1шт.

53

50114

X

MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC

1шт.

54

18953

TUBE ASS'Y -, Serial Range: valve-manifold

1шт.

55

18949

TUBE ASS'Y - manifold

1шт.

56

18950

HOSE ASS'Y -, Serial Range: manifold-cylinder

2шт.

57

50114

X

MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC

2шт.

58

18575

CLAMP BRACKET

1шт.

59

17179

TUBE CLAMP (18952, 18953, 18949 & 18946 mt'g)

3шт.

60

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (17179 mt'g)

3шт.

61

48445

LOCKWASHER - med. sec.

3шт.

62

48101

X

HEX NUT - reg. SF

3шт.

63

32978

PLATE ASSY.

CLAMP PLATE (35646 & 18950 mt'g)

4шт.

64

45632

HHCS 5/16 - 24 NF x 1-1/4 (32978 mt'g)

2шт.

65

48445

LOCKWASHER - med. sec.

2шт.

66

48101

X

HEX NUT - reg. SF

2шт.
