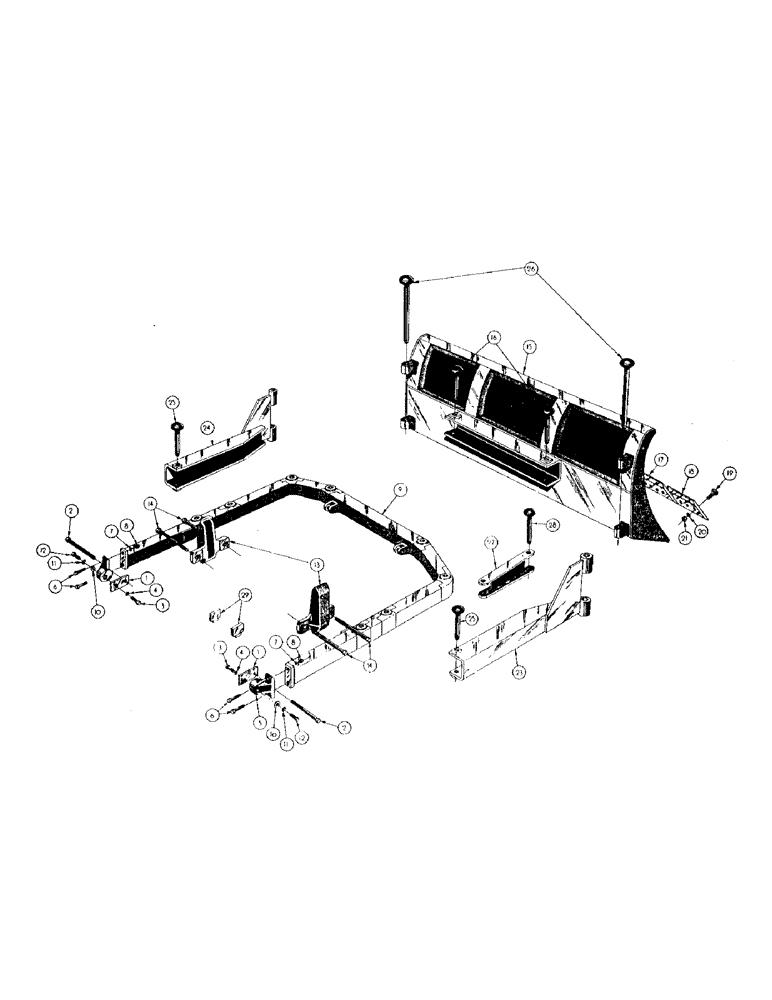

Запчасти Case 256 (080) - ANGLE DOZER INSTALLATION - INDUSTRIAL (05) - UPPERSTRUCTURE CHASSIS

1

16747

HOSE

PIVOT BAR ASS'Y

2шт.

2

46495

SHIFTING UNIT

HHMB 3/4 - 16 NF x 11-5/8 (16747 mt'g)

2шт.

3

45784

ARTICULATED SHAFT

HHCS 3/4 - 16 NF x 1-3/4 (16747 mt'g)

2шт.

4

48452

X

LOCKWASHER - med. sec.

2шт.

5

17853

NUT

PIVOT BRACKET

2шт.

6

45791

X

HHCS 3/4 - 16 NF x 3-1/2 (17853 to 20187 mt'g)

4шт.

7

48452

X

LOCKWASHER - med. sec.

4шт.

8

48107

X

HEX NUT - reg. SF

4шт.

9

20187

"A" FRAME ASS'Y

1шт.

10

17134

RETAINING WASHER

2шт.

11

48452

X

LOCKWASHER - med. sec.

2шт.

12

45782

HHCS 3/4 - 16 NF x 1-1/4 (17853 mt'g)

2шт.

13

33961

CONNECTING LINK

RUB PLATE

2шт.

14

46495

SHIFTING UNIT

HHMB 3/4 - 16 NF x 11-5/8 (33961 mt'g)

4шт.

15

20186

BLADE ASS'Y - angle dozer

1шт.

16

16720

SHROUD

PIN ASS'Y (20186 mt'g)

2шт.

17

17808

X

CUTTING BLADE - center

1шт.

18

NLS

NO LONGER SERVICED

CUTTING BLADE - end

2шт.

19

46711

HOLDER

PLOW BOLT 1/2 - 13 NC x 2 (17808 & 16187 mt'g)

20шт.

20

48448

X

LOCKWASHER - med. sec.

20шт.

21

47804

HEX NUT - reg. SF

20шт.

23

20182

STABILIZER ARM ASS'Y - RH

1шт.

24

20183

PIN

STABILIZER ARM ASS'Y - LH

1шт.

25

16720

SHROUD

PIN ASS'Y (20182 & 20183 mt'g)

2шт.

26

16569

BACK PLATE

PIN ASS'Y (20182 & 20183 mt'g)

2шт.

27

20178

SUPPORT ARM ASS'Y (Used only when angling blade)

1шт.

28

16720

SHROUD

PIN ASS'Y (20178 mt'g)

1шт.

29

33676

DRAWBAR SUPPORT

SPRING LOCKOUT ASS'Y

2шт.
