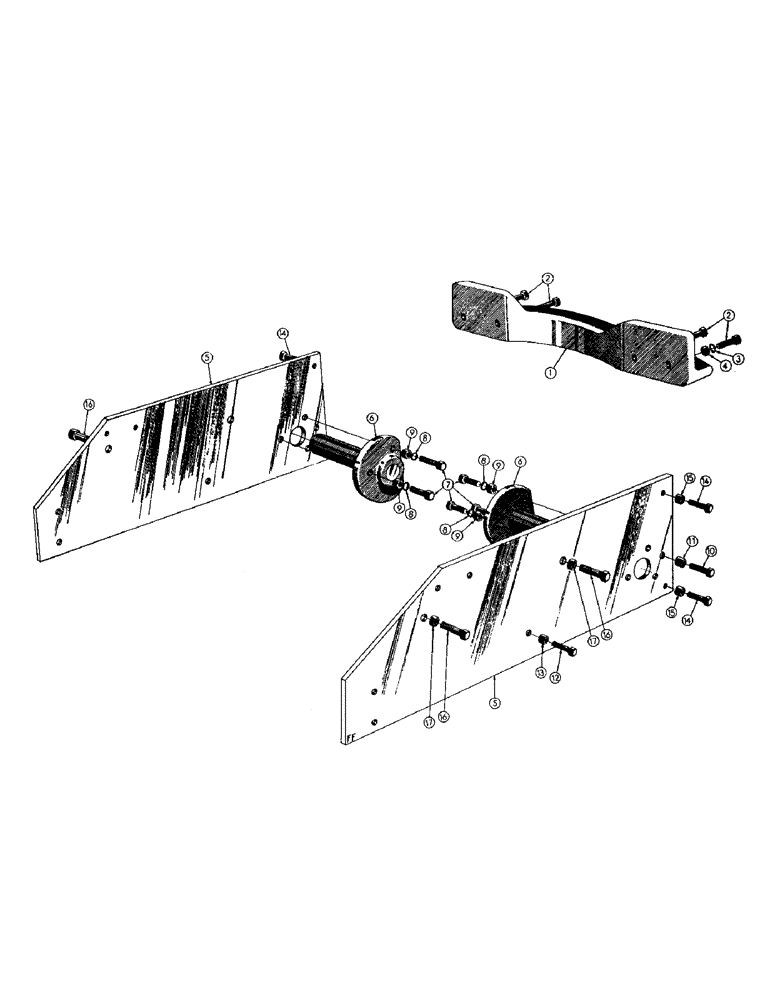

Запчасти Case 256 (064) - SIDE PLATE, PIVOT BAR, & DRAWBAR GUIDE (05) - UPPERSTRUCTURE CHASSIS

1

32419

DRAWBAR GUIDE ASS'Y

1шт.

2

45760

HHCS 5/8 - 18 NF x 2 (32419 mt'g)

4шт.

3

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

4шт.

4

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.F.

4шт.

5

33110

HYDRAULIC VALVE

SIDE PLATE

2шт.

6

33067

BELT

PIVOT BAR ASS'Y

2шт.

7

45787

X

HHCS 3/4 - 16 NF x 2-1/2 (33067 mt'g)

6шт.

8

48452

X

LOCKWASHER - med. sec.

6шт.

9

48107

X

HEX NUT - reg. S.F.

6шт.

10

45762

X

HHCS 5/8 - 18 NF x 2-1/2 (33110 mt'g)

2шт.

11

11934

O-RING

HI NUT

2шт.

12

45788

HHCS 3/4 - 16 NF x 2-3/4 (33110 mt'g)

2шт.

13

11935

O-RING

HI NUT

2шт.

14

33046

BODY FIT BOLT (33110 mt'g)

4шт.

15

11934

O-RING

HI NUT

4шт.

16

33047

BOLT,Hex, 1" - 14 x 3 3/32"

BODY FIT BOLT (33110 mt'g)

4шт.

17

11937

O-RING

HI NUT

4шт.
