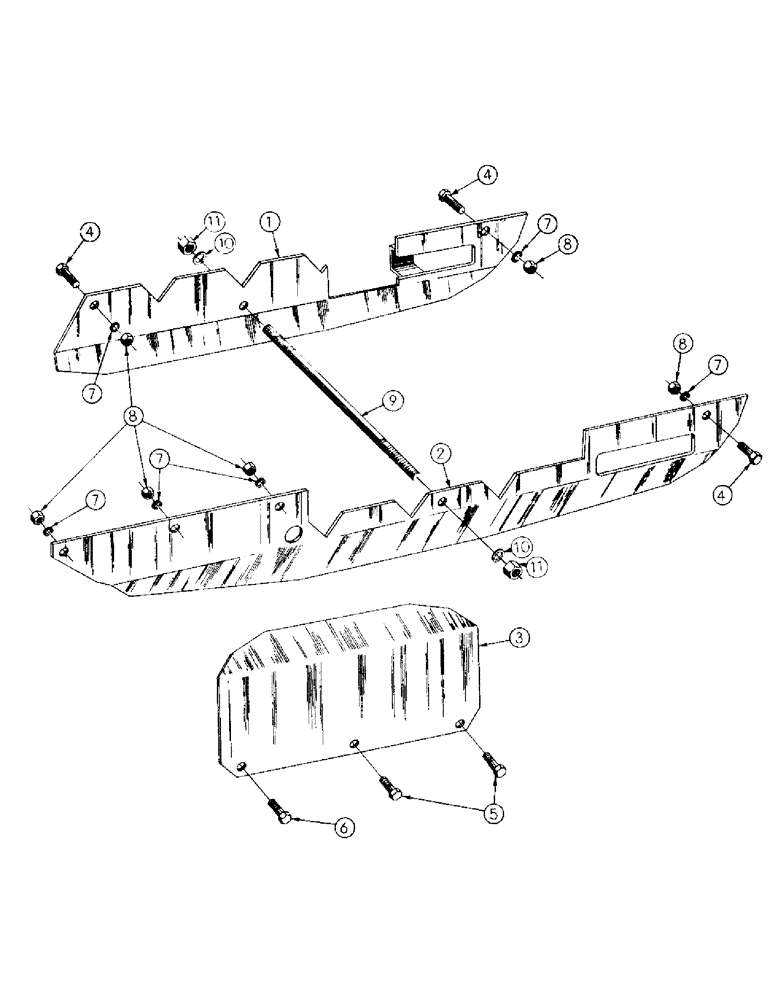

Запчасти Case 256 (050) - ROCK GUARD INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

ROCK GUARD INSTALLATION

1шт.

1

32266

ROCK GUARD ASS'Y - inner RH

1шт.

32267

ROCK GUARD ASS'Y - inner LH

1шт.

2

32264

ROCK GUARD ASS'Y - outer RH

1шт.

32265

ROCK GUARD ASS'Y - outer LH

1шт.

3

32296

ATTACHING PLATE

2шт.

4

45708

X

HHCS 1/2 - 20 NF x 1-1/2 (32266 - 32267 & 32264 - 32265 mt'g.)

6шт.

5

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (32296 mt'g)

4шт.

6

45709

CLIP

HHCS 1/2 - 20 NF x 1-3/4 (32296 mt'g)

2шт.

7

48448

X

LOCKWSHER - med. sec.

12шт.

8

48104

PISTON

HEX NUT - reg. SF (1/2 - 20 NF)

12шт.

9

32271

STUD BOLT 1/2 - 20 NF

2шт.

10

48448

X

LOCKWASHER - med. sec.

4шт.

11

48104

PISTON

HEX NUT - reg. SF (1/2 - 20NF)

4шт.
