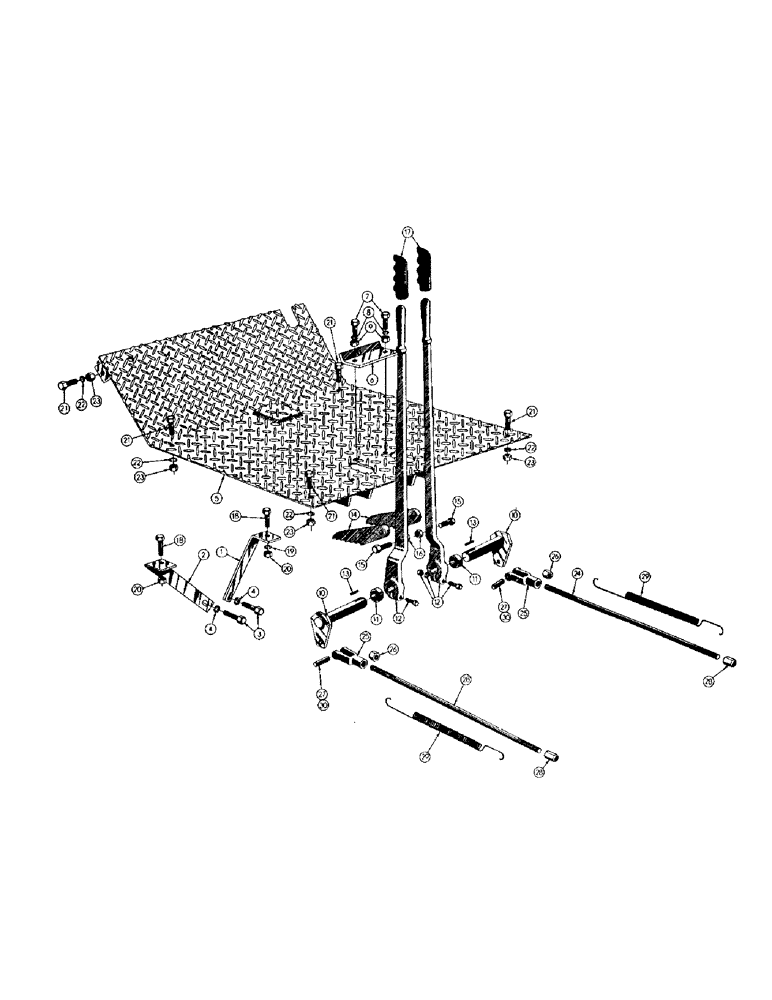

Запчасти Case 256 (034) - FLOOR PLATE & STEERING (05) - UPPERSTRUCTURE CHASSIS

1

33605

EXHAUST MANIFOLD

BRACE - floor plate - RH

1шт.

2

33606

BRACE - floor plate - LH

1шт.

3

45156

HHCS 5/8 - 11 NC x 1 (33605 & 33606 mt'g)

2шт.

4

48450

FRONT AXLE

LOCKWASHER - med. sec.

2шт.

5

33595

BRAKE DRUM

FLOOR PLATE ASS'Y

1шт.

6

33598

RATCHET PLATE

1шт.

7

45707

FLANGE

HHCS 1/2 - 20 NF x 1-1/4 (33598 mt'g)

2шт.

8

48448

X

LOCKWASHER - med. sec.

2шт.

9

48104

PISTON

HEX NUT - reg. S.F.

2шт.

10

A33600

DECAL

BRAKE SHAFT & LEVER ASS'Y

2шт.

11

33603

FLEXIBLE HOSE

SPACER - brake shaft

2шт.

12

31387

BRAKE LEVER ASS'Y

2шт.

13

48816

SQUARE KEY

2шт.

14

33604

RATCHET

- brake lever

2шт.

15

45658

HHCS 3/8 - 24 NF x 1-1/2 (33604 mt'g)

2шт.

16

48192

HEX JAM NUT - reg. S.F.

2шт.

17

31400

CLAMP

RUBBER GRIP

2шт.

18

45656

X

HHCS 3/8 - 24 NF x 1 (33595 mt'g)

2шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

20

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

21

45656

X

HHCS 3/8 - 24 NF x 1 (33595 mt'g)

6шт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

23

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

6шт.

24

31386

STEERING ROD

1шт.

25

48603

X

ADJUSTABLE YOKE END

1шт.

26

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

1шт.

27

1337984C1

FORK

YOKE PIN - S.A.E. standard

2шт.

28

11471

NUT

- steering rod

2шт.

29

11469

SPRING

- brake lever return

2шт.

30

48693

COTTER PIN - 1/8 dia. x 3/4

2шт.
