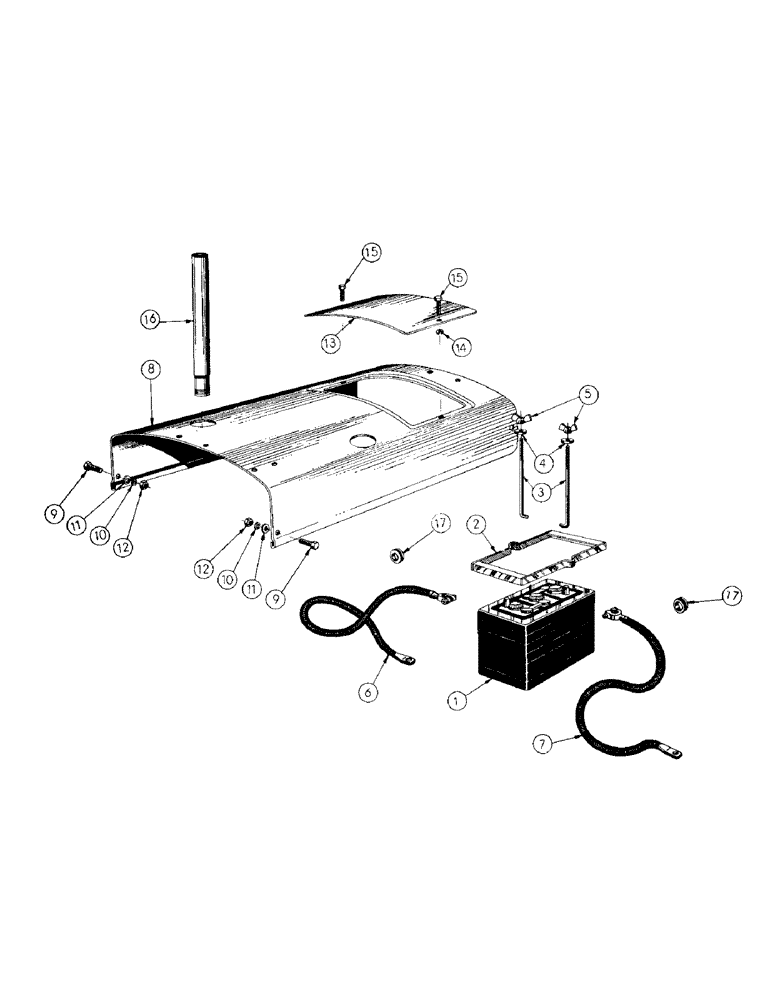

Запчасти Case 256 (031) - HOOD, BATTERY, & RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

30870

BATTERY

1шт.

2

33545

HOLD DOWN BRACKET - battery

1шт.

3

33547

ANGLE BOLT (33545 mt'g)

2шт.

4

48405

X

PLAINWASHER

2шт.

5

48056

WING NUT (5/16 - 18 NC)

2шт.

6

30875

CABLE -, Serial Range: battery-ground

1шт.

7

30875

CABLE -, Serial Range: battery-starter

1шт.

8

NLS

NO LONGER SERVICED

HOOD - engine

1шт.

9

45654

X

HHCS 3/8 - 24NF x 3/4 (33524 mt'g)

10шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

11

48405

X

PLAINWASHER

10шт.

12

48102

MOUNTING PARTS

HEX NUT - reg. SF

10шт.

13

GI33522

CLIP

LID - battery inspection

1шт.

14

48444

GUIDE

LOCKWASHER - med. sec.

2шт.

15

45602

ROLLER

HHCS 1/4 - 28NF x 1/2 (33522 mt'g)

2шт.

16

10933

HOSE

EXHAUST PIPE ASS'Y

1шт.

17

49561

GROMMET,1/4" ID x 7/16" Groove Dia

RUBBER GROMMET

2шт.
