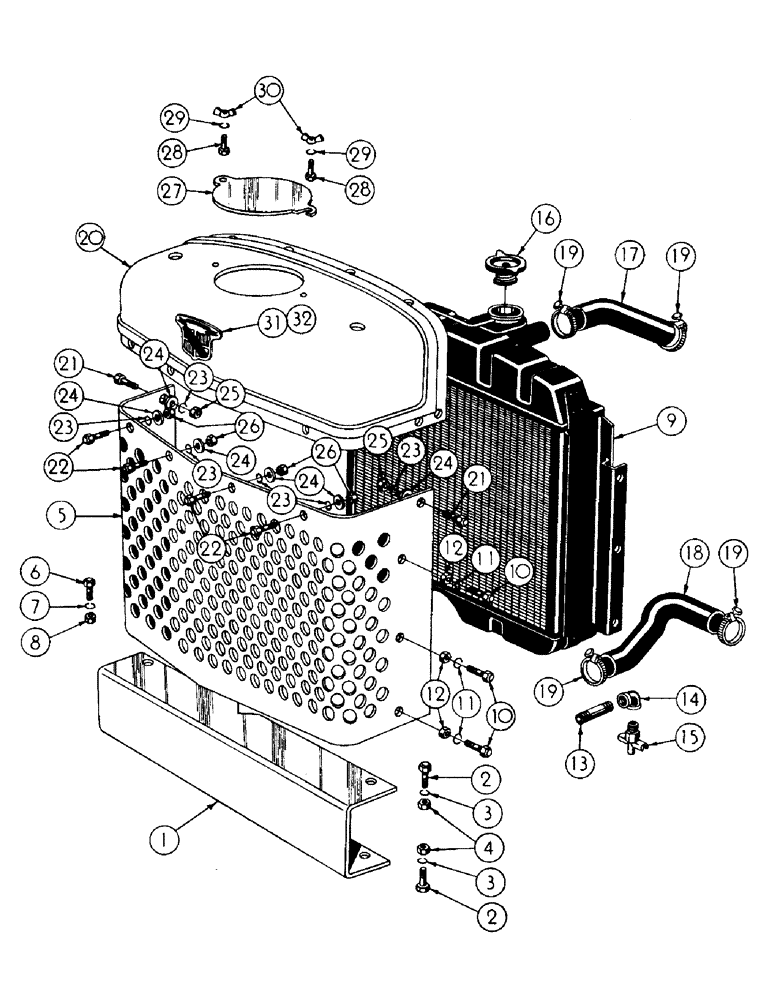

Запчасти Case 256 (028) - RADIATOR, SHROUD, & BUMPER (05) - UPPERSTRUCTURE CHASSIS

1

15526

SPARE PART

FRONT BUMPER ASS'Y

1шт.

2

45707

FLANGE

HHCS 1/2 - 20 NF x 1-1/4 (15526 mt'g)

4шт.

3

48448

X

LOCKWASHER - med. sec.

4шт.

4

48104

PISTON

HEX NUT - reg. S.F.

4шт.

5

33308

CLAMP

WRAP AROUND ASS'Y

1шт.

6

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (33308 mt'g)

4шт.

7

48448

X

LOCKWASHER - med. sec.

4шт.

8

48104

PISTON

HEX NUT - reg. S.F.

4шт.

9

34965

RADIATOR ASS'Y

1шт.

10

45630

HHCS 5/16 - 24 NF x 7/8 (34965 mt'g)

6шт.

11

48445

LOCKWASHER - med. sec.

6шт.

12

48101

X

HEX NUT - reg. S.F.

6шт.

13

41475

X

PIPE NIPPLE - 1/4 NP x 2

1шт.

14

41903

FEMALE ELBOW 90 DEGREES - 1/4 NP

1шт.

15

41853

X

SPECIAL DRAINCOCK

1шт.

16

A11181

RADIATOR CAP

PRESSURE CAP - radiator

1шт.

17

30747

HOSE - radiator inlet

1шт.

18

30739

LINE,1.50" ID x 3.75", SAE 20R1

RADIATOR HOSE , Outlet 1.50" ID x 3.75", SAE 20R1

1шт.

19

49763

X

HOSE CLAMP

4шт.

20

30716

RADIATOR SHROUD CASTING

1шт.

21

45053

X

HHCS 3/8 - 16 NC x 5/8 (30716 mt'g)

2шт.

22

45656

X

HHCS 3/8 - 24 NF x 1 (30716 mt'g)

4шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

24

48406

X

PLAINWASHER

6шт.

25

425-146

JAM NUT,3/8" - 16, Gr 5

HEX JAM NUT - reg. S.F. (3/8 - 16 NC)

2шт.

26

48102

MOUNTING PARTS

HEX NUT - reg. S.F. (3/8 - 24 NF)

6шт.

27

10717

FITTING

COVER PLATE - shroud

1шт.

28

45029

X

HHCS 5/16 - 18 NC x 3/4 (10717 mt'g)

2шт.

29

48445

LOCKWASHER - med. sec.

2шт.

30

48056

WING NUT (5/16 - 18 NC)

2шт.

31

13767

SCREW

SHIELD PLATE

1шт.

32

47730

X

DRIVE SCREW

3шт.
