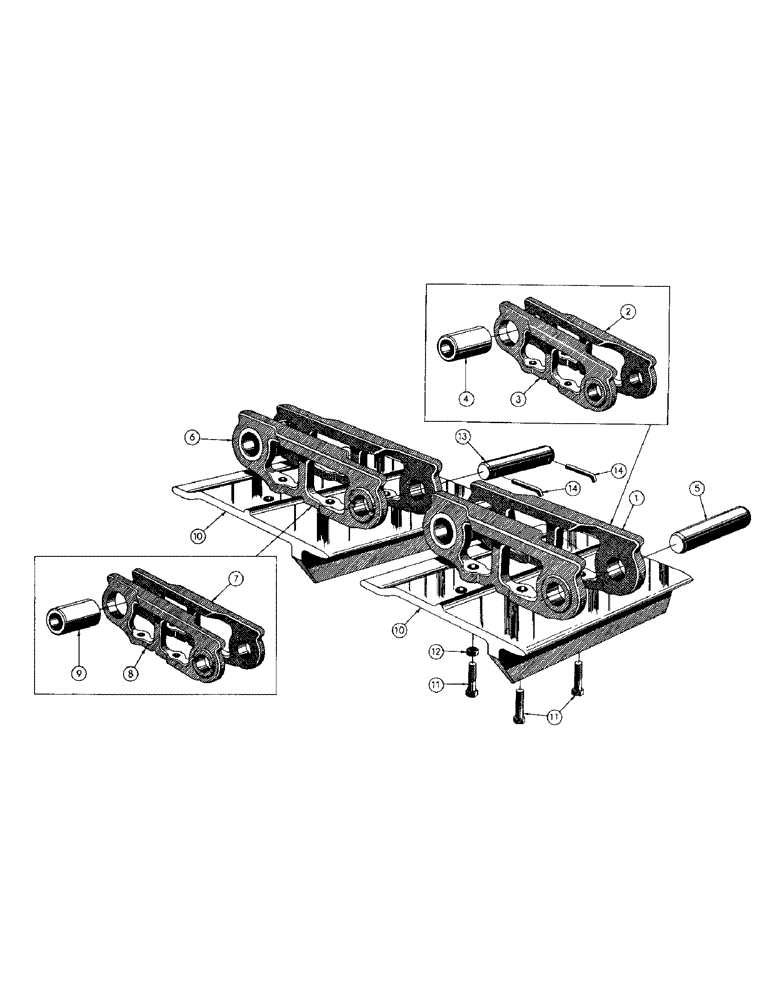

Запчасти Case 256 (054) - TRACK CHAIN INSTALLATION (04) - UNDERCARRIAGE

1

TRACK CHAIN ASS'Y (Inc. ref. # 2 thru 4) (Group no. 34589)

56шт.

2

30638

X

TRACK LINK - RH

1шт.

3

30639

LINK

TRACK LINK - LH

1шт.

4

32830

BUSHING

- track chain

1шт.

5

32836

PIN

- track

56шт.

6

TRACK CHAIN MASTER ASS'Y (Inc. ref. # 7 thru 9) (Group no. 34571)

4шт.

7

R41050

LINK

TRACK MASTER LINK - RH

1шт.

8

33286

LINK

TRACK MASTER LINK - LH

1шт.

9

NLS

NO LONGER SERVICED

- track chain

1шт.

10

32880

GUARD

TRACK GROUSER - 10 inch

60шт.

11

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS SPECIAL (32880 mt'g)

240шт.

12

48092

HIGH NUT

240шт.

13

32994

AXLE PIN

TRACK MASTER PIN

4шт.

14

CASCAS32995

LOCK - master pin

8шт.

5481

TRACK LINK SERVICE KIT (Consists of 14 # 34589 and 1 # 34571) (1-32994, 2-32995)

2шт.
