Запчасти Case 256 (053) - SUPPORT IDLER INSTALLATION (04) - UNDERCARRIAGE

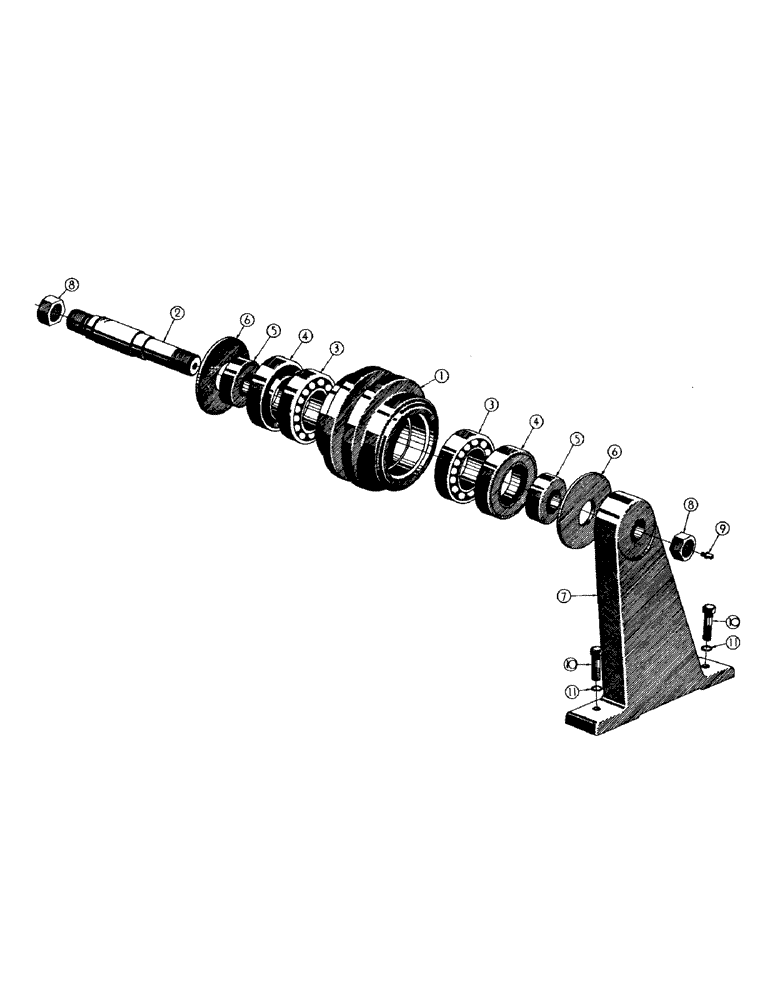

TRACK SUPPORT IDLER INSTALLATION (Inc. ref. # 1 thru 9) (Group no. 31165)

2шт.

1

31163

ROLLER

HUB ASS'Y - track support idler

1шт.

2

30707

SHAFT

- track support idler

1шт.

3

VT2893

X

BEARING ASS'Y

2шт.

4

40633

PLATE

2шт.

5

32051

SPACER

- support idler

2шт.

6

30704

BEARING COVER

- support idler

2шт.

7

30718

BRACKET

- idler support

1шт.

8

17585

X

LOCKNUT - (1 - 14 NF)

2шт.

9

49200

X

GREASE FITTING - straight - 1/8 NP

1шт.

10

45759

X

HHCS 5/8 - 18 NF x 1-3/4 (31165 mt'g.)

4шт.

11

48450

FRONT AXLE

LOCKWASHER - med. sec.

4шт.
