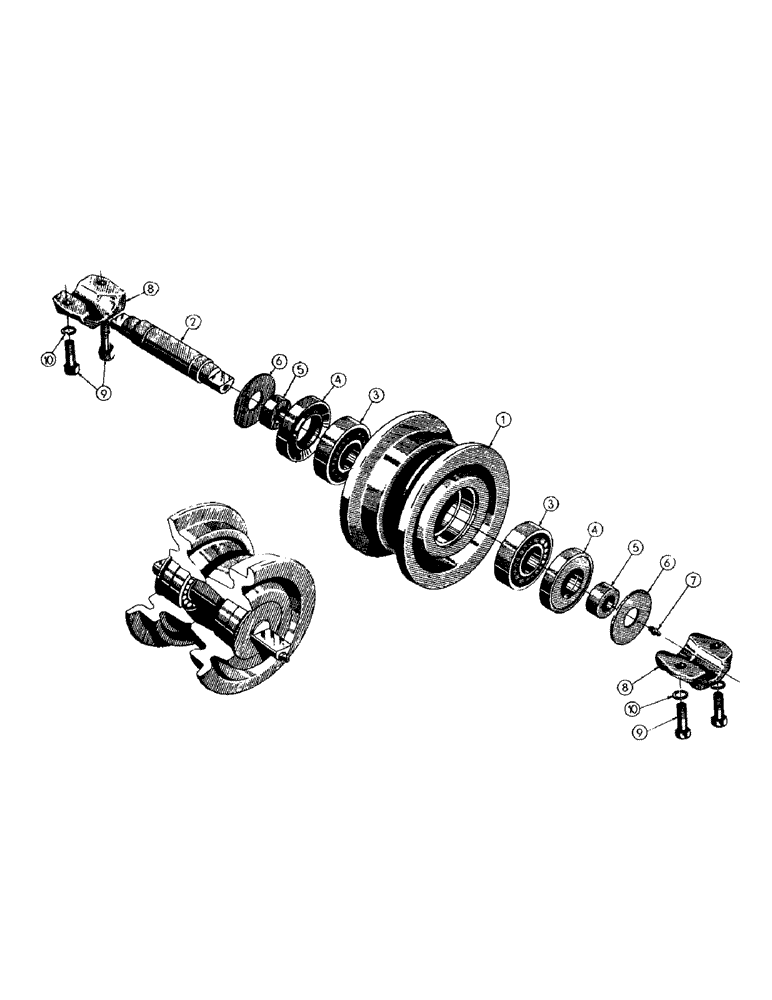

Запчасти Case 256 (052) - TRACK ROLLER INSTALLATION (04) - UNDERCARRIAGE

TRACK ROLLER INST. (Inc. ref. # 1 thru 7) (Group no. 32032)

6шт.

1

32076

BEARING, ROLLER

HUB ASS'Y - track roller

1шт.

2

32056

SHAFT

- track roller

1шт.

3

VT2893

X

BEARING ASS'Y

2шт.

4

D29138

OIL SEAL

2шт.

5

32051

SPACER

- track roller

2шт.

6

30704

BEARING COVER

- track roller

2шт.

7

49200

X

GREASE FITTING - straight - 1/8 NP

1шт.

8

32055

BOX

- track roller

12шт.

9

45708

X

HHCS 1/2 - 20 NF x 1-1/2 (32055 mt'g)

24шт.

10

48448

X

LOCKWASHER - med. sec.

24шт.
