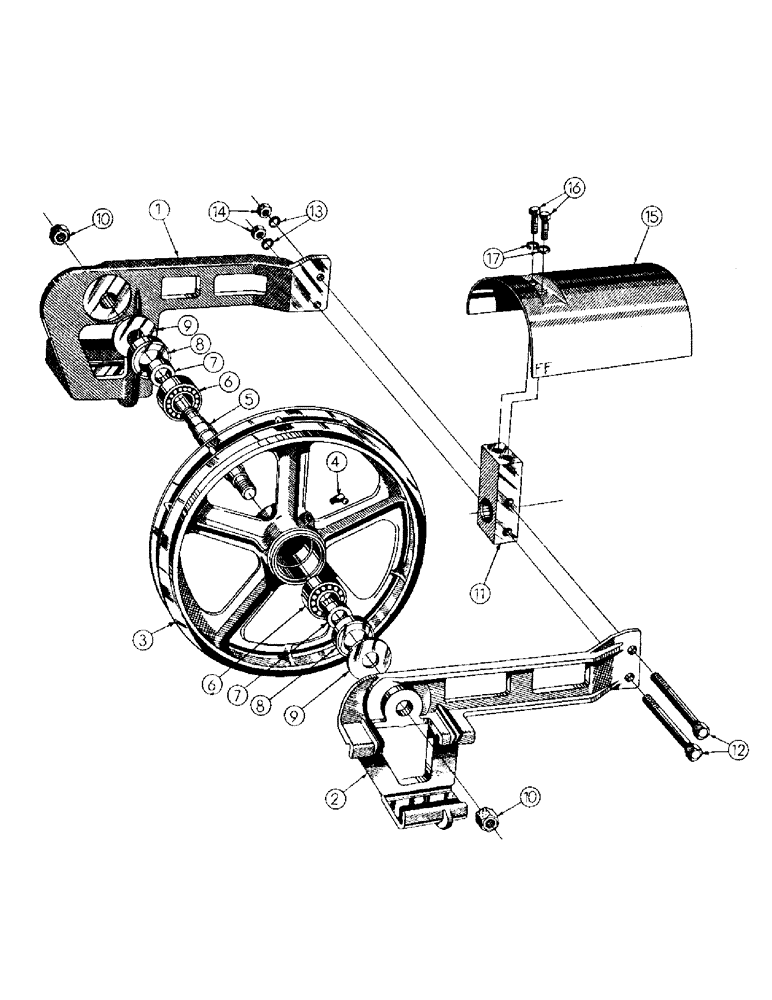

Запчасти Case 256 (051) - FRONT IDLER INSTALLATION (04) - UNDERCARRIAGE

1

32066

BRACKET - idler wheel - RH

1шт.

2

32067

BRACKET - idler wheel - LH

1шт.

3

32065

FRONT IDLER

HUB - idler wheel

1шт.

4

49230

X

GREASE FITTING - straight - 1/4 NP

1шт.

5

32068

SHAFT

- front idler

1шт.

6

VT2893

X

BEARING ASS'Y

2шт.

7

32051

SPACER

- front idler

2шт.

8

40633

PLATE

2шт.

9

30704

BEARING COVER

- front idler

2шт.

10

17585

X

LOCKNUT (1 - 14 NF)

2шт.

11

32069

SPACER BLOCK

1шт.

12

45716

X

HHCS 1/2 - 20 NF x 3-1/2 (32069 mt'g.)

2шт.

13

48448

X

LOCKWASHER - med. sec.

2шт.

14

48104

PISTON

HEX NUT - reg. SF (1/2 - 20 NF)

2шт.

15

32074

SHIELD

SLIDING SHIELD

2шт.

16

45652

SPARE PART

HHCS 3/8 - 24 NF x 1/2 (32074 mt'g.)

4шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.
