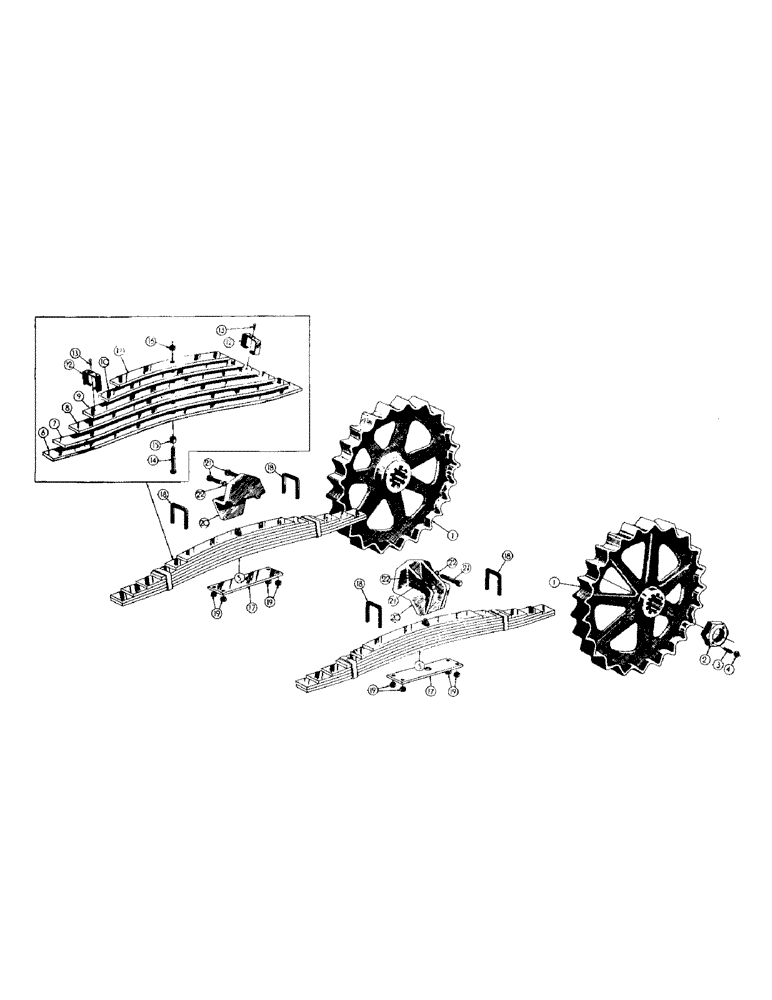

Запчасти Case 256 (047) - SPROCKET & LEAF SPRING INSTALLATION (04) - UNDERCARRIAGE

1

NLS

NO LONGER SERVICED

SPROCKET - final drive

2шт.

2

11851

LOCK NUT

LOCKNUT - final drive sprocket

2шт.

3

47301

X

SET SCREW - Allen head 3/8 - 16 NC x 1

4шт.

4

47802

BUTTON

HEX NUT - reg. SF (3/8 - 16 NC)

4шт.

5

LEAF SPRING ASS'Y. (Inc. ref. #6 thru 16) (Group no. 31134)

2шт.

6

33117

LEAF - 5/16 x 1-3/4 x 29-1/4

1шт.

7

33117

LEAF - 5/16 x 1-3/4 x 29-1/4

1шт.

8

33118

LEAF - 5/16 x 1-3/4 x 26-1/2

1шт.

9

33119

SPRING

LEAF - 5/16 x 1-3/4 x 22-1/2

1шт.

10

33120

NEEDLE BEARING

LEAF - 5/16 x 1-3/4 x 17-3/4

1шт.

11

33121

LEAF - 5/16 x 1-3/4 x 13

1шт.

12

33123

PIN

CLIP - leaf spring

2шт.

13

33124

PLUG

RIVET

2шт.

14

33125

SCREW

ROUND HEAD BOLT 5/16 - 24 NF x 3-1/21

1шт.

15

33179

SPARE PART

SPACER

1шт.

16

33127

X

HEX NUT (5/16 - 24 NF)

1шт.

17

34559

PLATE - leaf spring

2шт.

18

NLS

NO LONGER SERVICED

"U" BOLT - leaf spring

4шт.

19

48901

DRIVEN SPROCKET

LOCKNUT (3/8 - 24 NF)

8шт.

20

NLS

NO LONGER SERVICED

BRACKET - leaf spring retaining

2шт.

21

45758

SPACER

HHCS 5/8 - 18 NF x 1-1/2 (33094 mt'g)

4шт.

22

48450

FRONT AXLE

LOCKWASHER - med. sec.

4шт.
