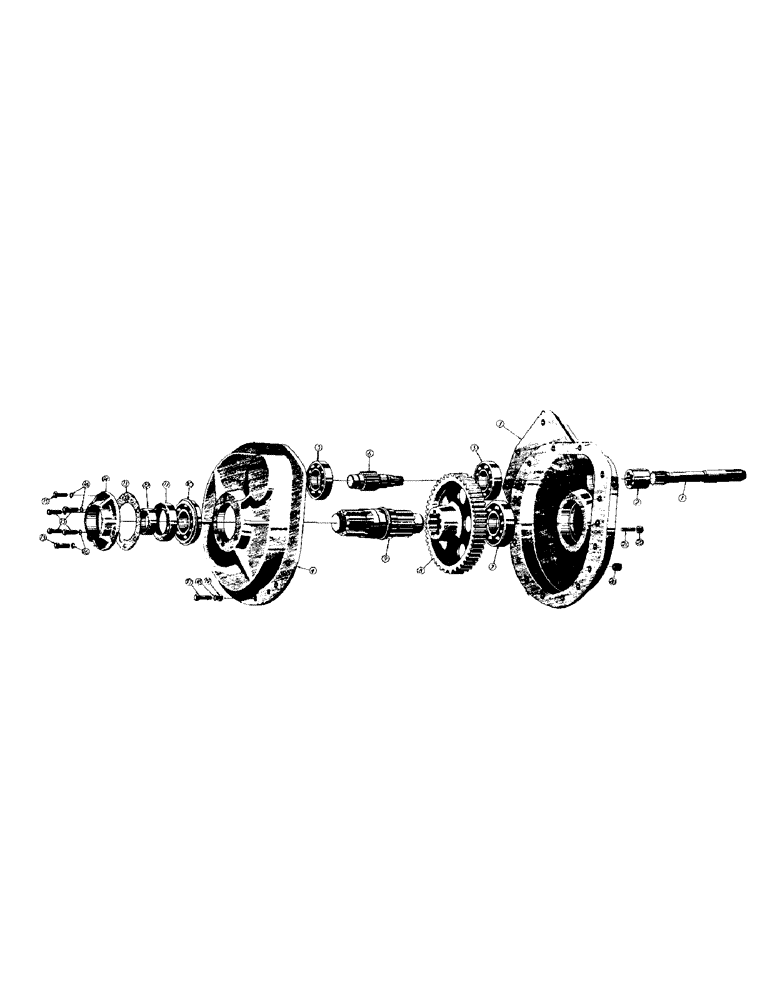

Запчасти Case 256 (046) - AXLE SHAFT AND FINAL DRIVE INSTALLATION (03) - TRANSMISSION

1

11845-42

AXLE SHAFT - final drive 42" gauge

2шт.

11845-48

AXLE SHAFT - final drive 48" gauge

2шт.

11845-60

AXLE SHAFT - final drive 60" gauge

2шт.

11845-72

AXLE SHAFT - final drive 72" gauge

2шт.

2

51200026

COUPLING

- final drive

2шт.

3

11816

RIVET

INNER HOUSING - final drive - RH

1шт.

11817

RIVET

INNER HOUSING - final drive - LH

1шт.

4

NLS

NO LONGER SERVICED

OUTER HOUSING - final drive

1шт.

5

40002

BALL BEARING

- final drive pinion

2шт.

6

51200027

SHAFT

PINION - final drive

1шт.

7

40003

BEARING

- final drive shaft - inner

1шт.

8

CAS11833

GEAR WHEEL

GEAR - final drive

1шт.

9

CAS11853

SHAFT

- final drive

1шт.

10

40017

X

BEARING - final drive shaft - outer

1шт.

11

40610

TUBE NUT

OIL SEAL - final drive shaft

1шт.

12

51200024

SPACER

- final drive shaft

1шт.

13

CAS11828

GASKET

- seal retainer

1шт.

14

11827

RETAINER

SEAL RETAINER - final drive shaft

1шт.

15

45057

X

HHCS 3/8 - 16 NC x 1-1/4 (11827 mt'g)

6шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

17

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

HHCS 7/16 - 20 NF x 1-5/8, Serial Range: (11823-11816-11817)

12шт.

45687

HHCS 7/16 - 20 NF x 2-1/2, Serial Range: (11823-11816-11817)

5шт.

18

48447

X

LOCKWASHER - med. sec.

17шт.

19

48103

MOUNTING PARTS

HEX NUT - reg. SF (7/16 - 20 NF)

17шт.

20

41838

PIPE PLUG - cts'k. head - 1/2 NP

1шт.

21

R29874

STUD

(11808 & 11809 mt'g)

8шт.

22

11934

O-RING

HI NUT (5/8 - 18 NF)

8шт.
