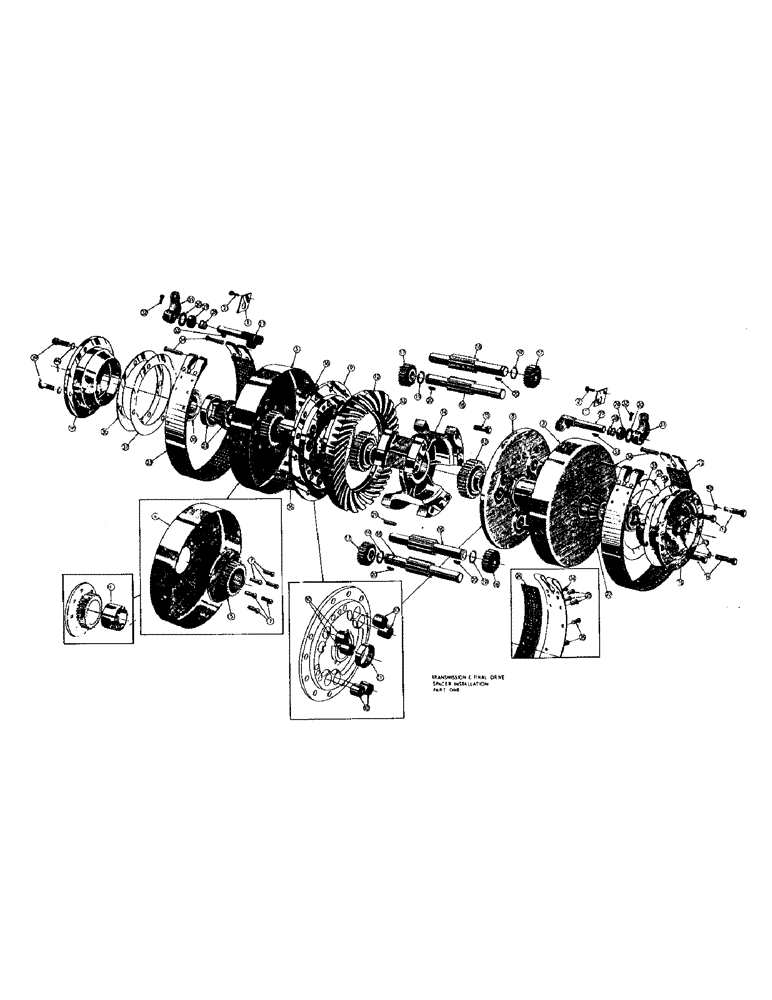

Запчасти Case 256 (040) - TRANSMISSION & FINAL DRIVE (03) - TRANSMISSION

1

11470

BEARING

SPRING ANCHOR

2шт.

2

45131

HHCS 9/16 - 12 NC x 1 (11470 mt'g)

2шт.

48449

X

LOCKWASHER - med. sec.

2шт.

TRANMISSION & DIFFERENTIAL INST. (Inc. ref. # 3 thru 102) (Group no. 11350)

1шт.

DIFF. & DRUM INST. (Inc. ref. # 3 thru 22) (Group no. 11285)

1шт.

3

11286

GEAR

BRAKE DRUM, GEAR & BUSHING ASSY (Inc. ref. # 4 thru 7)

2шт.

4

11408

DRUM

BRAKE DRUM

1шт.

5

A11287

TUBE

GEAR & BUSHING ASS'Y (Inc. ref. #6)

1шт.

6

11288

BEARING

BUSHING - brake drum gear

1шт.

7

11409

HARNESS

RIVET - brake drum

8шт.

8

NLS

NO LONGER SERVICED

DIFF. HOUSING ASSY RH (Inc. ref. # 10 & 11)

1шт.

9

11410

DIFF. HOUSING ASSY LH (Inc. ref. # 10 & 11)

1шт.

10

CASCASCAS11414

BUSHING - planet pin

6шт.

11

11415

BEARING

BUSHING - axle shaft gear

1шт.

12

R25584

GEAR WHEEL

RING GEAR

1шт.

13

11420

X

GEAR - axle shaft

2шт.

14

11423

X

HOUSING CENTER MEMBER

1шт.

15

CAS11424

SCREW

- diff. center member

12шт.

11416

X

LOCKWIRE - center member screw

6шт.

16

NLS

NO LONGER SERVICED

SCREW - ring gear

12шт.

NLS

NO LONGER SERVICED

LOCKWIRE - center member screw

1шт.

17

D20421

PLANETARY GEAR

PLANET GEAR

6шт.

18

11419

X

PLANET PINION

6шт.

19

11455

RING, SNAP

SNAP RING - planet gear

6шт.

20

48759

X

KEY - planet gear - #9 size

6шт.

21

CAS11422

DOWEL

- diff. center member

6шт.

22

VT2100

X

CUP - diff. bearing (25520)

2шт.

22

40465

ROLLER BEARING,1.75" ID x 1"

CONE - diff. bearing (25581)

2шт.

23

11434

BRAKE BAND & LINING ASS'Y (Inc. ref. # 24 thru 26)

2шт.

24

11435

BEARING

LINING - brake band

1шт.

25

11436

X

RIVET - brake band lining

18шт.

26

11437

SCREEN

RIVET - brake band

6шт.

27

80080011438

CAM - brake band

2шт.

28

11439

SPRING

- brake cam

2шт.

29

VT4443

X

OIL SEAL - diff. brake cam

2шт.

30

11440

WASHER

- brake cam

2шт.

31

11441

BOOM

OUTSIDE BRAKE LEVER

2шт.

32

11433

X

SCREW - adj. arm & end fork

2шт.

33

48760

X

KEY - brake cam - # 11 size

2шт.

34

11432

BEARING

PIN BRAKE BAND TO CAM

4шт.

280250

COTTER PIN,3/32" OD x 3/4" L

- 3/32 dia. x 3/4 (Brake cam)

4шт.

35

11430

OIL SEAL

- differential

2шт.

36

11425

CARRIER

BEARING CARRIER - diff.

2шт.

37

CAS11426

SHIM

- diff. bearing carrier (.010)

1шт.

38

CAS11427

SHIM

- diff. bearing carrier (.005)

2шт.

39

45107

SCREW

HHCS 1/2 - 13 NC x 1-1/4 (11425 mt'g)

8шт.

40

48448

X

LOCKWASHER - med. sec.

8шт.

41

11361

BALL BEARING

TRANSMISSION CASE ASSY. (Inc. ref. 42)

1шт.

42

11451

RING, SNAP

SNAP RING - c/s rear bearing

1шт.

41823

PLUG - trans. case drain & oil level (Not shown)

3шт.

43

41825

PLUG - trans. case filler

1шт.

44

D33873

MAIN SHAFT

1шт.

45

11371

CUP ASSY.

OIL CUP - m/s rear bearing

1шт.

46

11453

TAPERED BEARING

SNAP RING - m/s rear bearing

1шт.

47

40381

X

CUP - rear m/s bearing

1шт.

VT3404

X

CONE - rear m/s bearing

1шт.

48

11363

BALL BEARING

GEAR - m/s low & reverse

1шт.

49

35130

SPACER

- m/s gear

1шт.

50

11365

GEAR

- m/s 2nd speed

1шт.

51

11366

GEAR

- m/s constant mesh

1шт.

52

VT2111

X

SNAP RING - m/s replaces 11452

1шт.

53

40381

X

CUP - front m/s bearing

1шт.

VT3404

X

CONE - rear m/s bearing

1шт.

54

51200023

GASKET

- m/s front bearing cap

1шт.

55

11367

SHIM

- m/s front bearing

1шт.

56

11368

SHIM

- m/s front bearing

1шт.

57

11369

X

CAP & OIL SEAL ASSY. (Inc. ref. #59)

1шт.

58

23016

CAP

HHCS & LOCKWASHER (3/8 - 16 NC x 1)

3шт.

59

11370

OIL RESERVOIR

OIL SEAL - m/s front bearing

1шт.

60

R25584

GEAR WHEEL

COUNTERSHAFT & BEVEL PINION

1шт.

61

40384

ROLLER BEARING

CONE - rear c/s bearing

1шт.

CAS40385

BEARING

CUP - rear c/s bearing

1шт.

62

11373

BALL BEARING

- c/s 1st & reverse

1шт.

63

11374

GEAR

- sliding - 2nd and 3rd

1шт.

63

11374GV

DISC

- sliding - 2nd and 3rd

1шт.

64

11375

GEAR

3RD GEAR & BUSHING ASSY. (Inc. ref. #65)

1шт.

65

11376

BUSHING

- c/s 3rd gear

1шт.

66

101-21250

SNAP RING,#250, 2.673", Int

- c/s front bearing

1шт.

67

11378

BELLEVILLE WASHER

RETAINING WASHER - c/s 3rd gear

1шт.

68

11377

X

SPRING WASHER - c/s 3rd gear retaining

1шт.

69

40381

X

CUP - front c/s bearing

1шт.

W9651S

CUP ASSY.

CONE - front c/s bearing

1шт.

70

11380

NUT

ADJUSTING NUT - c/s front bearing

1шт.

71

51200023

GASKET

- c/s front bearing cap

1шт.

72

11381

CAP

- c/s front bearing

1шт.

73

CAS11447

BOLT

HHCS & LOCKWASHER

3шт.

74

34592

SHAFT

ASSY. - reverse idler (Inc. ref. #80)

1шт.

75

11450

TAPERED BEARING

BEARING - reverse idler

2шт.

76

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

77

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

78

45053

X

LOCK SCREW - reverse idler shaft (3/8 x 16 NC - 5/8)

1шт.

79

48526

X

LOCKWASHER - reverse idler shaft

1шт.

80

34594

X

SPECIAL PIPE PLUG - reverse idler shaft

1шт.

81

11396

ROD

SHIFT ROD - 1st & reverse

1шт.

82

11397

ROD

SHIFT ROD - 2nd & 3rd

1шт.

83

11398

PIN

LOCK PIN - shift rod - short

1шт.

84

11399

PIN

LOCK PIN - shift rod - long

1шт.

85

11400

FORK TEDDER

SHIFT FORK - 1st & reverse

1шт.

86

NLS

NO LONGER SERVICED

SHIFT FORK - 2nd & 3rd

1шт.

87

11403

SPRING

- mesh lock

2шт.

88

VT4913

X

BALL - mesh lock

2шт.

89

11456

SPACER - 1st & reverse shift fork

1шт.

90

11387

BALL BEARING

CONTROL COVER & GUIDE ASSY. (Inc. ref. # 91 & 92)

1шт.

91

11389

PLATE

GUIDE PLATE

1шт.

92

11390

X

RIVET - shift lever guide plate

2шт.

93

11391

GASKET

- control, Serial Range: cover-case

1шт.

94

45055

X

HHCS 3/8 - 16 NC x 7/8

4шт.

95

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

96

CASCAS11393

PIVOT WASHER - gear shift lever

1шт.

97

11454

RING, SNAP

SNAP RING - gear shift lever

1шт.

98

35129

GEAR SHIFT LEVER

1шт.

99

31365

PIN

STAKE PIN - gear shift lever

1шт.

100

VT2017

X

DUST COVER - gear shift lever

1шт.

101

03501AB

KNOB - gear shift lever

1шт.

102

11429

GASKET

- diff. housing cover plate

1шт.

103

D21185

PLATE

COVER PLATE - diff. housing

1шт.

104

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

HHCS 7/16-14 NC x 1-1/4 (32258 mtg)

11шт.

105

48447

X

LOCKWASHER - med. sec.

11шт.

106

11977

ACCUMULATOR

SPACER - R.H. final drive 42" g. trac.

1шт.

NLS

NO LONGER SERVICED

SPACER - R.H. final drive 48" g. trac.

1шт.

11970

LARGE PLATE

SPACER - R.H. final drive 60" g. trac.

1шт.

11974

O-RING

SPACER - R.H. final drive 72" g. trac.

1шт.

34918

SPACER - R.H. final drive 48" gauge backhoe tr.

1шт.

107

11978

PULLER

SPACER - L.H. final drive 42" g. trac.

1шт.

NLS

NO LONGER SERVICED

SPACER - L.H. final drive 48" g. trac.

1шт.

11971

O-RING

SPACER - L.H. final drive 60" g. trac.

1шт.

11975

FITTING

SPACER - L.H. final drive 72" g. trac.

1шт.

34919

SPACER - L.H. final drive 48" gauge backhoe tr.

1шт.

32369

SEAL

- flange to transmission (Not shown)

2шт.

108

46505

STUD

- 9/16 x 2-1/2 (11350 mt'g)

12шт.

109

11933

GASKET

HI NUT - Gripco

12шт.

110

45131

HHCS 9/16-12 NC x 1 top plug

4шт.

111

280319

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5, Full Thd

HHCS 5/8-11 NC x 1-1/4 front plug

1шт.

112

45182

X

HHCS 3/4-10 NC x 1-1/4 side plug

4шт.

113

45759

X

HHCS 5/8-18 NF x 1-3/4 (11977 & 11978 mt'g)

8шт.

114

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

8шт.

115

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - rg. S.F.

8шт.

100-1387

SNAP RING,#87, Ext

"O" RING SEAL - f/d outer flange (Not shown)

2шт.

116

A11287

TUBE

GEAR & BUSHING ASS'Y (Inc. ref. #6)

1шт.
