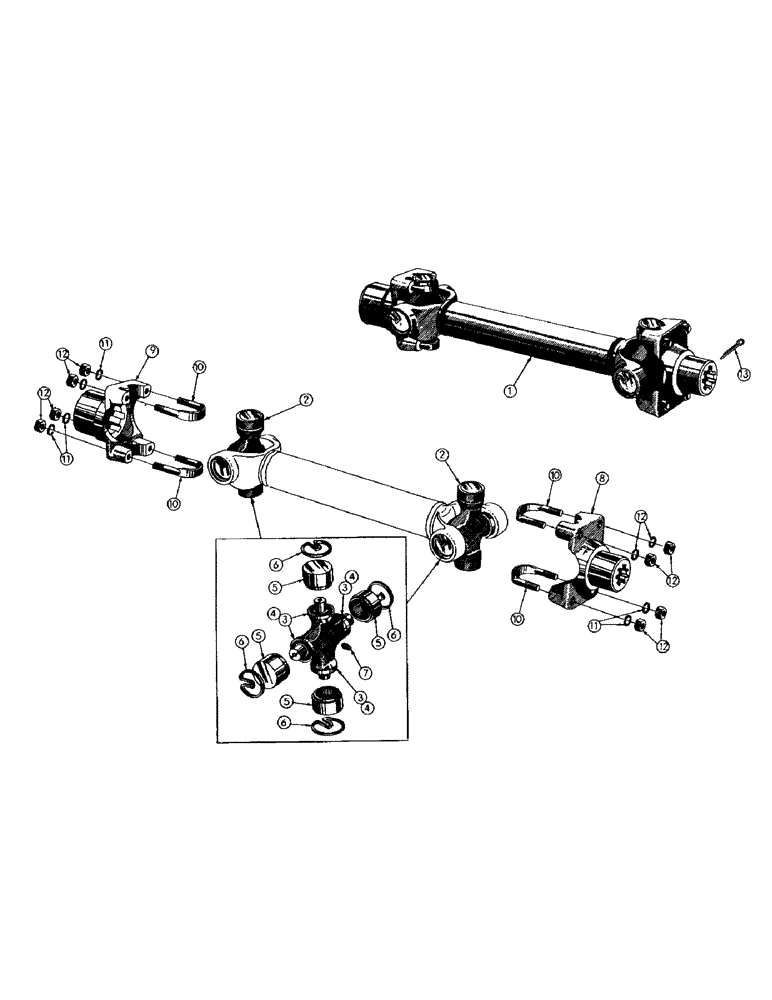

Запчасти Case 256 (039) - UNIVERSAL SHAFT INSTALLATION (03) - TRANSMISSION

1

UNIVERSAL SHAFT INST. (Inc. ref. # 2 thru 12) (Group no. 11250-1)

1шт.

2

JOURNAL & BEARING KIT (Inc. ref. # 3 thru 7) (Group no. 11270)

2шт.

3

11271

RETAINER - journal gasket

4шт.

4

11272

GASKET - journal

4шт.

5

11257

ROLLER BEARING

BEARING ASSY - journal

4шт.

6

11256

SNAP RING

SNAP RING - journal

4шт.

7

49260

GREASE FITTING - straight 1/4 - 28 NF

1шт.

8

11259

FORK

END YOKE - rear

1шт.

9

11258

YOKE

END YOKE - front

1шт.

10

11260

U - BOLT

4шт.

11

48445

LOCKWASHER - med. sec.

8шт.

12

48161

HEX NUT - light SF

8шт.

13

48714

PORTABLE LAMP

COTTER PIN - 5/32 dia. x 2-1/2

1шт.
