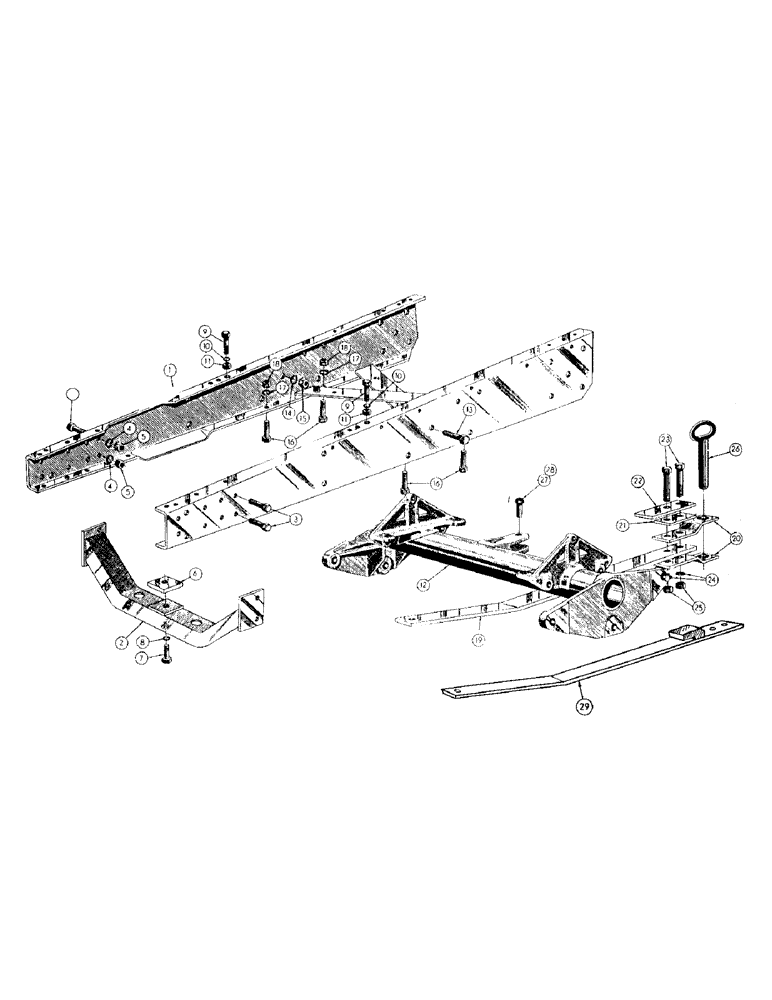

Запчасти Case 256 (062) - ENGINE FRAME, TORQUE TUBE, & DRAWBAR (01) - ENGINE

1

15521

BAR

ENGINE FRAME ASS'Y.

1шт.

2

30470

FRONT ENGINE SUPPORT ASS'Y.

1шт.

3

45708

X

HHCS 1/2 - 20 NF x 1-1/2 (30470 mt'g.)

4шт.

4

48448

X

LOCKWASHER - med. sec.

4шт.

5

48104

PISTON

HEX. NUT - reg. S.F.

4шт.

6

30474

SPACER - engine mt'g.

1шт.

7

NLS

NO LONGER SERVICED

HHCS 5/8 - 11 NC x 1-3/4 (Engine mt'g. front)

1шт.

8

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

1шт.

9

45708

X

HHCS 1/2 - 20 NF x 1-1/2 (Engine mt'g rear)

2шт.

10

48448

X

LOCKWASHER - med. sec.

2шт.

11

48104

PISTON

HEX. NUT - reg. S.F.

2шт.

12

30814

SEAL

TUBE - torque 42" gauge tractor

1шт.

D95063

TUBE

TUBE - torque 48" gauge tractor

1шт.

30817

X

TUBE - torque 60" gauge tractor

1шт.

30819

TUBE - torque 72" gauge tractor

1шт.

13

45759

X

HHCS 5/8 - 18 NF x 1-3/4 (30815 mt'g.)

2шт.

14

48450

FRONT AXLE

LOCKWASHER - med. sec.

2шт.

15

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX. NUT - reg. S.F.

2шт.

16

45709

CLIP

HHCS 1/2 - 20 NF x 1-3/4 (30815 mt'g.)

4шт.

17

48448

X

LOCKWASHER - med. sec.

4шт.

18

48104

PISTON

HEX. NUT - reg. S.F.

4шт.

DRAWBAR ASS'Y. (Inc. ref. # 19 thru 26) (Group no. 13049)

1шт.

19

13039

BUSHING

DRAWBAR - industrial

1шт.

20

13043

BUSHING

HITCH - drawbar

2шт.

21

NLS

NO LONGER SERVICED

SPACER - hook over

1шт.

22

NLS

NO LONGER SERVICED

HOOK OVER STRAP - drawbar

1шт.

23

45794

HHCS 3/4 - 16 NF x 4-1/2 (13043, 13107 & 13108 mt'g.)

2шт.

24

48452

X

LOCKWASHER - med. sec.

2шт.

25

48107

X

HEX. NUT - reg. S.F.

2шт.

26

13073

AXLE PIN

HITCH PIN ASS'Y.

1шт.

27

13044

NUT

PIN (13049 mt'g.)

1шт.

28

48739

X

COTTER PIN - 1/4 dia. x 2

1шт.

29

13109

PIN

CRAWBAR ASS'Y - agricultural

1шт.
