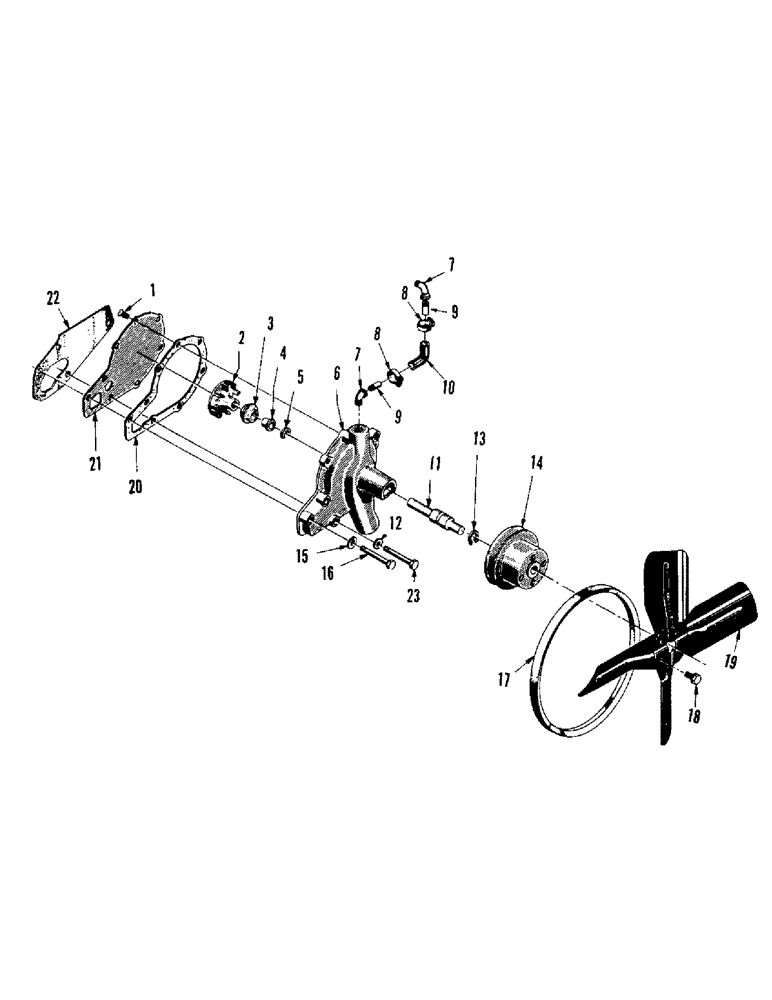

Запчасти Case 256 (027) - WATER PUMP PARTS (01) - ENGINE

WATER PUMP ASS'Y - complete (Inc. ref. #1 thru 6, 11, 13, 14, 20, 21, & 23) (Group no. 10582)

1шт.

1

10506

SCREW -, Serial Range: cover-body

4шт.

2

10584

FITTING

IMPELLER - water pump

1шт.

3

10503

SEAL ASSY.

SEAL - water pump

1шт.

4

10505

SWITCH

WATER SHEDDER

1шт.

5

10509

RING, LOCKING

BEARING SEAT RING

1шт.

6

10583

MANIFOLD

BODY - water pump

1шт.

7

41672

STREET ELBOW - 3/8 NP

2шт.

8

10615

OLIVE

HOSE CLAMP

2шт.

9

10628

NUT

PIPE CLAMP - 3/8 NP

2шт.

10

10626

PIPE FITTING

HOSE - w/p to water outlet elbow

1шт.

11

NLS

NO LONGER SERVICED

SHAFT - water pump

1шт.

12

10298

COPPER WASHER

COPPER WASHER

1шт.

13

10504

GASKET

RETAINER - bearing

1шт.

14

10587

ELEC CONNECTOR,3 Pin

FAN HUB

1шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

16

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

HHCS - 3/8 - 16 NC x 2-1/4

2шт.

17

11990

WRENCH-HOOK

FAN DRIVE BELT

1шт.

18

10314

LINING

SCREW & LOCKWASHER ASS'Y

4шт.

19

VT2180

X

FAN ASS'Y, replaces 10004

1шт.

20

10586

FITTING

GASKET - water pump cover

1шт.

21

10585

ELEC CONNECTOR,2 Pin

COVER - water pump

1шт.

22

10523

BUSHING

GASKET - w/p to cyl. block

1шт.

23

10588

SCREW

1шт.
