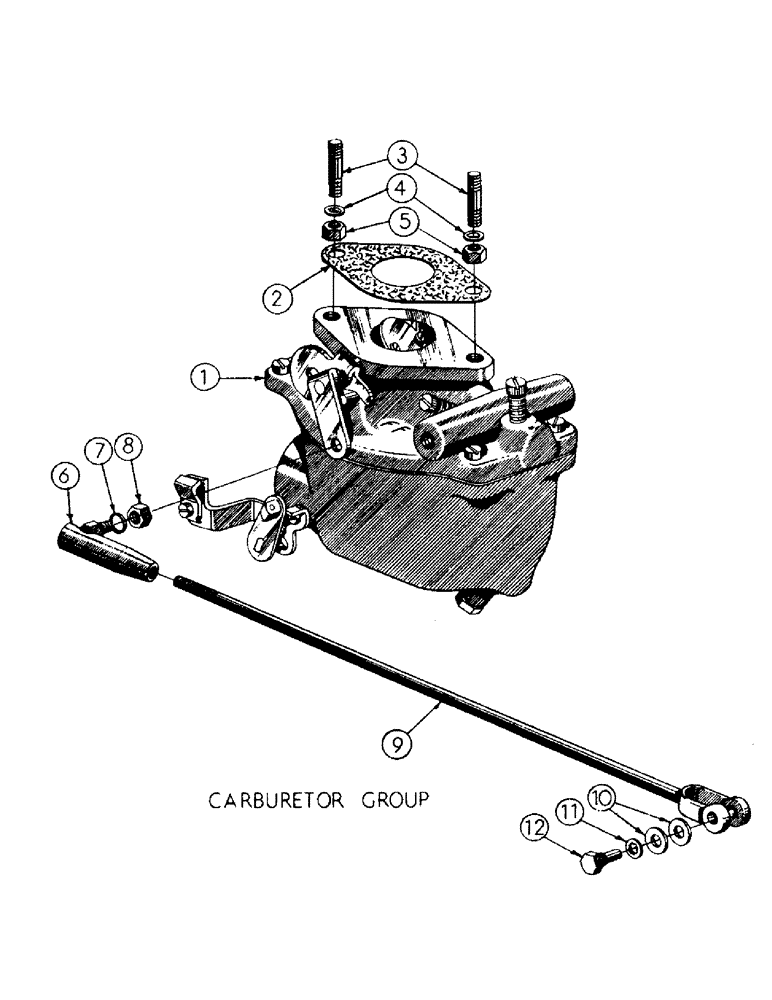

Запчасти Case 256 (015) - CARBURETOR (01) - ENGINE

1

LIT14100

SERVICE MANUAL

CARBURETOR ASS'Y

1шт.

2

0562AB

GASKET -, Serial Range: carb.-manifold

1шт.

3

10375

STUD 5/16 - 18 NC x 1-5/16 (14100 mt'g)

2шт.

4

48525

X

LOCKWASHER - 5/16 Shakeproof

2шт.

5

47861

KNOB

HEX NUT - light S.F.

2шт.

6

10031

BALL JOINT - control, Serial Range: rod-carb.

1шт.

7

48444

GUIDE

LOCKWASHER - med. sec.

1шт.

8

48100

HEX NUT - reg. S.F. (1/4 - 28 NF)

2шт.

9

10127

CONTROL ROD ASS'Y -, Serial Range: carb.-governor

1шт.

10

10032

NUT

PLAINWASHER

2шт.

11

48525

X

LOCKWASHER - 5/16 Shakeproof

1шт.

12

10029

YOKE END SCREW

1шт.
