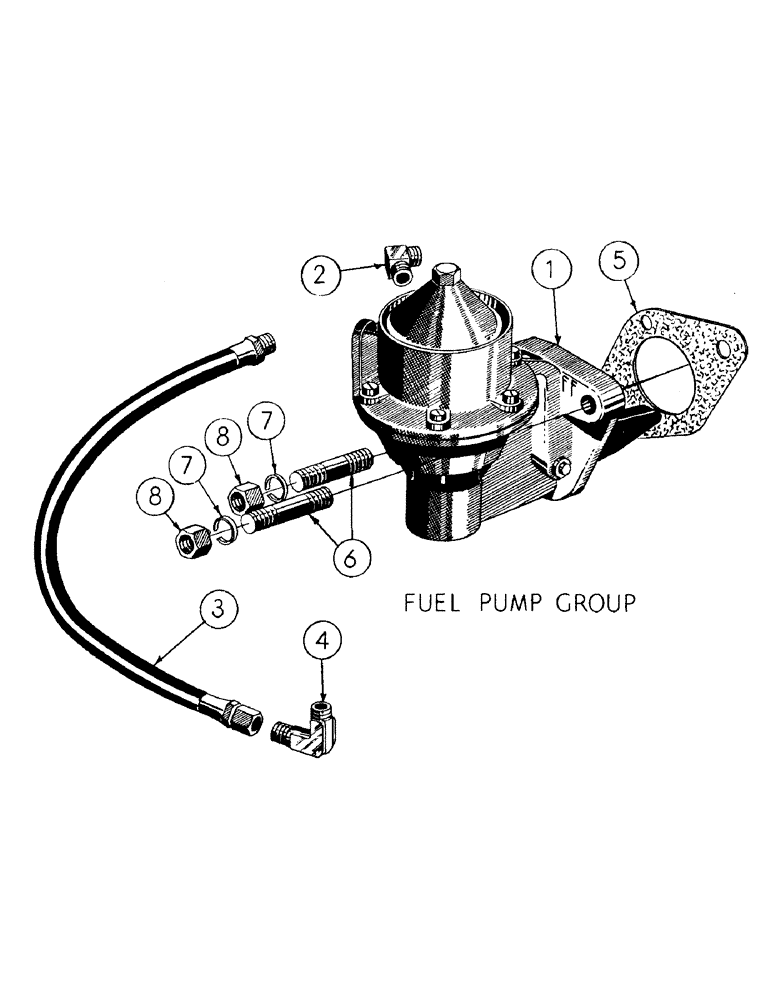

Запчасти Case 256 (014) - FUEL PUMP (01) - ENGINE

1

10023

FUEL PUMP ASS'Y

1шт.

2

34008

ELBOW 90 DEGREES - 5/16 - 20 to 1/8 NP

1шт.

3

10026

HOSE ASS'Y - fuel, Serial Range: pump-carburetor

1шт.

4

50464

X

MALE ELBOW 90 DEGREES - carb. inlet - 1/8 NP

1шт.

5

10123

GASKET - fuel pump

1шт.

6

10088

NUT

STUD 5/16 - 18 NC x 1-1/2 (10023 mt'g)

2шт.

7

92-6

LOCK WASHER,3/8"

LOCKWASHER - heavy sec.

2шт.

8

47861

KNOB

HEX NUT - light S.F. (5/16 - 18 NC)

2шт.
