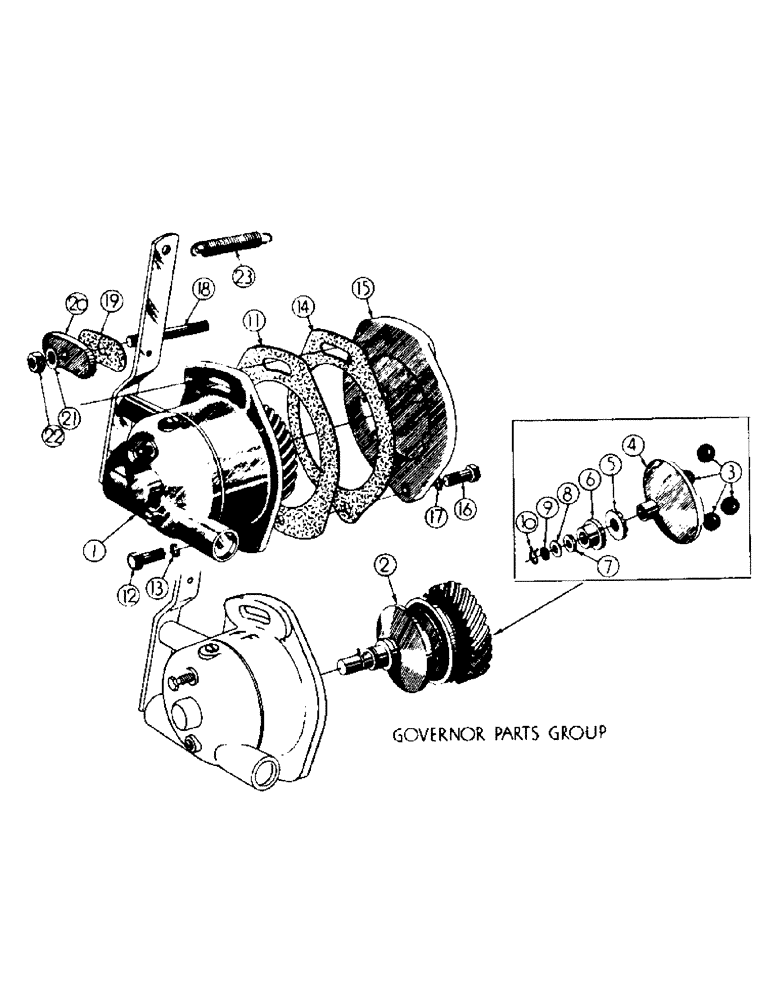

Запчасти Case 256 (013) - GOVERNOR PARTS (01) - ENGINE

1

GOVERNOR ASS'Y (Inc; ref. # 2 thru 10) (Group no. 10456)

1шт.

2

WORKS ASS'Y - governor (Incl ref. # 3 thru 10) (Group no. 10458)

1шт.

3

VT3268

BALL - governor 3/4 dia., rep. 10474

4шт.

4

10465

SEALING RING COLLAR

RACE - upper - governor

1шт.

5

10466

BEARING - thrust

1шт.

6

10467

SEALING RING COLLAR

BASE - governor lever fork

1шт.

7

10468

THRUST WASHER - lever fork base

1шт.

8

10469

THRUST WASHER - lever fork base

1шт.

9

NLS

NO LONGER SERVICED

PLATE - thrust

1шт.

10

10470

CLIP - gov. works retaining

1шт.

11

10480

GASKET - governor to gear cover

1шт.

12

10295

BUSHING

SCREW 3/8 - 16 NC x 1-1/8 (10456 mt'g)

1шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

14

VT3694

X

GASKET - mag. hole cover to gear cover, replaces 10324

1шт.

15

10321

COVER - magneto drive hole

1шт.

16

10323

HHCS 3/8 - 16 NC x 1-3/8 (10321 mt'g)

1шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

LOCKWSHER - med. sec.

1шт.

18

10322

STUD 3/8 - 16 NC x 3-7/8 (10321 & 10456 mt'g)

1шт.

19

10482

BUSHING

GASKET - governor flange

1шт.

20

10481

PLATE - governor flange gasket

1шт.

21

10498

FLANGE

COPPER WASHER

1шт.

22

30438

X

HEX NUT (3/8 - 16 NC)

1шт.

23

10022

SPRING

GOVERNOR SPRING ASS'Y

1шт.
