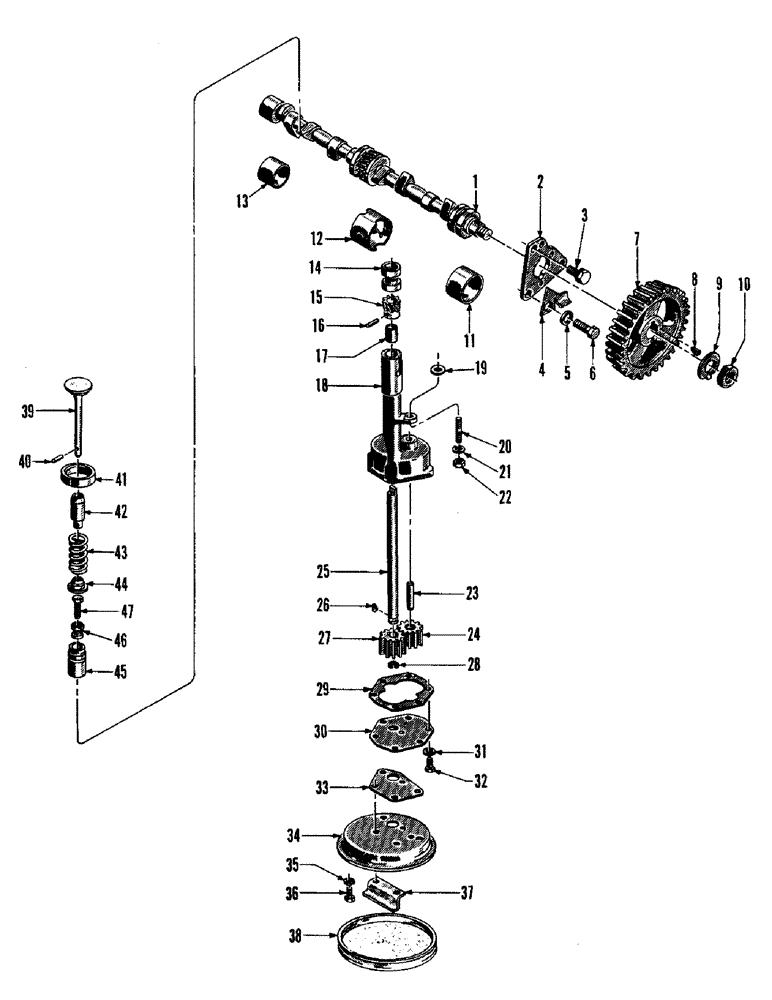

Запчасти Case 256 (010) - CAMSHAFT & OIL PUMP PARTS (01) - ENGINE

1

10261

CAMSHAFT

1шт.

2

10262

THRUST PLATE - camshaft

1шт.

3

10264

SCREW & LOCKWSHER ASS'Y (3/8 - 16 NC x 7/8)

2шт.

4

A10283

HOSE

PLATE - timing gear oiler

1шт.

5

48447

X

LOCKWASHER - med. sec.

1шт.

6

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

HHCS 7/16 - 14 NC x 1-1/4 (10283 mt'g)

1шт.

7

10281

HOSE

TIMIMG GEAR - camshaft

1шт.

8

48756

X

WOODRUFF KEY # 6

1шт.

9

10285

BUSHING

LOCKNUT - camshaft

1шт.

10

10284

HEX NUT (3/4 - 16 NF)

1шт.

11

10062

BUSHING - camshaft front, use 5973

1шт.

12

10063

BACK-UP RING

BUSHING - camshaft center, use 5973

1шт.

13

10064

GROMMET

BUSHING - camshaft rear, use 5973

1шт.

14

10065

O-RING

BUSHING - oil pump drive shaft

1шт.

OIL PUMP ASS'Y - complete (Inc. ref. # 51 thru 38) See 5917 (Group no. 10381)

1шт.

15

10388

TUBE ASSY.

GEAR - oil pump drive

1шт.

16

NLS

NO LONGER SERVICED

PIN - drive gear

1шт.

17

NLS

NO LONGER SERVICED

BUSHING

1шт.

18

10382

SEALING RING

BODY ASS'Y - oil pump (Inc. ref. #17)

1шт.

19

11578

CLIP

PLAINWASHER

1шт.

20

10083

STUD 3/8 - 16 NC x 1-5/8 (10381 mt'g)

1шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

LOCKWASHER - med. sec.

1шт.

22

30438

X

HEX NUT (3/8 - 16 NC)

1шт.

23

10392

STUD - oil pump idler gear

1шт.

24

10391

GEAR - oil pump idler

1шт.

25

BER10385

SEALING RING COLLAR

DRIVE SHAFT - oil pump

1шт.

26

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

WOODRUFF KEY # 3

1шт.

27

NLS

NO LONGER SERVICED

GEAR - oil pump driver

1шт.

28

NLS

NO LONGER SERVICED

SNAP RING

1шт.

29

10395

GASKET - oil pump cover

1шт.

30

10394

COVER ASS'Y - oil pump

1шт.

31

48444

GUIDE

LOCKWASHER - med. sec.

2шт.

32

45003

X

HHCS 1/4 - 20 NC x 5/8 (10394 mt'g)

2шт.

33

10397

BUSHING

GASKET - oil pump cover strainer

1шт.

34

10396

STOP

FRAME - oil pump strainer screen

1шт.

35

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

LOCKWASHER - med. sec.

4шт.

36

45003

X

HHCS 1/4 - 20 NC x 5/8 (10396 mt'g)

4шт.

37

10398

SPACER - oil pump strainer

1шт.

38

10399

SCREEN ASS'Y - oil strainer

1шт.

39

10331

VALVE

- intake, use 5984

4шт.

10332

WASHER

VALVE - exhaust, use 5982

4шт.

40

NLS

NO LONGER SERVICED

LOCK - valve spring retainer

8шт.

41

VT3387

INSERT - exhaust valve seat, rep. 10333

4шт.

42

10334

HOSE

GUIDE - valve stem, use 5992

8шт.

43

10335

SPRING

VALVE SPRING

8шт.

44

10336

RETAINER - valve spring

8шт.

TAPPET ASS'Y - valve (Inc. ref. #45 thru 47) (Group no. 10341)

8шт.

45

10342

TAPPET - valve

1шт.

46

10345

LOCKNUT - valve tappet

1шт.

47

10344

SCREW - tappet adjusting

1шт.

10403

SUCTION TUBE - oil pump (Not shown)

1шт.
