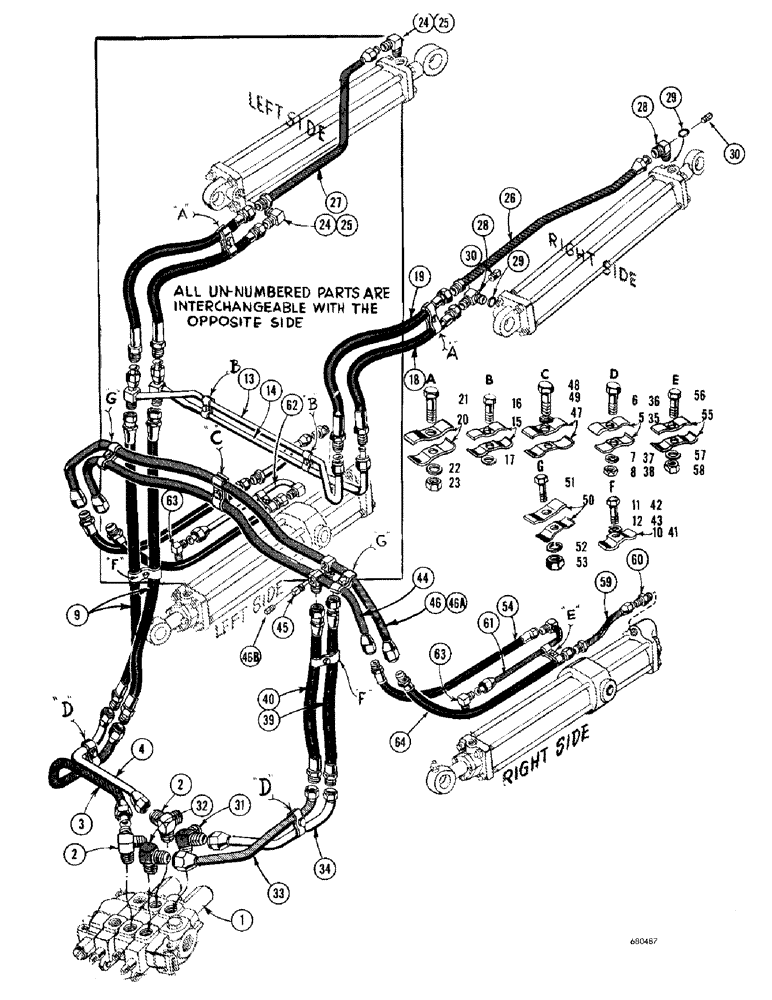

Запчасти Case 1000D (226) - LOADER HYDRAULICS, USED BEFORE TRACTOR SERIAL NO. 7104771 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, equipment control

1шт.

2

R22395

TEE - male, 1" NPT x 1" JIC x 5/8" JIC

2шт.

3

R22402

TUBE - valve to dump cylinder manifold, rear port

1шт.

4

R22400

TUBE

- valve to dump cylinder manifold, front port

1шт.

5

R15257

CLAMP

- tube

2шт.

6

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2" (R15257 mounting)

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

9

R21319

HOSE - valve to dump cylinder manifold (28" long)

2шт.

10

R15257

CLAMP

- hose

1шт.

11

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2" (R15257 mounting)

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

R19746

MANIFOLD - dump cylinder, rear port

1шт.

14

R19742

MANIFOLD - dump cylinder, front port

1шт.

15

R16916

CLAMP - tube

4шт.

16

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16" - 24 NF x 2-1/4" (R16916 mounting)

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

R22188

HOSE

- dump cylinder manifold to dump cylinder, rear port (33" long) (Order DR10488 for service)

2шт.

DR10488

HOSE ASSY.

HOSE - dump cylinder manifold to dump cylinder, rear port (36" long)

2шт.

19

R22189

HOSE

- dump cylinder manifold to dump cylinder, front port (37-3/8" long) (Order D29911 for service)

2шт.

D29911

HOSE

- dump cylinder manifold to dump cylinder, front port (39-3/8" long)

2шт.

20

R15257

CLAMP

- hose

4шт.

21

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R15257 mounting) Hex, 5/16"-24 x 1 3/4", G5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable (3/4" JIC x 3/4" JIC)

2шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

26

R19734

TUBE - dump cylinder manifold to R.H. dump cylinder, front port

1шт.

27

R19748

TUBE - dump cylinder manifold to L.H. dump cylinder, front port

1шт.

28

R19713

FITTING

ELBOW - 90 degree male, (Special) 3/4" JIC x 3/4" JIC

2шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

30

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

2шт.

31

R22394

TEE - male, 1" NPT x 1" JIC

1шт.

32

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NPT x 1" JIC

1шт.

33

R22396

TUBE - valve to lift cylinder manifold, rear port

1шт.

34

R22398

TUBE - valve to lift cylinder manifold, front port

1шт.

35

R15257

CLAMP

- tube

2шт.

36

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/8" - 24 NF x 2" (R15257 mounting)

1шт.

37

92-5

LOCK WASHER,5/16"

WASHER - med. sec. lock (5/8")

1шт.

38

25-115

NUT,5/16"-24, G5

- hex (5/8"-24 NF)

1шт.

39

R21320

HOSE - valve to lift cylinder manifold, front port (30-1/2" long)

1шт.

40

R21321

HOSE

- valve to lift cylinder manifold, rear port (33-1/2" long)

1шт.

41

R15257

CLAMP

- hose

1шт.

42

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2" (R15257 mounting)

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

R19727

MANIFOLD - lift cylinder, rear port (Order D29799 for service)

1шт.

D29799

MANIFOLD - lift cylinder, rear port

1шт.

45

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

46

R19732

MANIFOLD - lift cylinder, front port (When stock is exhausted, use D30571 for service)

1шт.

46a

R30571

PLUG

MANIFOLD - lift cylinder, front port

1шт.

46b

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

47

R16916

CLAMP - tube

2шт.

48

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2" (R16916 mounting)

1шт.

49

92-5

LOCK WASHER,5/16"

1шт.

50

R15257

CLAMP

- tube

4шт.

51

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2" (R15257 mounting)

2шт.

52

92-5

LOCK WASHER,5/16"

2шт.

53

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

54

73124

- lift cyl. manifold to lift cyl., rear port (38" long)

2шт.

55

R16916

CLAMP - hose

4шт.

56

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2" (R16916 mounting)

2шт.

57

92-5

LOCK WASHER,5/16"

2шт.

58

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

59

R13566

TUBE

- lift cylinder manifold to lift cylinder, front port

2шт.

60

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight male, 3/4" NPT to 3/4" JIC

2шт.

61

R19712

TUBE - lift cylinder manifold to R.H. lift cylinder, rear port

1шт.

62

R19710

TUBE - lift cylinder manifold to L.H. lift cylinder, rear port

1шт.

63

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT x 3/4" JIC

2шт.

64

D31336

HOSE

- lift cyl. manifold to lift cyl., front port (40-1/2" long)

2шт.
