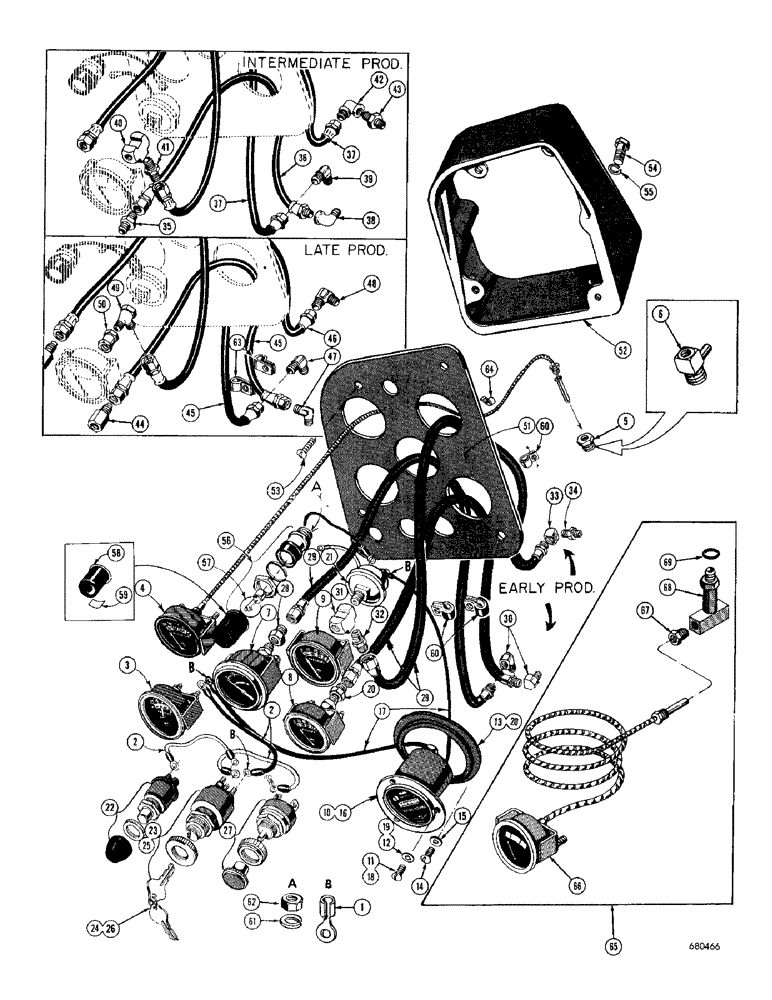

Запчасти Case 1000D (090) - INSTRUMENT PANEL, EARLY PRODUCTION, INTERMEDIATE PRODUCTION (06) - ELECTRICAL SYSTEMS

1

R22974

TERMINAL

3шт.

2

51200220

ELECTRICAL WIRE

WIRE - jumper

3шт.

3

R18748

AMMETER

GAUGE - ammeter

1шт.

4

R20601

X

GAUGE - water temperature (When stock is exhausted use 11284 for service)

1шт.

11284

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

5

NSS

NOT SOLD SEPARAT

ADAPTER - temperature gauge to head

1шт.

6

D32231

FITTING - special (See Figure 64, ref. #60 and Figure 68, ref. #48)

1шт.

7

R15955

X

GAUGE - transmission oil pressure (When stock is exhausted order D29570 for service)

1шт.

8

R15953

GAUGE

- torque converter oil pressure

1шт.

9

R15952

GAUGE - engine oil pressure

1шт.

10

R18745

METER - engine hours (When stock is exhausted use D39287 hour meter kit and D35079 dampener for service)

1шт.

11

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

RHMS - #10 - 32 NF x 5/8"

3шт.

12

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

3шт.

13

R18744

DAMPER

DAMPENER - vibration

1шт.

14

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

RHMS - #10 - 32 NF x 5/8"

3шт.

15

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

3шт.

D39287

HOURMETER

KIT - engine hour meter (Not illustrated)

1шт.

16

NSS

NOT SOLD SEPARAT

METER - engine hour

1шт.

17

D39285

ELECTRICAL WIRE

WIRE - hour meter, 36"

2шт.

D39284

KIT

PACKAGE - mounting hardware

1шт.

18

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

19

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

20

D35079

DAMPER

DAMPENER - vibration

1шт.

21

A27312

SWITCH

- pressure (When stock is exhausted order D28798 switch for service)

1шт.

D28798

SWITCH

- pressure

1шт.

22

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

23

10868

SWITCH AND KEY - electrical (When stock is exhausted use D36731 switch assembly for service)

1шт.

24

D20262

KEY

- electrical

1шт.

25

D36731

SWITCH

AND KEY - electrical (Not illustrated)

1шт.

26

D36822

KEY

- electrical

1шт.

27

R22699

X

SWITCH - light (When stock is exhausted, use D35065 switch and 1 - A56120 washer for service)

1шт.

28

222-741

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT Fem

ADAPTER - female, 1/4" JIC x 1/8" NPT - 45 degree flare, early production

2шт.

29

D20271

HOSE ASS'Y - 36" with male and female hose fittings, early production

3шт.

30

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, early production 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

2шт.

31

217-10

TEE,1/8" - 27 NPTF Fem

- female, 1/8" NPT, early production

1шт.

32

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

ADAPTER - male, 1/4" JIC x 1/8" NPT, early production

1шт.

33

217-26

ELBOW,90 Degree, 1/8"-27 NPTF, Fem, Brass

- 90 degree female, 1/8" NPT, early production

1шт.

34

41860

X

NIPPLE - hex., 1/8" NPT x 1/8" NPT, early production

1шт.

35

222-741

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT Fem

ADAPTER - female, 1/4" JIC x 1/8" NPT - 45 degree flare, intermediate production

2шт.

36

D20271

HOSE ASS'Y - 36" with male and female hose fittings, intermediate production

1шт.

37

R22258

HOSE

ASS'Y - 36" with female hose fittings, intermediate production

2шт.

38

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, intermediate production 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

39

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, x 1/4" JIC, intermediate production 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

40

217-10

TEE,1/8" - 27 NPTF Fem

- female, 1/8" NPT, intermediate production

1шт.

41

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

ADAPTER - male, 1/4" JIC x 1/8" NPT, intermediate production

1шт.

42

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degree reducing, 1/4" JIC x 1/8" NPT (Order 1 - 222-762 for service), intermediate production

1шт.

43

41860

X

NIPPLE - hex., 1/8" NPT x 1/8" NPT (Order 1 - 222-762 for service), intermediate production

1шт.

44

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - female, 1/4" JIC x 1/8" NPT - 37 degree flare, late production

2шт.

45

33727

HOSE

ASS'Y - 48" with female hose fittings, late production

2шт.

46

R22258

HOSE

ASS'Y - 36" with female hose fittings, late production

1шт.

47

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree male, 1/4" JIC x 1/8" NPT, late production

2шт.

48

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, x 1/4" JIC, late production 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

49

222-842

FITTING,1/8" NPT Fem Run x 1/8" NPT Male x 7/16"-20 Br

TEE - 1/4" JIC x 1/8" NPT x 1/8" NPT, late production

1шт.

50

217-95

COUPLING,1/8"-27, Brass

Female, Late production 1/8"-27, Brass

1шт.

51

R18742

PANEL - instrument, late production

1шт.

52

R18630

MOUNT - instrument panel, late production

1шт.

53

R20124

SCREW

THMS - 1/4" - 28 NF x 1/2" (R18742 mounting), late production

4шт.

54

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd (R18630 mounting), Late production

2шт.

55

92-8

LOCK WASHER,1/2"

late production 1/2"

2шт.

56

R19896

LAMP

ASS'Y - dash, late production

1шт.

57

R19897

BULB

- dash light, late production

1шт.

58

R22237

COVER

- lamp, late production

1шт.

59

R22232

SIGHTGLASS

LENS - lamp, late production

1шт.

60

49838

CLAMP

- hose, late production

3шт.

61

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Late production 5/8"

1шт.

62

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF), late production

1шт.

63

49774

CLAMP

- hose, late production

2шт.

64

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- hose, late production

1шт.

65

R4289

KIT - torque converter temperature gauge, late production

1шт.

66

R15126

X

GAUGE - torque converter temperature (When stock is exhausted, use D44005 for service), late production

1шт.

D44005

ELECTRICAL GAUGE

GAUGE - torque converter temperature, late production

1шт.

67

R21496

ADAPTER

- special, late production

1шт.

68

R21495

TEE ASSEMBLY - special, late production

1шт.

69

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, late production

1шт.

70

321-355

DECAL - caution (Not illustrated), late production

1шт.
