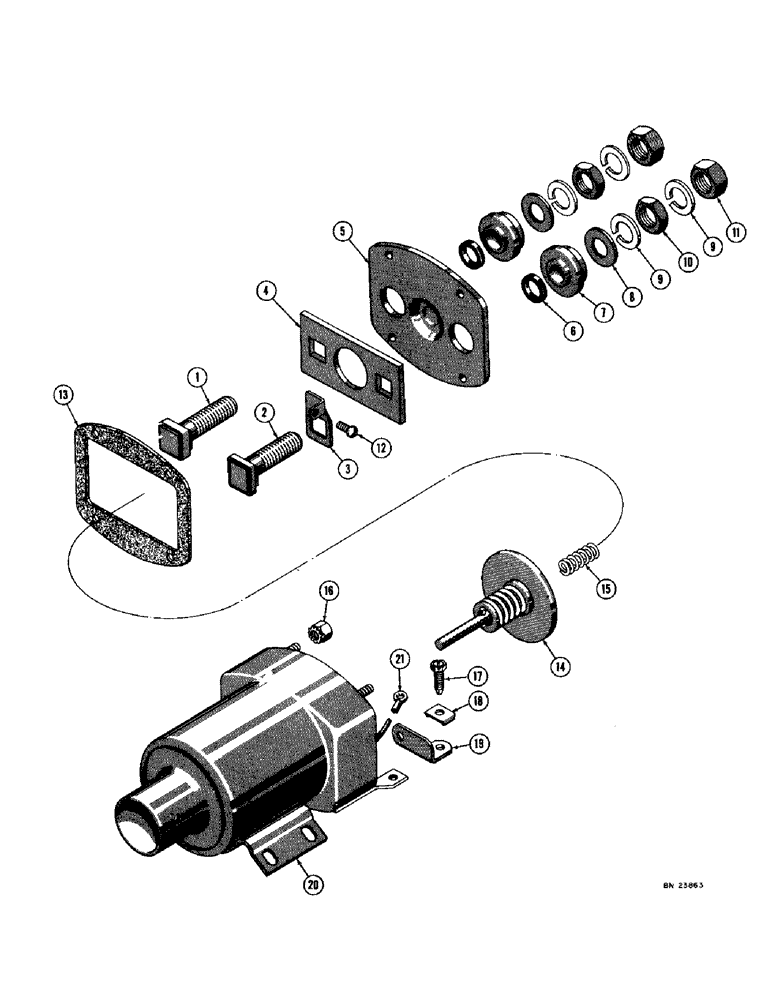

Запчасти Case 1000D (088) - A15358 SOLENOID (06) - ELECTRICAL SYSTEMS

A15358

SOLENOID

ASSEMBLY - Delco-Remy #1119832

1шт.

D29577

TERMINAL PLATE ASSEMBLY

1шт.

1

D32505

STUD

- motor terminal

1шт.

2

D32506

STUD

- battery terminal

1шт.

3

D29910

SUPPORT

- lead

1шт.

4

D32507

RUBBER INSULATOR

INSULATOR

1шт.

5

D32504

COVER

PLATE - terminal

1шт.

6

D32508

INSULATOR

BUSHING - terminal insulator

2шт.

7

D32510

BUSHING

- terminal insulator

2шт.

8

D32509

X

WASHER - plain

2шт.

9

D30007

WASHER - lock

4шт.

10

D32512

X

NUT - hex. (5/16" thick)

2шт.

11

D32513

X

NUT - hex. (7/16" thick)

2шт.

12

D30000

SCREW - coil lead attaching

1шт.

13

D29930

X

GASKET - terminal, Serial Range: plate-case

1шт.

14

D32498

CONTACT

DISC ASSEMBLY - solenoid

1шт.

15

D32499

SPRING

- contact disc

1шт.

16

D32500

NUT

AND LOCKWASHER - terminal plate

4шт.

17

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal

2шт.

18

R15182

CLIP

- terminal

2шт.

19

R15161

CONNECTOR, ELEC

CONNECTOR - ground

1шт.

20

NSS

NOT SOLD SEPARAT

CASE AND COIL - order A15358 for service

1шт.

21

D30020

CLIP - terminal, coil lead to support

1шт.
