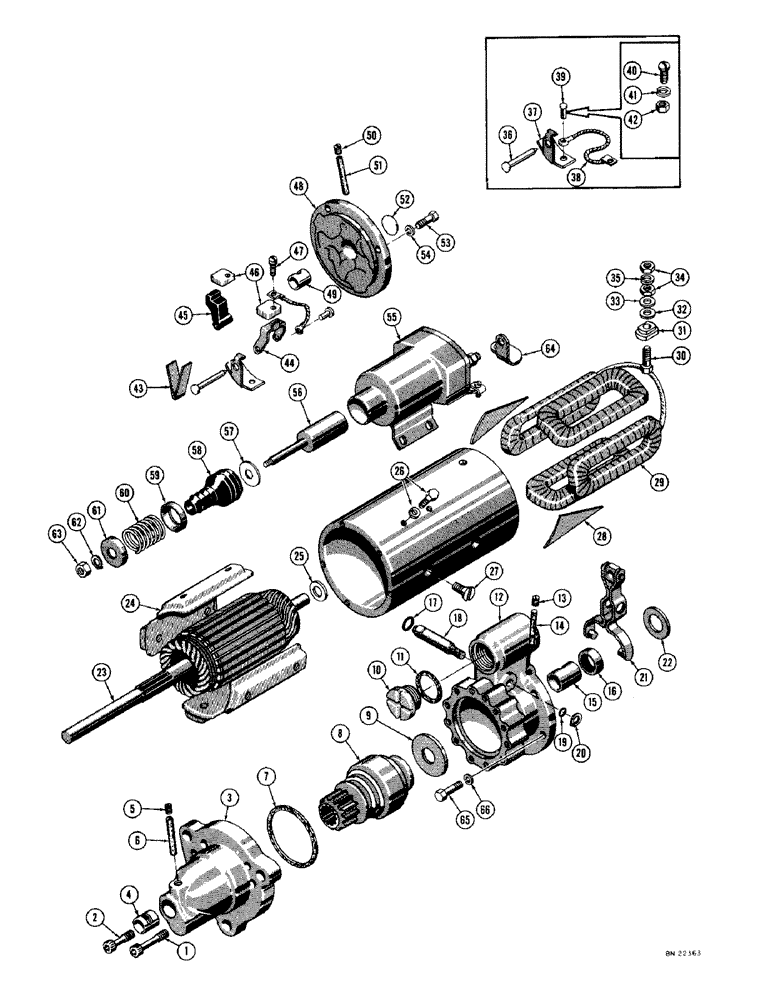

Запчасти Case 1000D (084) - D31845 STARTER, USED ON TRACTOR SERIAL NO. 7104814 AND AFTER (06) - ELECTRICAL SYSTEMS

D31845

STARTER ASSEMBLY - Delco Remy #1113366

1шт.

1

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive housing

5шт.

2

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

1шт.

3

D32487

HOUSING - drive

1шт.

4

A40893

BUSHING

- housing

1шт.

5

221-1041

PLUG

- pipe

1шт.

6

R15023

WICK

- oil

1шт.

7

R21562

GASKET

- drive housing to lever housing

1шт.

8

R21589

DRIVE

CLUTCH - starter

1шт.

9

R15145

DISC

WASHER - brake

1шт.

10

R21587

PLUG

- lever housing

1шт.

11

R21588

GASKET - plug

1шт.

12

D32485

HOUSING

- lever

1шт.

13

221-1041

PLUG

- pipe

1шт.

14

R15023

WICK

- oil

1шт.

15

R21580

BUSHING

- housing

1шт.

16

R21582

OIL SEAL

- oil

1шт.

17

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

SEAL - "O" ring

1шт.

18

R21564

X

SHAFT - shift lever

1шт.

19

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

SEAL - "O" ring

1шт.

20

R21575

X

RING - snap

1шт.

21

D32547

LEVER

- shift

1шт.

22

R21583

WASHER

- spacer

1шт.

23

D32478

X

ARMATURE - starter

1шт.

24

R15115

SHOE

- pole

4шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- spacer, commutator end

1шт.

26

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

AND LOCKWASHER - solenoid mounting

4шт.

27

D32477

X

SCREW - pole shoe

4шт.

28

R15018

X

INSULATION - field coil

2шт.

29

R21557

COIL ASSY.

COIL - field

1шт.

30

R15017

STUD

- terminal

1шт.

31

R15010

BUSHING

- insulating, terminal stud

1шт.

32

R15011

WASHER

- insulating, terminal stud

1шт.

33

R15013

WASHER

- plain

1шт.

34

R15014

NUT

- terminal stud

2шт.

35

192-111

WASHER,3/8"

- lock

1шт.

R15029

BRUSH

KIT - brush support package

2шт.

36

R15035

PIN

- brush holder

1шт.

37

NSS

NOT SOLD SEPARAT

BRACKET - support

1шт.

38

R15030

ELECTRICAL WIRE

LEAD - ground

1шт.

39

R15034

RIVET - bracket

2шт.

40

R15031

X

SCREW - bracket (Optional to R15034)

2шт.

41

D32483

X

LOCKWASHER -, Serial Range: optional-R15034

2шт.

42

R15032

X

NUT -, Serial Range: optional-R15034

2шт.

43

R15025

SPRING

- brush

2шт.

44

A40217

HOLDER

BRUSH HOLDER - ground

2шт.

45

R21590

HOLDER

BRUSH HOLDER - insulated

2шт.

R4285

BRUSH, COMMUTATOR

BRUSH KIT

1шт.

46

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

47

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW AND LOCKWASHER - brush

4шт.

48

R21559

FRAME

- commutator end

1шт.

49

R15020

BUSHING

- frame

1шт.

50

221-1041

PLUG

- pipe

1шт.

51

R15023

WICK

- oil

1шт.

52

R15021

PLUG

- expansion

1шт.

53

R21578

SCREW

- R21559 mounting

4шт.

54

D32483

X

WASHER - lock

4шт.

55

A15358

SOLENOID

- starter (See Figure 88 for breakdown) Delco Remy #1119832

1шт.

56

R21568

PLUNGER

- solenoid

1шт.

57

R21570

WASHER

- spring retainer

1шт.

58

R21576

BOOT

- plunger

1шт.

59

R21572

RETAINER

- spring

1шт.

60

R21569

X

SPRING

1шт.

61

R21571

RETAINER

- spring

1шт.

62

R21575

X

RING - snap

1шт.

63

R21586

X

NUT - hex.

1шт.

64

D32480

CONNECTOR -, Serial Range: terminal-switch

1шт.

65

D32484

SCREW,Hex, 1/4" - 28 x 1"

- lever housing

5шт.

66

R21585

X

WASHER - lock

5шт.
