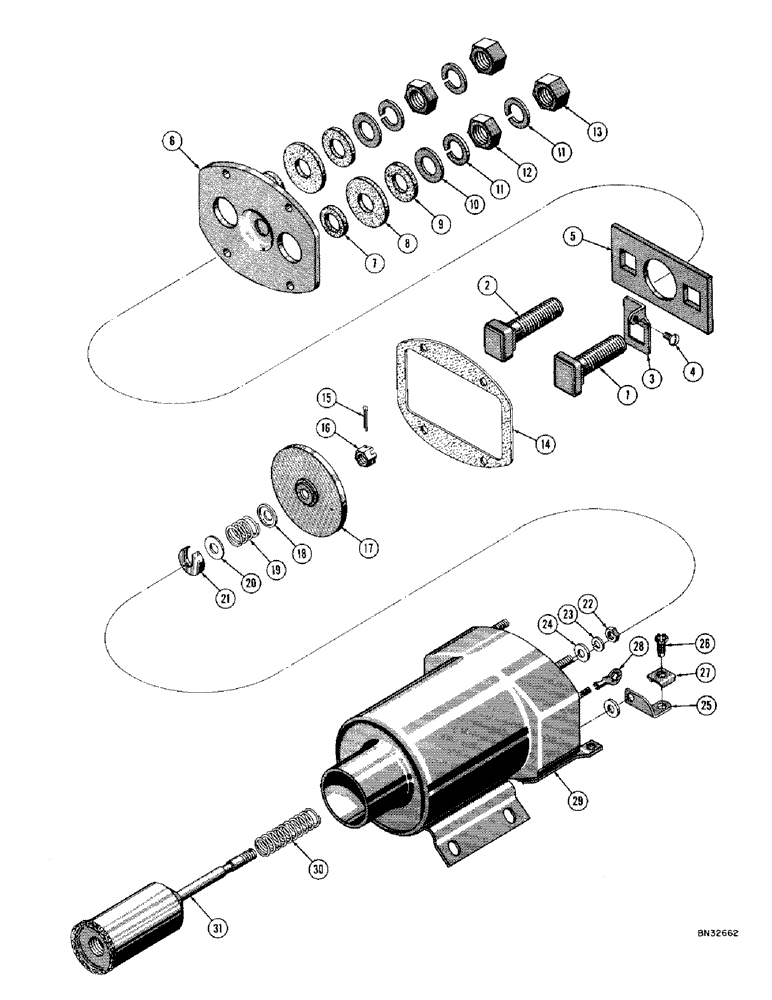

Запчасти Case 1000D (082) - R15158 SOLENOID (06) - ELECTRICAL SYSTEMS

R15158

SOLENOID ASS'Y - (Delco-Remy #1119803)

1шт.

D29575

TERMINAL PLATE ASS'Y

1шт.

1

D29908

STUD - motor terminal

1шт.

2

D29909

STUD - battery terminal

1шт.

3

D29910

SUPPORT

- lead

1шт.

4

D30000

SCREW - coil lead mounting

1шт.

5

D30001

X

INSULATOR

1шт.

6

D30002

PLATE - terminal

1шт.

7

D30003

BUSHING - terminal insulator

2шт.

8

D30004

WASHER

- terminal insulator (1-3/16" O.D.)

2шт.

9

D30005

INSULATOR

WASHER - terminal insulator (15/16" O.D.)

2шт.

10

D30006

WASHER

- plain (7/8" O.D.)

2шт.

11

D30007

WASHER - lock (1/2")

4шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

13

D30009

NUT

- hex. (1/2" - 13 NC x 7/16" thick)

2шт.

14

D29930

X

GASKET - terminal, Serial Range: plate-case

1шт.

15

D30011

PIN - cotter (1/16" dia. x 1/2")

1шт.

16

D30012

NUT - hex. slotted, contact plate mounting

1шт.

17

D29576

DISC - contact

1шт.

18

D30013

WASHER - cupped, contact spring retaining

1шт.

19

D30014

SPRING - contact disc cushion

1шт.

20

D30015

WASHER - plain, contact spring

1шт.

21

D30016

WASHER - cupped and slotted, contact spring retaining

1шт.

22

D30017

X

NUT - hex., terminal plate mounting

4шт.

23

R15033

X

WASHER - lock

4шт.

24

D30018

WASHER - nylon

4шт.

25

R15161

CONNECTOR, ELEC

STRAP - ground

1шт.

26

D30019

X

SCREW - terminal

2шт.

27

R15182

CLIP

CLAMP - terminal

2шт.

28

D30020

CLIP - terminal, coil lead to support

1шт.

29

D30021

CASE & COIL ASS'Y

1шт.

30

D30022

SPRING - plunger return

1шт.

31

D30023

PLUNGER

1шт.
