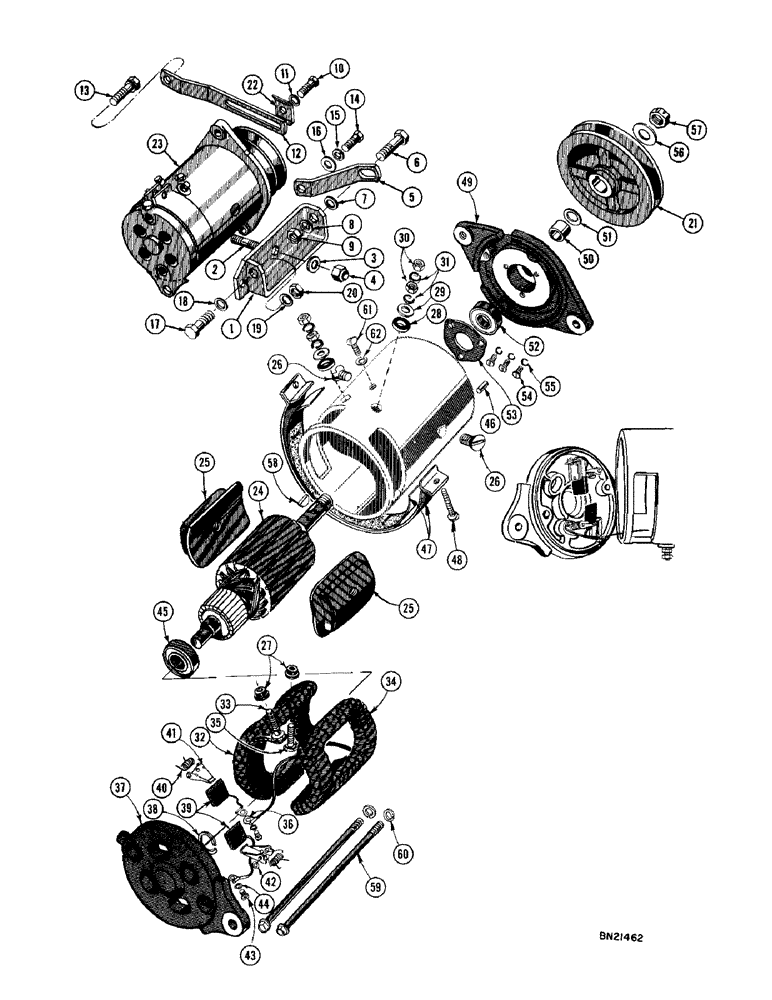

Запчасти Case 1000D (074) - R21373 GENERATOR AND MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

1

R21798

BRACKET - generator mounting

1шт.

2

R15761

STUD - 1/2" - 13 NC x 2"

2шт.

3

R15762

WASHER - lock (1/2")

2шт.

4

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

5

R22753

SUPPORT - generator mounting

1шт.

6

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

1шт.

7

95-8

WASHER,1/2"

plain 1/2"

1шт.

8

92-8

LOCK WASHER,1/2"

1шт.

9

25-118

NUT,1/2"-20, G5

- regular SF hex. (1/2" - 20 NF)

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

R14826

STRAP - generator adjusting

1шт.

13

71842

GASKET

SCREW & LOCKWASHER ASS'Y - 3/8" - 16 NC x 2-1/2"

1шт.

14

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8"

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

17

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8" - 24 NF x 1-1/2"

1шт.

18

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- regular SF hex. (3/8" - 24 NF)

1шт.

21

R21740

PULLEY - generator

1шт.

22

R14726

CLIP - generator adjusting strap

1шт.

23

R21373

GENERATOR ASS'Y - Delco Remy #1105228, order R17847 generator for service (Parts list Figure 76)

1шт.

24

R21591

ARMATURE ASS'Y

1шт.

25

R15075

SHOE - pole

2шт.

26

R15076

SCREW - pole shoe

2шт.

27

R15077

X

INSULATOR - terminal (When stock is exhausted, use A40702 stud kit for service)

2шт.

28

R15078

WASHER - insulator terminal

2шт.

29

R15079

WASHER

- plain, insulator terminal

2шт.

30

129-18

NUT,#12-24

- hex. (#12 - 24 NC)

4шт.

31

R15080

TOOTH

WASHER - lock (#12)

4шт.

32

R15081

COIL - field, L.H.

1шт.

33

R15084

X

STUD - terminal

1шт.

34

R15083

COIL

- field, R.H.

1шт.

35

R15084

X

STUD - terminal

1шт.

36

R15085

CLIP -, Serial Range: terminal-brush

1шт.

37

R15086

FUNNEL

FRAME - commutator end and brush holder ass'y

1шт.

38

R15087

RING - bearing retainer

1шт.

R4286

BRUSH, COMMUTATOR

KIT - generator brush

1шт.

39

NSS

NOT SOLD SEPARAT

BRUSH - generator (Order R4286 kit for service)

2шт.

40

R15089

SPRING - brush (When stock is exhausted, use A41420 spring for service)

2шт.

41

R15090

ARM

- brush

2шт.

42

R15091

WASHER - space, brush arm

2шт.

43

R15232

SCREW - brush lead attaching

2шт.

44

R15093

X

WASHER - lock, brush lead attaching

2шт.

45

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, commutator end

1шт.

46

R15095

PIN - dowel, commutator end and drive end

2шт.

47

R15096

BAND - cover

1шт.

48

R15097

SCREW - cover band

1шт.

49

R21592

FRAME - drive end

1шт.

50

R21916

COLLAR - shaft

1шт.

51

R21594

WASHER - space

1шт.

52

R21595

BEARING

- ball, drive end

1шт.

53

R21596

PLATE - bearing retainer

1шт.

54

R15102

SCREW - bearing retainer plate mounting

3шт.

55

R15040

X

WASHER - lock, bearing retainer plate screw

3шт.

56

R21597

WASHER

1шт.

57

131-301

LOCK NUT

NUT - shaft

1шт.

58

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

59

R15106

BOLT

- thru

2шт.

60

R15070

WASHER - lock, thru bolt

2шт.

61

R15107

SCREW - frame

1шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Frame (#3) 1/4"

1шт.
