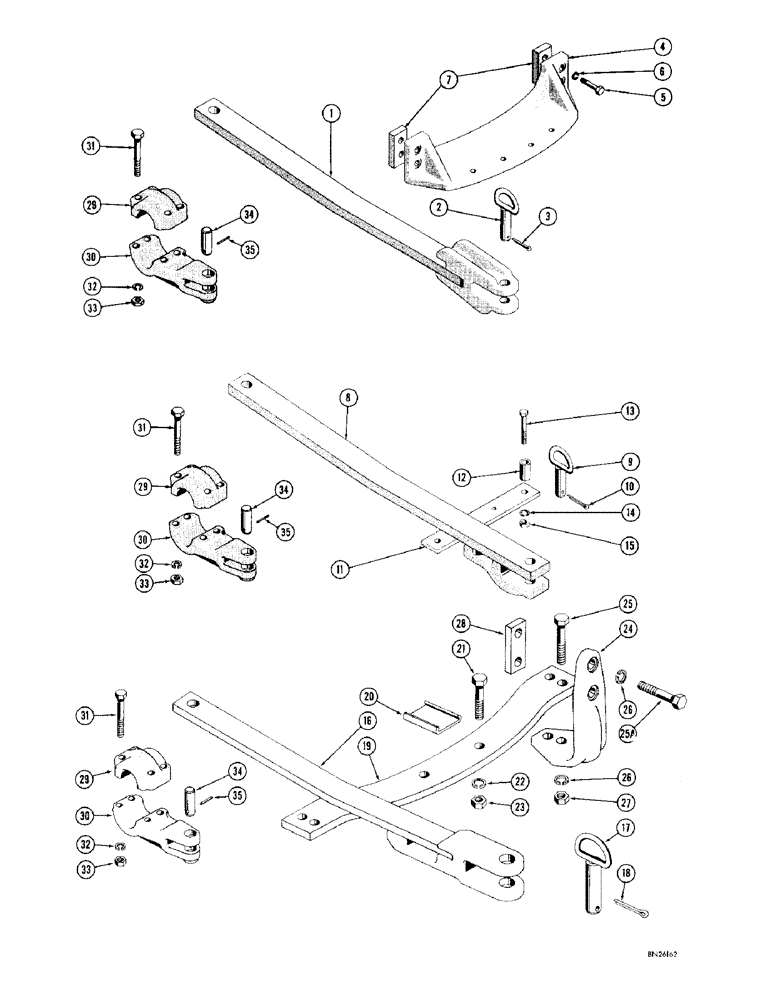

Запчасти Case 1000D (280) - DRAWBARS (05) - UPPERSTRUCTURE CHASSIS

1

74833

DRAWBAR - standard

1шт.

2

70989

PIN - drawbar

1шт.

3

132-152

PIN

- cotter, 1/4" dia. x 1-3/4"

1шт.

4

74346

GUIDE - drawbar

1шт.

5

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3" (74346 mounting) Used before tractor serial no. 7104672

4шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(74346 mounting) Used on tractor S/N 7104672 and after Hex, 3/4"-10 x 3", G5

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

1

74833

DRAWBAR - standard, for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper, or winch

1шт.

2

70989

PIN - drawbar, standard, for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper, or winch

1шт.

3

132-152

PIN

- cotter, 1/4" dia. x 1-3/4", standard drawbar for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper, or winch

1шт.

4

74346

GUIDE - drawbar, standard, for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper, or winch

1шт.

5

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3" (74346 mounting) Used before tractor serial no. 7104672, standard drawbar for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper, or winch

4шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(74346 mounting) Used on tractor S/N 7104672 and after, standard drawbar for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper, or winch Hex, 3/4"-10 x 3", G5

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Standard drawbar, for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper or winch 3/4"

4шт.

7

R14501

BUSHING

SPACER - drawbar guide, standard, (for use on angling dozer, bulldozer, & loader tractors w/o rear counterweight, ripper or winch

2шт.

8

74608

DRAWBAR - standard, for use on all model tractors w/ ripper

1шт.

9

74607

PIN ASSY.

PIN - drawbar, standard, for use on all model tractors w/ripper

1шт.

10

132-152

PIN

- cotter, 1/4" dia. x 1-3/4", standard drawbar, for use on all model tractors w/ripper

1шт.

11

74602

GUIDE

- drawbar, standard, for use on all model tractors w/ripper

1шт.

12

R20796

BUSHING

SPACER - drawbar, standard, for use on all model tractors w/ripper

2шт.

13

14-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

HHCS - 3/4" - 16 NF x 8" (74602 mounting), standard drawbar, for use on all model tractors w/ripper

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Standard drawbar, for use on all model tractors w/ripper 3/4"

2шт.

15

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), standard drawbar, for use on all model tractors w/ripper

2шт.

16

D30060

DRAWBAR, SWINGING

DRAWBAR - heavy duty, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

1шт.

17

R18049

PIN

- drawbar,heavy duty, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

1шт.

18

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), , Heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch 3/8" x 2 1/2"

1шт.

19

R18045

GUIDE

- drawbar, heavy duty, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

1шт.

20

R18132

PLATE

- wear, heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

1шт.

21

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4" - 16 NF x 2", heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch 3/4"

2шт.

23

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

2шт.

24

R18044

SUPPORT

- drawbar guide, heavy duty, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

2шт.

25

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS - 3/4" - 16 NF x 3-1/4" (R18045 mounting), heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

4шт.

25a

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS - 3/4" - 16 NF x 3-1/4" (R18044 mounting) Used before tractor serial no. 7104672, heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

4шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(R18044 mounting) Used on tractor S/N 7104672 and after, heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch Hex, 3/4"-10 x 3 1/4", G5

4шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch 3/4"

8шт.

27

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), heavy duty drawbar, for use on angling dozer, bulldozer, & loader tractors w/counterweight or winch

4шт.

16

R18043

DRAWBAR

- heavy duty

1шт.

17

R18049

PIN

- drawbar

1шт.

18

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

19

R18045

GUIDE

- drawbar

1шт.

20

R18132

PLATE

- wear

1шт.

21

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4" - 16 NF x 2"

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

2шт.

24

R18044

SUPPORT

- drawbar guide

2шт.

25

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS - 3/4" - 16 NF x 3-1/4" (R18045 mounting)

4шт.

25a

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS - 3/4" - 16 NF x 3-1/4" (R18044 mounting) Used before tractor serial no. 7104672

4шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(R18044 mounting) Used on tractor S/N 7104672 and after Hex, 3/4"-10 x 3 1/4", G5

4шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

27

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

28

R14501

BUSHING

SPACER - drawbar guide support

2шт.

29

R17587

CAP

- drawbar attaching bracket, parts for mounting

1шт.

30

R17588

BRACKET

- drawbar attaching, parts for mounting

1шт.

31

14-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

HHCS - 5/8" - 18 NF x 4-1/2" (R17587 and R17588 mounting), parts for drawbar

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Parts for drawbar mounting 5/8"

4шт.

33

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF), parts for drawbar mounting

4шт.

34

70992

PIN

- drawbar mounting, parts

1шт.

35

49869

PIN

- lock (3/8" dia. x 2"), parts for drawbar mounting

1шт.
