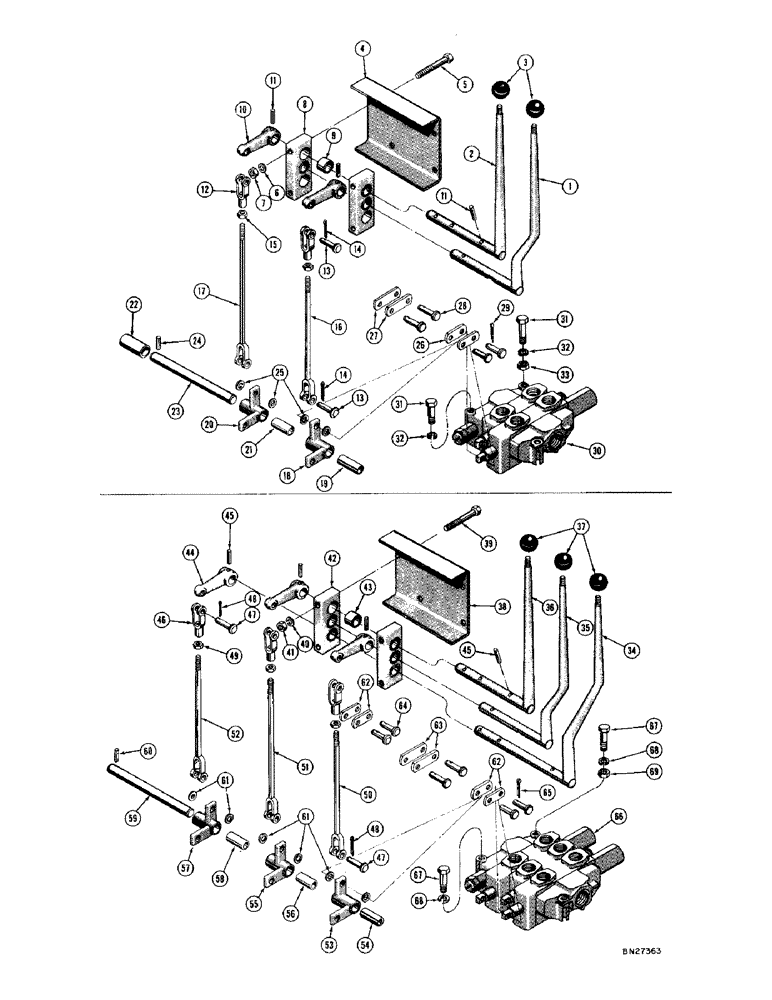

Запчасти Case 1000D (276) - EQUIPMENT CONTROL LEVERS AND VALVES, USED ON TRACTOR SERIAL NO. 7104771 AND AFTER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
R22272
LEVER - equipment control, outer
1шт.
2
R22271
LEVER - equipment control, inner
1шт.
3
CAS31375
KNOB
BALL - grip
2шт.
4
R18089
COVER - bearing block
1шт.
5
14-860
BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5
HHCS - 1/2" - 20 NF x 3-3/4" (R18089 mounting)
4шт.
6
92-8
LOCK WASHER,1/2"
4шт.
7
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
4шт.
8
R19661
BLOCK - bearing
2шт.
9
R18896
X
BEARING - sleeve
2шт.
10
R18145
LEVER - control
2шт.
11
R20328
PIN - groove
5шт.
12
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - adjustable
2шт.
13
R20192
PIN
- yoke
4шт.
14
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
4шт.
15
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
2шт.
16
R22243
ROD - equipment control, outer
1шт.
17
R22244
ROD
- equipment control, inner
1шт.
18
D31676
BELL CRANK - lever to equipment control valve, outer
1шт.
19
R22238
BEARING - sleeve
1шт.
20
D31677
BELL CRANK - lever to equipment control valve, inner
1шт.
21
R22238
BEARING - sleeve
1шт.
22
D31674
SPACER - bell crank
1шт.
23
R22297
SHAFT - bell crank
1шт.
24
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, 1/4" x 1 1/2", Slotted
1шт.
25
A30752
WASHER
- special
4шт.
26
R22267
LINK - equipment control valve section, float
2шт.
27
R22270
LINK - equipment control valve section, double acting
2шт.
28
R20192
PIN
- yoke
4шт.
29
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
4шт.
30
D31630
VALVE - hydraulic, equipment control (Used on dozer models without ripper) See Figure 320 for brekdown
1шт.
D31632
VALVE - hydraulic, equipment control (Used on loader counterweight models) See Figure 322 for breakdown
1шт.
31
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
(Valve mounting) Hex, 1/2"-13 x 4 1/2", G5
3шт.
32
92-8
LOCK WASHER,1/2"
3шт.
33
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
34
R22276
LEVER - equipment control, outer
1шт.
35
R22272
LEVER - equipment control, center
1шт.
36
R22271
LEVER - equipment control, inner
1шт.
37
31375
WASHER
BALL - grip
3шт.
38
R18089
COVER - bearing block
1шт.
39
14-860
BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5
HHCS - 1/2" - 20 NF x 3-3/4" (R18089 mounting)
4шт.
40
92-8
LOCK WASHER,1/2"
4шт.
41
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
4шт.
42
R18897
BLOCK - bearing
2шт.
43
R18896
X
BEARING - sleeve
3шт.
44
R18145
LEVER - control
3шт.
45
R20328
PIN - groove
8шт.
46
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - adjustable
3шт.
47
R20192
PIN
- yoke
6шт.
48
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
6шт.
49
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
3шт.
50
R22243
ROD - equipment control, outer
1шт.
51
R22244
ROD
- equipment control, center
1шт.
52
R22240
ROD - equipment control, inner
1шт.
53
D31676
BELL CRANK - lever to equipment control valve, outer
1шт.
54
R22238
BEARING - sleeve
1шт.
55
D31677
BELL CRANK - lever to equipment control valve, center
1шт.
56
R22238
BEARING - sleeve
1шт.
57
D31678
BELL CRANK - lever to equipment control valve, inner
1шт.
58
R22238
BEARING - sleeve
1шт.
59
R22297
SHAFT - bell crank
1шт.
60
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, 1/4" x 1 1/2", Slotted
1шт.
61
A30752
WASHER
- special
6шт.
62
R22269
LINK
- equipment control valve section, float
4шт.
63
R22270
LINK - equipment control valve section, double acting
2шт.
64
R20192
PIN
- yoke
6шт.
65
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
6шт.
66
D31631
VALVE - hydraulic, equipment control (Used on dozers with dual pull behinds or ripper) See Figure 320 for breakdown
1шт.
D31633
LOCK VALVE
VALVE - hydraulic, equipment control (Used on loader models with ripper, log loader or clam type bucket) See Figure 322 for breakdown
1шт.
67
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
(Valve mounting) Hex, 1/2"-13 x 4 1/2", G5
3шт.
68
92-8
LOCK WASHER,1/2"
3шт.
69
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
Выбрано товаров: 71
