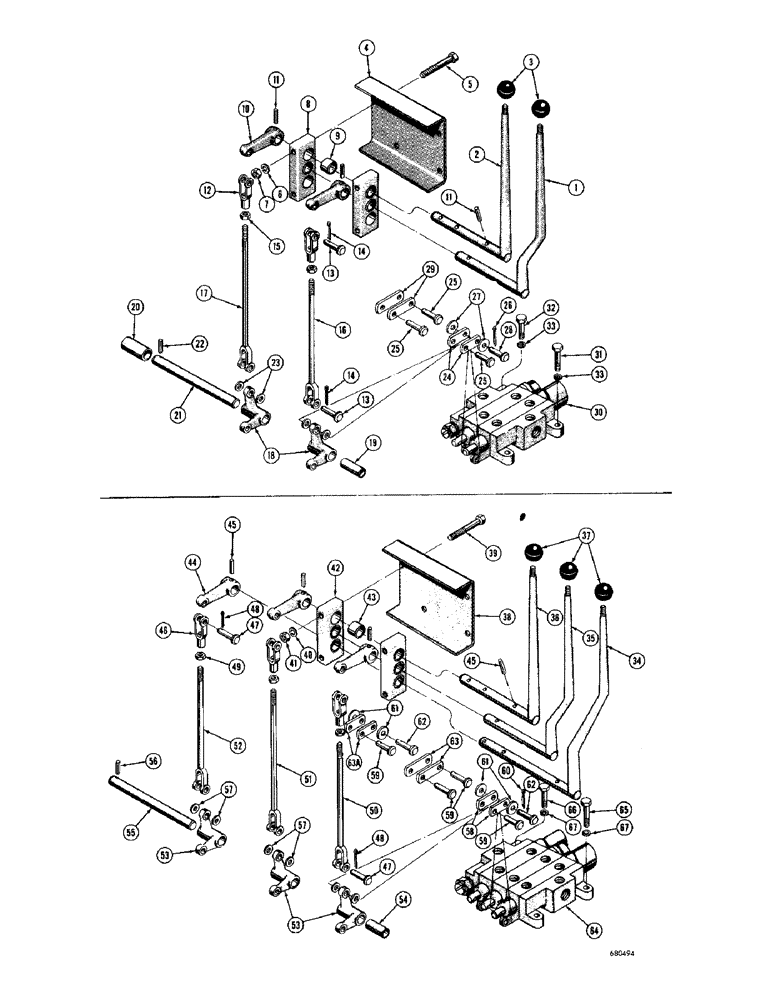

Запчасти Case 1000D (272) - EQUIPMENT CONTROL LEVERS AND VALVES, USED BEFORE TRACTOR SN. 7104771 (05) - UPPERSTRUCTURE CHASSIS

1

R22272

LEVER - equipment control, outer

1шт.

2

R22271

LEVER - equipment control, inner

1шт.

3

CAS31375

KNOB

BALL - grip

2шт.

4

R18089

COVER - bearing block

1шт.

5

14-860

BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5

HHCS - 1/2" - 20 NF x 3-3/4" (R18089 mounting)

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

8

R19661

BLOCK - bearing

2шт.

9

R18896

X

BEARING - sleeve

2шт.

10

R18145

LEVER - control

2шт.

11

R20328

PIN - groove

5шт.

12

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable

2шт.

13

R20192

PIN

- yoke

4шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

15

25-118

NUT,1/2"-20, G5

- hex., 1/2" - 20 NF

2шт.

16

R22243

ROD - equipment control, outer

1шт.

17

R22244

ROD

- equipment control, inner

1шт.

18

R22239

BELLCRANK - lever to equipment control valve

2шт.

19

R22238

BEARING - sleeve

1шт.

20

32195

SPACER - bellcrank

1шт.

21

R22297

SHAFT - bellcrank (Order 1 - R22297 shaft, 1 - 138-65 roll pin & 1 - 138-138 roll pin for service)

1шт.

22

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, (Early production) 1/8" x 1 1/2", Slotted

1шт.

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, (Late production) 1/4" x 1 1/2", Slotted

1шт.

23

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

4шт.

24

R22269

LINK

- equipment control valve section, float

2шт.

25

R22559

PIN - yoke

3шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

27

R22608

WASHER - special

2шт.

28

R22609

PIN - yoke

1шт.

29

R22270

LINK - equipment control valve section, double acting

2шт.

30

R22252

1шт.

VALVE - hydraulic, equipment control (Used on dozer models without ripper or pull behinds, or loader counterweight models without log loader or clam type bucket before tractor serial no. 7104145) See Figure 312 for breakdown (When stock is exhausted, use D30151 valve for service)

1шт.

D30151

1шт.

VALVE - hydraulic, equipment control (Used on dozer models without ripper or pull behinds, or loader counterweight models without log loader or clam type bucket before tractor serial no. 7104145) See Figure 312 for breakdown (When stock is exhausted, use D30151 valve for service)

1шт.

31

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4" (Valve mounting)

2шт.

32

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2" (Valve mounting)

1шт.

33

92-8

LOCK WASHER,1/2"

3шт.

34

R22276

LEVER - equipment control, outer

1шт.

35

R22272

LEVER - equipment control, center

1шт.

36

R22271

LEVER - equipment control, inner

1шт.

37

31375

WASHER

BALL - grip

3шт.

38

R18089

COVER - bearing block

1шт.

39

14-860

BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5

HHCS - 1/2" - 20 NF x 3-3/4" (R18089 mounting)

4шт.

40

92-8

LOCK WASHER,1/2"

4шт.

41

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

42

R18897

BLOCK - bearing

2шт.

43

R18896

X

BEARING - sleeve

3шт.

44

R18145

LEVER - control

3шт.

45

R20328

PIN - groove

8шт.

46

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable

3шт.

47

R20192

PIN

- yoke

6шт.

48

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

49

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

3шт.

50

R22243

ROD - equipment control, outer

1шт.

51

R22244

ROD

- equipment control, center

1шт.

52

R22240

ROD - equipment control, inner

1шт.

53

R22239

BELLCRANK - lever to equipment control valve

3шт.

54

R22238

BEARING - sleeve

1шт.

55

R22297

SHAFT - bellcrank (Order 1 - R22297 shaft, 1 - 138-65 roll pin & 1 - 138-138 roll pin for service)

1шт.

56

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, (Early production) 1/8" x 1 1/2", Slotted

1шт.

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, (Late production) 1/4" x 1 1/2", Slotted

1шт.

57

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

6шт.

58

R22269

LINK

- valve to center control lever

2шт.

59

R22559

PIN - yoke

4шт.

60

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

61

R22608

WASHER - special

4шт.

62

R22609

PIN - yoke

2шт.

63

R22270

LINK - valve to inner control lever

2шт.

63a

R22269

LINK

- valve to outer control lever (R22227 and D30150 valve only)

2шт.

R22270

LINK - valve to outer control lever (D31137 valve only)

2шт.

64

R22227

VALVE - hydraulic, equipment control (Used on dozer models with ripper or pull behinds, or loader models with ripper or log loader before tractor serial no. 7104145) See Figure 312 for breakdown (When stock is exhausted, use D30150 valve for service)

1шт.

D31137

VALVE - hydraulic, equipment control (Used on loader models with clam type bucket before tractor serial no. 7104771) See Figure 316 for breakdown

1шт.

D30150

VALVE - hydraulic, equipment control (Used on dozer models with ripper or pull behinds, or loader models with ripper or log loader from tractor serial no. 7104145 and up to tractor serial no. 7104771) See Figure 316 for breakdown

1шт.

65

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4" (Valve mounting)

2шт.

66

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2" (Valve mounting)

1шт.

67

92-8

LOCK WASHER,1/2"

3шт.
