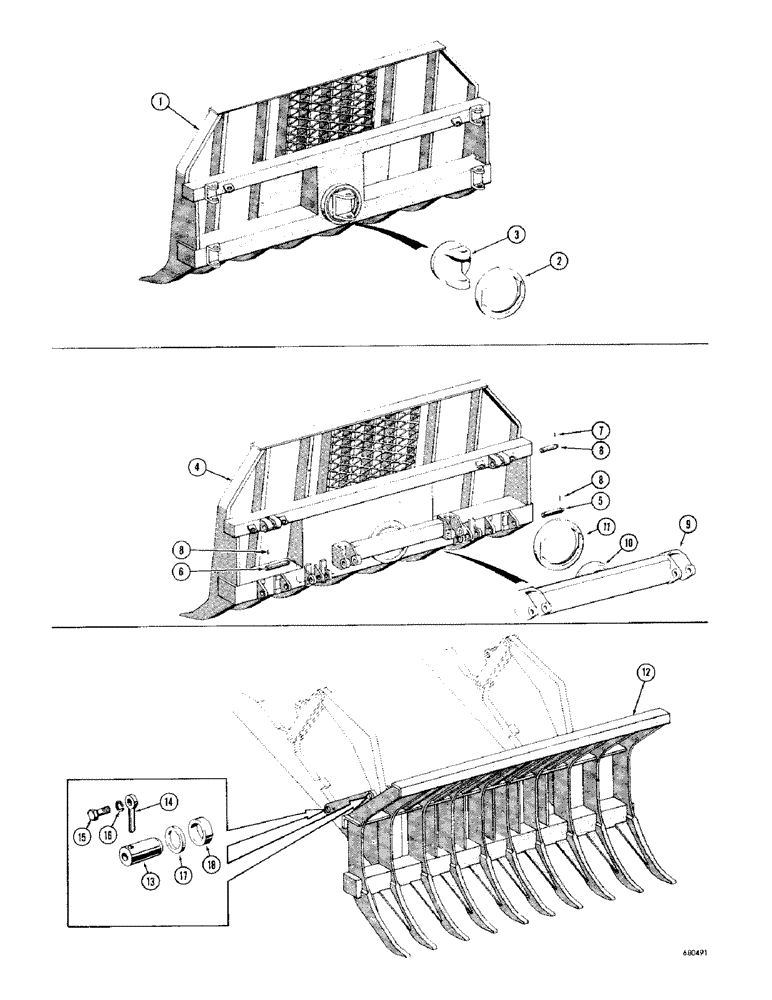

Запчасти Case 1000D (254) - BRUSH RAKE AND STACKER (05) - UPPERSTRUCTURE CHASSIS

1

R11289

RAKE - brush, power angling dozer (Machinery item)

1шт.

R2594

PIVOT

KIT - brush rake swivel

1шт.

2

NSS

NOT SOLD SEPARAT

RING - swivel retaining

1шт.

3

NSS

NOT SOLD SEPARAT

SWIVEL - pivot

1шт.

4

R2171

RAKE - brush, power tilt dozer (Machinery item)

1шт.

5

R10917

PIN - push beam, outer

2шт.

6

R10916

PIN - push beam, inner

2шт.

7

R10918

PIN - brush rake to strut and cylinder

2шт.

8

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

14шт.

R3703

X

KIT - lift beam swivel

1шт.

9

NSS

NOT SOLD SEPARAT

BEAM - lift

1шт.

10

NSS

NOT SOLD SEPARAT

SWIVEL - rake

1шт.

11

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.

12

R13541

STACKER - brush, loader models (Machinery item)

1шт.

R2796

KIT - pin

1шт.

13

R16675

AXLE PIN

PIN - mounting

4шт.

14

R17756

ROD,12.7mm OD x 109.54mm L

- pin retaining

4шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

R15112

SPACER

- dump and lift arm, 1/8" thick

4шт.

18

R14481

BUSHING

SPACER - dump and lift arm, 7/8" thick

4шт.
