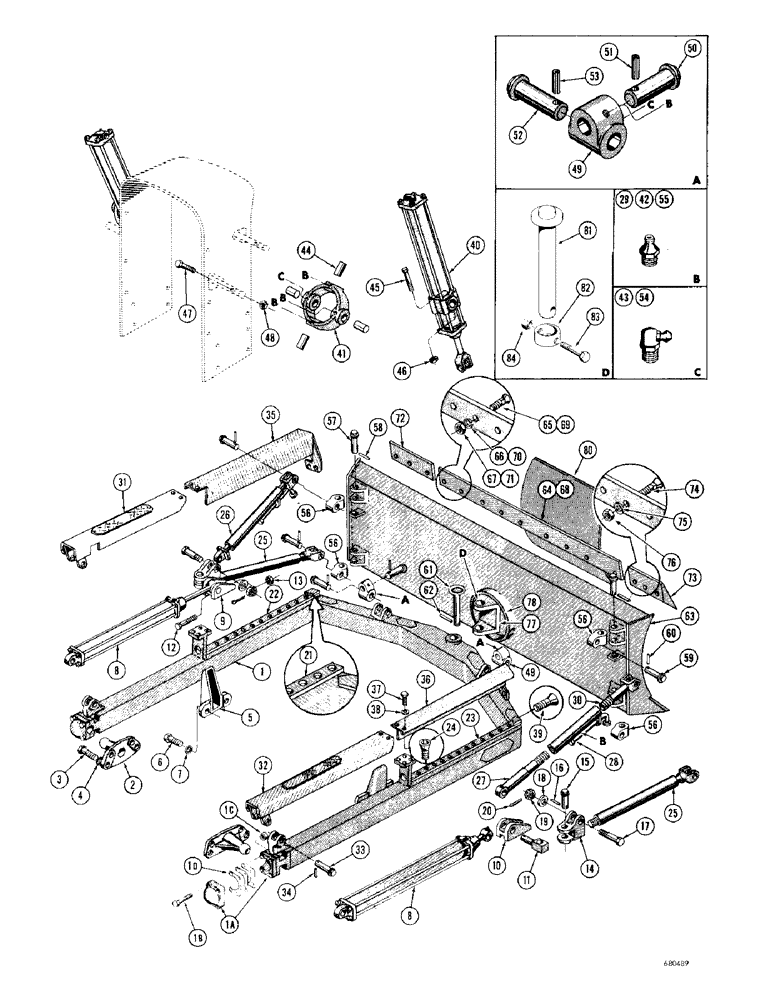

Запчасти Case 1000D (242) - POWER ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

R20551

"C" FRAME - hydraulic angling dozer (Order D29600 for service)

1шт.

D29600

"C" FRAME - hydraulic angling dozer

1шт.

70396

KIT

CAP ASSEMBLY - "C" frame

2шт.

1a

NSS

NOT SOLD SEPARAT

CAP AND BRACKET - "C" frame

1шт.

1b

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4"

4шт.

1c

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF)

4шт.

1d

70384

SHIM

- cap (1/32" thick)

1шт.

2

R18645

TRUNNION

- push

2шт.

3

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4" - 16 NF x 2-3/4" (R18645 mounting)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

R18648

PLATE - rub (When stock is exhausted, use D44191 plate for service)

2шт.

6

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4" (R18648 mounting)

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

R19345

CYLINDER

- hydraulic, moldboard angling (See Figure 300 for breakdown)

2шт.

9

R21027

BRACKET - slide, L.H. (When stock is exhausted, use D37535 slide bracket for service)

1шт.

D37535

BRACKET

- slide, L.H. (Service replacement)

1шт.

10

R21028

BRACKET - slide, R.H. (When stock is exhausted, use D37536 slide bracket for service)

1шт.

D37536

BRACKET

- slide, R.H. (Service replacement)

1шт.

11

R21017

PIN - strut (When stock is exhausted, use D35681 pin for service)

2шт.

D35681

PIN

- strut (Service replacement)

2шт.

12

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS - 3/8" - 24 NF x 3-1/2" (R21017 mounting)

2шт.

13

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" -24 NF)

2шт.

14

70316

BRACKET

- strut

2шт.

15

R18866

PIN

- special (Includes 1 - R10197 snap ring)

2шт.

16

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

17

70378

STAY

BOLT - strut

2шт.

18

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- standard wrot (1-1/16" I.D. x 2-1/2" O.D. x 11/64" thick)

2шт.

19

25-2316

SLOTTED NUT

- hex. castle (1" - 14 NF)

2шт.

20

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

21

R20547

PLATE - slide (Used before tractor serial #7104001)

2шт.

22

D29949

PLATE

& STOP BLOCK - slide, L.H. (Used on tractor serial #7104001 and after)

1шт.

23

D29950

PLATE & STOP BLOCK - slide, R.H. (Used on tractor serial #7104001 and after)

1шт.

24

164-135

HEX SOC SCREW,Flat Hd, 5/8" - 18 x 1 1/2"

- cap, flat head hex. socket (5/8" - 18 NF x 1-1/2") R20547, D29949 & D29950 mounting

20шт.

25

70343

STRUT - lower

2шт.

26

70412

STAY

STRUT - upper

2шт.

27

70340

SCREW

- blade crowning, L.H. thread (Bottom)

1шт.

28

D38515

TURNBUCKLE

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

1шт.

30

70337

SCREW

- blade crowning (Top)

1шт.

31

70401

GUARD - angling cylinder, L.H.

1шт.

32

70400

GUARD - angling cylinder, R.H.

1шт.

33

R18864

PIN

- mounting (Includes 1 - A27012 snap ring)

2шт.

34

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

35

R20537

GUARD - angling cylinder piston rod, L.H.

1шт.

36

R20538

GUARD - angling cylinder piston rod, R.H.

1шт.

37

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (70400, 70401, R20537 & R20538 mounting)

8шт.

38

92-8

LOCK WASHER,1/2"

8шт.

39

164-83

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 2

SCREW - cap, flat head hex. socket (5/8" - 11 NC x 2") R20537 & R20538 mounting

4шт.

40

R19299

CYLINDER - hydraulic, dozer lift (See Figure 302 for breakdown)

2шт.

70411

YOKE ASS'Y - lift cylinder

2шт.

41

NSS

NOT SOLD SEPARAT

YOKE - lift cylinder

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

3шт.

43

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

44

70333

PIN - yoke attaching

8шт.

45

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS - 3/8" - 24 NF x 4-1/2" (R19299 mounting)

4шт.

46

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

4шт.

47

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS - 3/8" - 24 NF x 3-1/2" (R19299 mounting)

4шт.

48

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

4шт.

49

70328

YOKE

JOINT - universal, lift cylinder attaching

2шт.

50

R18872

PIN

- mounting (Includes 1 - A27012 snap ring)

2шт.

51

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

52

R18864

PIN

- mounting (Includes 1 - A27012 snap ring)

2шт.

53

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

54

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

56

70315

UNIVERSAL JOINT

JOINT - universal, blade attaching

4шт.

57

R18864

PIN

- mounting (Includes 1 - A27012 snap ring)

4шт.

58

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

59

R18872

PIN

- mounting (Includes 1 - A27012 snap ring)

4шт.

60

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

61

70387

PIN

- moldboard swivel (If used) See items 81, 82, 83, and 84

1шт.

62

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, 3/8" x 3", Slotted

1шт.

63

R18992

MOLDBOARD - standard, 120" (Angling dozer only)

1шт.

R19022

MOLDBOARD - with pusher plate, 120" (Angling dozer only)

1шт.

64

70725

BLADE - center cutting (Order 1 - R22981 blade, 22 - 19-1036 plow bolts, 22 - 92-10 lockwashers, and 22 - 25-1010 nut for service)

1шт.

65

19-832

BOLT

- plow (1/2" - 13 NC x 2") 70725 mounting

22шт.

66

92-8

LOCK WASHER,1/2"

22шт.

67

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

22шт.

68

R22981

BLADE

- center cutting

1шт.

69

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow (5/8" - 11 NC x 2-1/4") R22981 mounting

22шт.

70

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

22шт.

71

25-1010

NUT,5/8"-11, G5

22шт.

72

70376

BLADE

- end cutting, L.H.

1шт.

73

70375

SHARE

BLADE - end cutting, R.H.

1шт.

74

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow (5/8" - 11 NC x 2-1/4") 70375 mounting

6шт.

75

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

76

25-1010

NUT,5/8"-11, G5

6шт.

R2594

PIVOT

KIT - swivel

1шт.

77

NSS

NOT SOLD SEPARAT

SWIVEL - pivot (Order R2594 for service)

1шт.

78

NSS

NOT SOLD SEPARAT

RING - swivel retaining (Order R2594 for service)

1шт.

D11671

NO LONGER SERVICED

KIT - angling dozer moldboard reinforcement, R18992 only (Field Installation) Not illustrated

1шт.

79

NSS

NOT SOLD SEPARAT

PLATE - moldboard (Order D11671 for service)

1шт.

80

R14502

PLATE - pusher (R19018 only)

1шт.

81

D37532

AXLE PIN

PIN - moldboard swivel (If used) See items 61 and 62

1шт.

82

D37529

COLLAR

- pin

1шт.

83

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

1шт.

84

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8" - 11 NC)

1шт.
