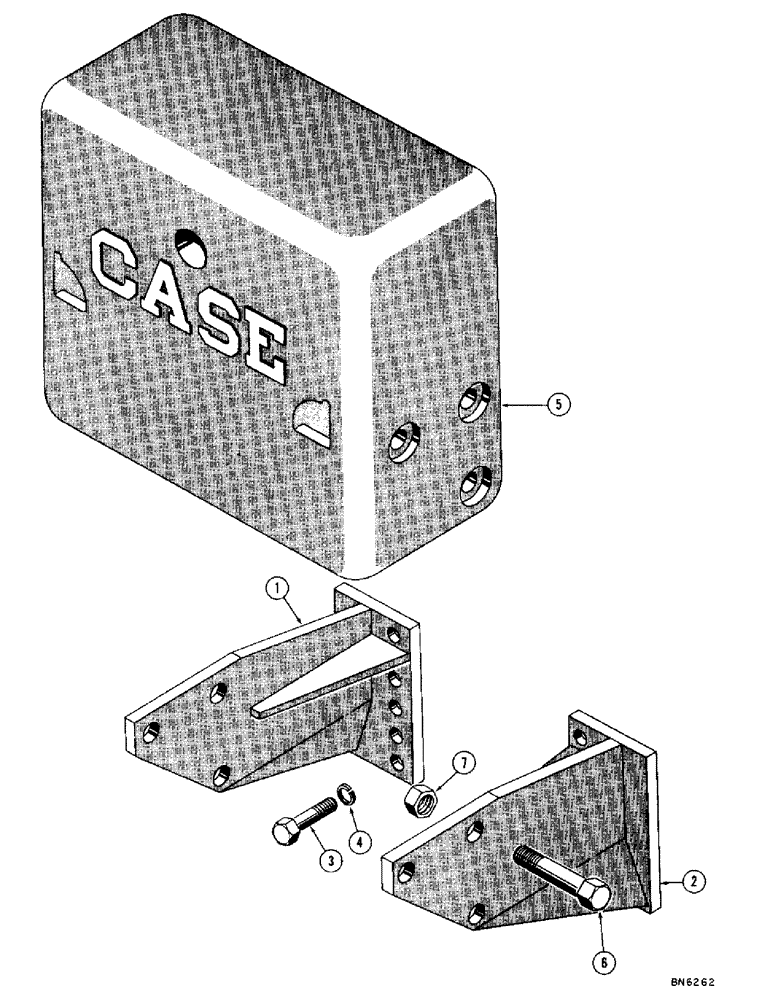

Запчасти Case 1000D (222) - LOADER COUNTERWEIGHT, COUNTERWEIGHT (2500 LBS.) (05) - UPPERSTRUCTURE CHASSIS

1

R22125

BRACKET - L.H.

1шт.

2

R22126

BRACKET - R.H.

1шт.

3

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4" (If used)

10шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(If used) Hex, 3/4"-10 x 2 1/4", G5

10шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

5

70982

COUNTERWEIGHT - 2500 lbs.

1шт.

6

14-1696

HHCS - 1" - 14 NF x 6" Hex, 1"-14 x 6, G5

6шт.

7

131-370

LOCK NUT

NUT - hex., lock (1" - 14 NF)

6шт.
