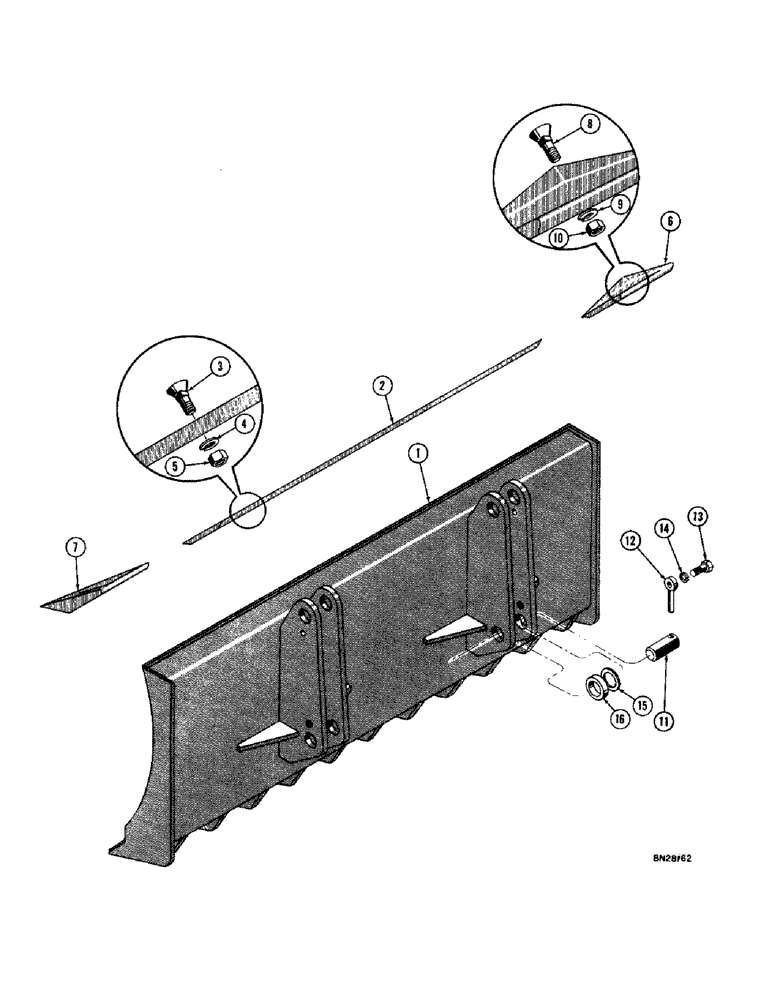

Запчасти Case 1000D (220) - LOADER DOZING BLADE (05) - UPPERSTRUCTURE CHASSIS

R14478

DOZER MOLDBOARD - Loader (Machinery item)

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - Loader, 96" wide

1шт.

2

16792

EDGE, CUTTING

BLADE - cutting, center (1/2" thick) If used

1шт.

D29981

BLADE

- cutting, center (5/8" thick) If used

1шт.

3

19-832

BOLT

- plow, 1/2" - 13 NC x 2" (16792 mounting)

18шт.

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4" (D29981 mounting)

18шт.

4

92-8

LOCK WASHER,1/2"

18шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

25-1010

NUT,5/8"-11, G5

18шт.

6

70441

BLADE

- cutting, R.H. end

1шт.

7

70442

BLADE

- cutting, L.H. end

1шт.

8

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

6шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

10

25-1010

NUT,5/8"-11, G5

6шт.

R2796

KIT - pin

1шт.

11

R16675

AXLE PIN

PIN - mounting

4шт.

12

R17756

ROD,12.7mm OD x 109.54mm L

- pin retaining

4шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

R15112

SPACER

- dump and lift arm, 1/8" thick

4шт.

16

R14481

BUSHING

SPACER - dump and lift arm, 7/8" thick

4шт.
