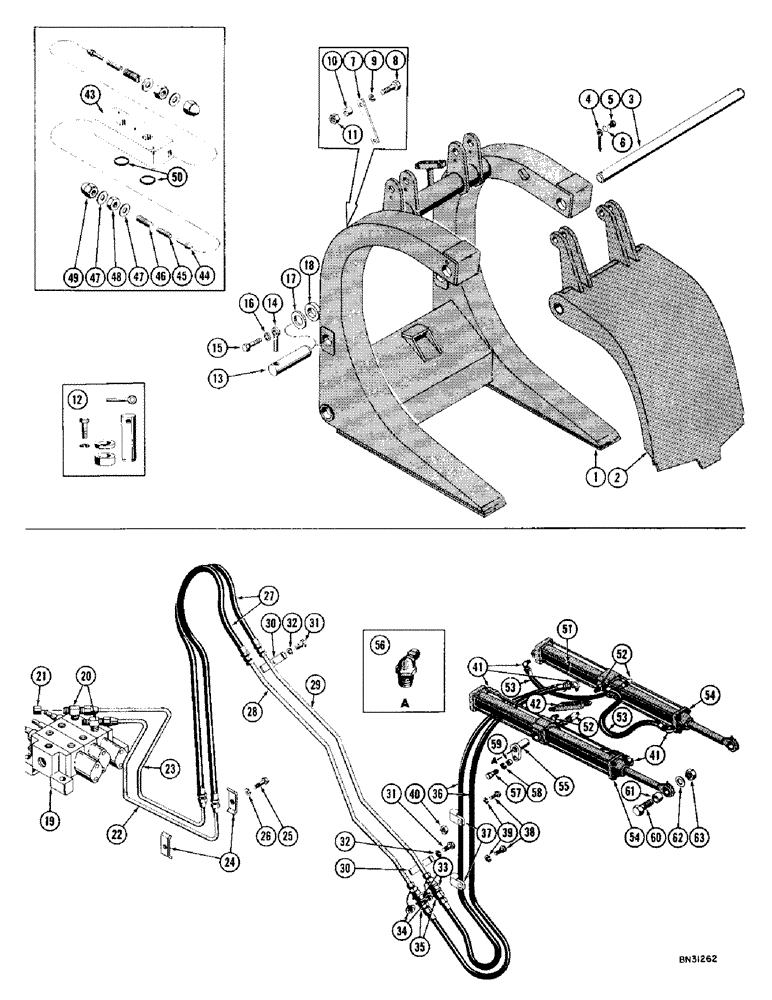

Запчасти Case 1000D (218) - LOG LOADER AND FLIPPER (05) - UPPERSTRUCTURE CHASSIS

1

R16380

LOG LOADER - main frame (Order with 1 - R18477 stop for service)

1шт.

2

R16379

FLIPPER

1шт.

3

R16378

SHAFT - flipper to main frame

1шт.

4

A10615

LOCK ASSY

PIN - lock

2шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(A10615 mounting) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

R16776

ANCHOR - hose

1шт.

8

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS - 1/2" - 20 NF x 3" (R16776 mounting)

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

R16777

SPACER - hose anchor

2шт.

11

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

12

R2796

KIT - pin

1шт.

13

R16675

AXLE PIN

PIN

4шт.

14

R17756

ROD,12.7mm OD x 109.54mm L

- end

4шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

R15112

SPACER

- 1/8" thick

4шт.

18

R14481

BUSHING

SPACER - 7/8" thick

4шт.

19

REF

INSTRUCTION

VALVE - equipment control (See Figures 272 thru 276 for proper valve)

1шт.

20

R22452

TEE - special, 1" NPT x 5/8" JIC x 5/8" JIC

2шт.

21

218-756

CAP,37 Degree, 7/8"-14

Tube, 5/8" JIC (Used on Loader Counterweight models only) 37º, 7/8"-14

2шт.

22

R22450

TUBE - equipment control valve front port, to relief valve front port

1шт.

23

R22448

TUBE - equipment control valve rear port, to relief valve rear port

1шт.

24

R16916

CLAMP - hose and tube

3шт.

25

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2" (R16916 mounting)

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

R15559

HOSE - equipment control valve to relief valve (62-1/2" long)

2шт.

28

R15841

TUBE - equipment control valve front port, to relief valve front port

1шт.

29

R15543

TUBE - equipment control valve rear port, to relief valve rear port

1шт.

30

R16917

CLAMP - tube

1шт.

31

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2" (R16917 mounting)

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

R12203

SOCKET - quick disconnect

2шт.

34

R12205

CAP - dust, quick disconnect

2шт.

35

R12204

PLUG - dust, quick disconnect

2шт.

36

R15557

HOSE - equipment control valve to relief valve (98" long)

2шт.

37

R14097

CLAMP

- hose

2шт.

38

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4" (R10497 mounting)

2шт.

39

92-8

LOCK WASHER,1/2"

2шт.

40

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

41

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT x 5/8" JIC

6шт.

42

D23827

VALVE - double relief

1шт.

43

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

44

16227

HOSE

POPPET - relief valve

2шт.

45

16404

SPRING CUP

SPRING - relief valve

2шт.

46

NLS

NO LONGER SERVICED

SCREW - adjusting

2шт.

47

16219

GASKET

- lead copper

4шт.

48

25-119

NUT,9/16"-18, G5

- hex. (9/16" - 18 NF)

2шт.

49

48355

NUT - cap

2шт.

50

D21922

O-RING

SEAL - "O" ring

2шт.

51

62-624

SHCS - 3/8" - 24 NF x 1-1/2" (D23827 mounting)

3шт.

52

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 1/2" NPT x 5/8" JIC

4шт.

53

R15843

HOSE ASSY.

HOSE - relief valve to flipper cylinder (17" long)

4шт.

54

R16710

CYLINDER - hydraulic, flipper (See Figure 298 for breakdown)

2шт.

55

35031

PIN

- cylinder attaching

4шт.

56

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees, 1/8" NPT

4шт.

57

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (35031 mounting)

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

D23740

BUSHING

2шт.

60

14-1672

BOLT,Hex, 1" - 14 x 4-1/2", Gr 5

HHCS - 1" - 14 NF x 4-1/2" (R16710 mounting)

2шт.

61

30959

BUSHING - hydraulic cylinder

2шт.

62

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

2шт.

63

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.
