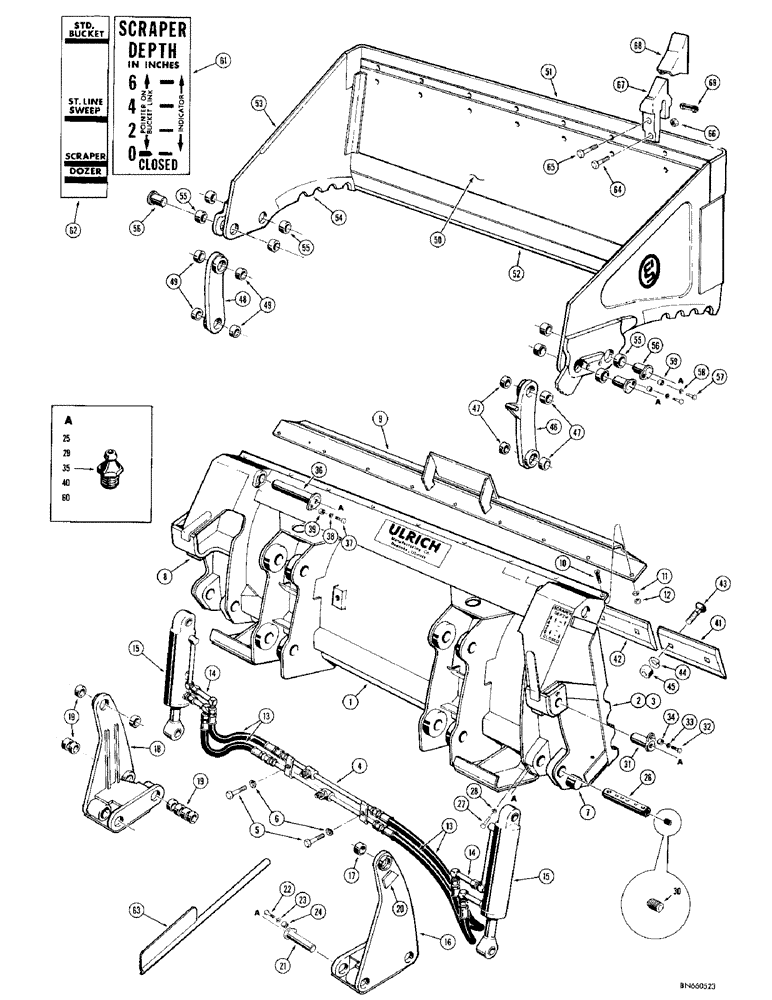

Запчасти Case 1000D (214) - ULRICH MULTI-PURPOSE BUCKET (1-3/4 CU. YD.) (05) - UPPERSTRUCTURE CHASSIS

D39244

ULRICH BUCKET - without teeth (1-3/4 cu. yard) Machinery item

1шт.

D39344

BLADE ASSEMBLY - bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39439

WEAR BAR - blade, R.H.

1шт.

3

D39438

WEAR BAR - blade, L.H.

1шт.

4

D39084

TUBE - valve to clam cylinder

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

D39339

STOP - clam

2шт.

8

D39340

STOP - bellcrank

2шт.

9

D39429

SPILL GUARD - blade

1шт.

10

21-616

BOLT - step (3/8" - 16 NC x 1")

9шт.

11

92-6

LOCK WASHER,3/8"

9шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

9шт.

13

D33346

HOSE

- tube to clam cylinders (25" long)

4шт.

14

D38877

TUBE - to clam cylinders

4шт.

15

D39349

CYLINDER - hydraulic (Parts list Figure 296)

2шт.

16

D39433

BELLCRANK - R.H.

1шт.

17

D39354

BUSHING - bellcrank

8шт.

18

D39354

BELLCRANK - L.H.

1шт.

19

D39336

BUSHING - bellcrank

8шт.

20

D39346

STOP BLOCK - clam

2шт.

21

D39424

PIN -, Serial Range: bellcrank-cylinder

2шт.

22

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

D40607

BUSHING - pin bolt

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

26

D39337

PIN -, Serial Range: bellcrank-blade

2шт.

27

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

30

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT)

2шт.

31

D39427

PIN -, Serial Range: link-blade

2шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

D40607

BUSHING - pin bolt

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

36

D39426

PIN -, Serial Range: blade-cylinder

2шт.

37

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

D40607

BUSHING - pin bolt

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

41

D39054

POINT

CUTTING EDGE - end

2шт.

42

D39352

CUTTING EDGE - center

1шт.

43

19-1236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 5

BOLT - plow (3/4" - 10 NC x 2-1/4")

14шт.

44

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

14шт.

45

25-1012

NUT,3/4"-10, G5

14шт.

46

D39335

LINK - blade to clam, R.H.

1шт.

47

D39336

BUSHING - link

4шт.

48

D39437

LINK - blade to clam, L.H.

1шт.

49

D39336

BUSHING - link

4шт.

D39431

CLAM ASSEMBLY - bucket

1шт.

50

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

51

D39442

CUTTING EDGE - center, front

1шт.

52

D39440

CUTTING EDGE - center, rear

1шт.

53

D39345

CUTTING EDGE - side, front

2шт.

54

D39343

CUTTING EDGE - side, rear

2шт.

55

D39336

BUSHING - clam

8шт.

56

D39425

SHIFTER ROLLER

PIN - link and, Serial Range: bellcrank-clam

4шт.

57

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

D40607

BUSHING - pin bolt

4шт.

60

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

61

D39064

DECAL - scraper depth

1шт.

62

D39428

DECAL - bucket position indicator

1шт.

63

D39069

TUBE - position indicator

1шт.

D41316

TOOTH SET - bucket (Machinery item)

1шт.

64

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8" - 18 NF x 3", bucket tooth (optional)

8шт.

65

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4", bucket tooth (optional)

8шт.

66

131-13

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF), bucket tooth (optional)

16шт.

D41370

TOOTH ASSEMBLY - bucket, tooth (optional)

8шт.

67

NSS

NOT SOLD SEPARAT

SHANK - tooth, (optional)

1шт.

68

D39090

POINT

- tooth (optional)

1шт.

69

D39448

PIN

FLEX PIN - point, bucket tooth (optional)

1шт.
