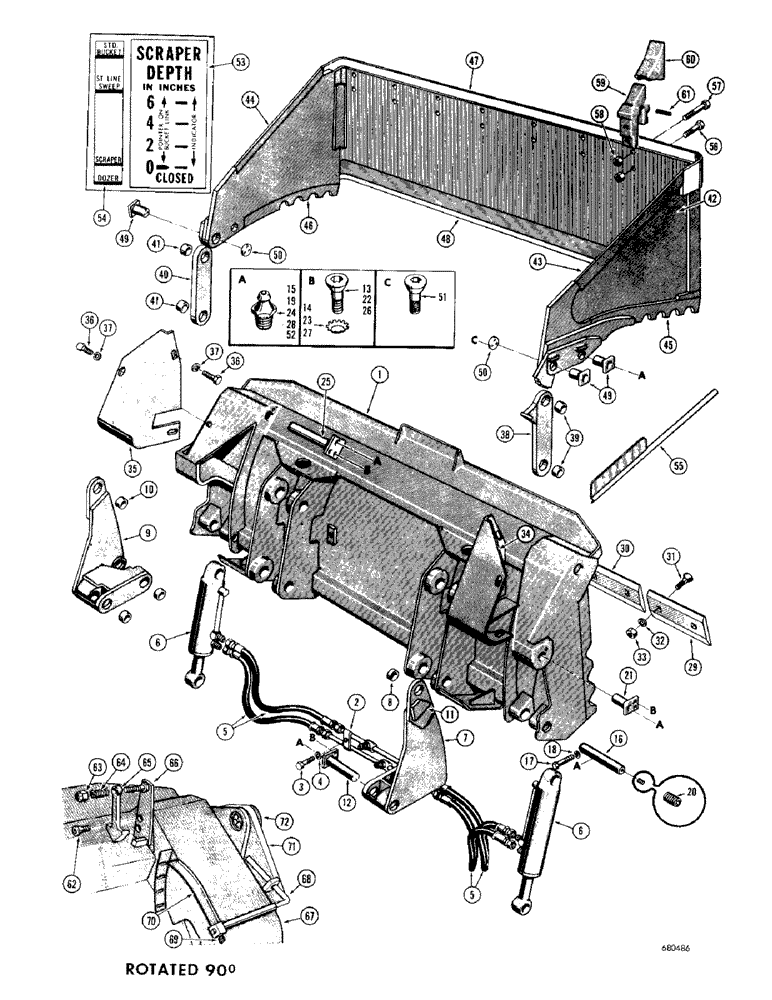

Запчасти Case 1000D (210) - ULRICH MULTI-PURPOSE BUCKET (1-1/2 CU. YD.) (05) - UPPERSTRUCTURE CHASSIS

D12130

ULRICH BUCKET - without teeth (1-1/2 cu. yard) Machinery item

1шт.

D38876

BLADE ASSEMBLY - bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39084

TUBE - valve to clam cylinder

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC X 1-1/2"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D33346

HOSE

- tube to clam cylinders (25" long)

4шт.

6

D38853

HYDRAULIC CYLINDER

CYLINDER - hydraulic, clam (Parts list Figure 294)

2шт.

7

D38850

BELL CRANK - R.H.

1шт.

8

D38849

BUSHING

- bell crank

4шт.

9

D38848

BELLCRANK

BELL CRANK - L.H.

1шт.

10

D38849

BUSHING

- bell crank

4шт.

11

D39065

STOP BLOCK - clam

2шт.

12

D39060

PIN - bell, Serial Range: crank-cylinder

2шт.

13

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

- flat head hex. socket (1/2" - 13 NC x 3/4")

4шт.

14

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2")

4шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

16

D39062

PIN - bell, Serial Range: crank-blade

2шт.

17

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

20

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT)

2шт.

21

D39061

PIN -, Serial Range: link-blade

2шт.

22

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

- flat head hex. socket (1/2" - 13 NC x 3/4")

4шт.

23

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2")

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

25

D39059

PIN -, Serial Range: blade-cylinder

2шт.

26

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

- flat head hex. socket (1/2" - 13 NC x 3/4")

4шт.

27

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2")

4шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

29

D39054

POINT

CUTTING EDGE - end

2шт.

30

D39055

CUTTING EDGE - center

1шт.

31

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

BOLT - plow (3/4" - 10 NC x 2-1/2")

13шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

13шт.

33

25-1012

NUT,3/4"-10, G5

13шт.

34

D39184

GUARD - cylinder, R.H.

1шт.

35

D39056

GUARD - cylinder, L.H.

1шт.

36

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

8шт.

37

92-8

LOCK WASHER,1/2"

8шт.

38

D39182

LINK - blade to clam, R.H.

1шт.

39

D38849

BUSHING

- link

2шт.

40

D38851

LINK - blade to clam, L.H.

1шт.

41

D38849

BUSHING

- link

2шт.

D38869

CLAM ASSEMBLY - bucket

1шт.

42

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

43

D38871

WEAR BAR - clam front, R.H.

1шт.

44

D38870

WEAR BAR - clam front, L.H.

1шт.

45

D38875

CUTTING EDGE - clam rear, R.H.

1шт.

46

D38874

CUTTING EDGE - clam rear, L.H.

1шт.

47

D38872

CUTTING EDGE - front

1шт.

48

D39079

CUTTING EDGE - rear

1шт.

49

D39063

PIN

- link and bell, Serial Range: crank-clam

4шт.

50

D39058

PLATE

RETAINING PLATE - pin

4шт.

51

164-98

HEX SOC SCREW,Prev Torque, Flat Hd, 3/8" - 16 x 3/4"

SCREW - flat head hex. socket, lock (3/8" - 16 NC x 3/4")

12шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

53

D39064

DECAL - scraper depth

1шт.

54

D39073

DECAL - bucket position indicator

1шт.

55

D39069

TUBE - position selector

1шт.

D12251

TOOTH SET - bucket (Machinery item)

1шт.

56

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4", bucket teeth (optional)

8шт.

57

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8" - 18 NF x 3-3/4", bucket teeth (optional)

8шт.

58

131-13

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF), bucket teeth (optional)

16шт.

D40202

TOOTH ASSEMBLY - bucket, teeth (optional)

8шт.

59

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket, optional

1шт.

60

D39090

POINT

- tooth, bucket, optional

1шт.

61

D39448

PIN

FLEX PIN - point, bucket teeth (optional)

1шт.

62

164-72

SCREW - flat head, hex. socket (1/2" - 13 NC x 1-1/4"), bucket position indicator, used before bucket serial no. G108H-812

2шт.

D39050

BOB ASSEMBLY - bucket position indicator, used before bucket serial no. G108H-812

1шт.

63

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Bucket position indicator, used before bucket S/N G108H-812 1/2"-13, GB

1шт.

64

D39053

SPRING - bob, bucket position indicator, used before bucket serial no. G108H-812

1шт.

65

D39052

BOB - bucket position indicator, bucket position indicator, used before bucket serial no. G108H-812

1шт.

66

D39051

BRACKET - bob, bucket position indicator, used before bucket serial no. G108H-812

1шт.

67

D39057

GUARD - cylinder, R.H., bucket position indicator, used before bucket serial no. G108H-812

1шт.

68

D39067

ROD - pointer, bucket position indicator, used before bucket serial no. G108H-812

1шт.

69

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, cup point (3/8" - 16 NC x 3/8"), bucket position indicator, used before bucket serial no. G108H-812

1шт.

70

D39066

POINTER - clam position indicator, bucket, used before bucket serial no. G108H-812

1шт.

71

D38852

LINK - blade to clam, R.H., bucket position indicator, used before bucket serial no. G108H-812

1шт.

72

D38849

BUSHING

- link, bucket position indicator, used before bucket serial no. G108H-812

2шт.
