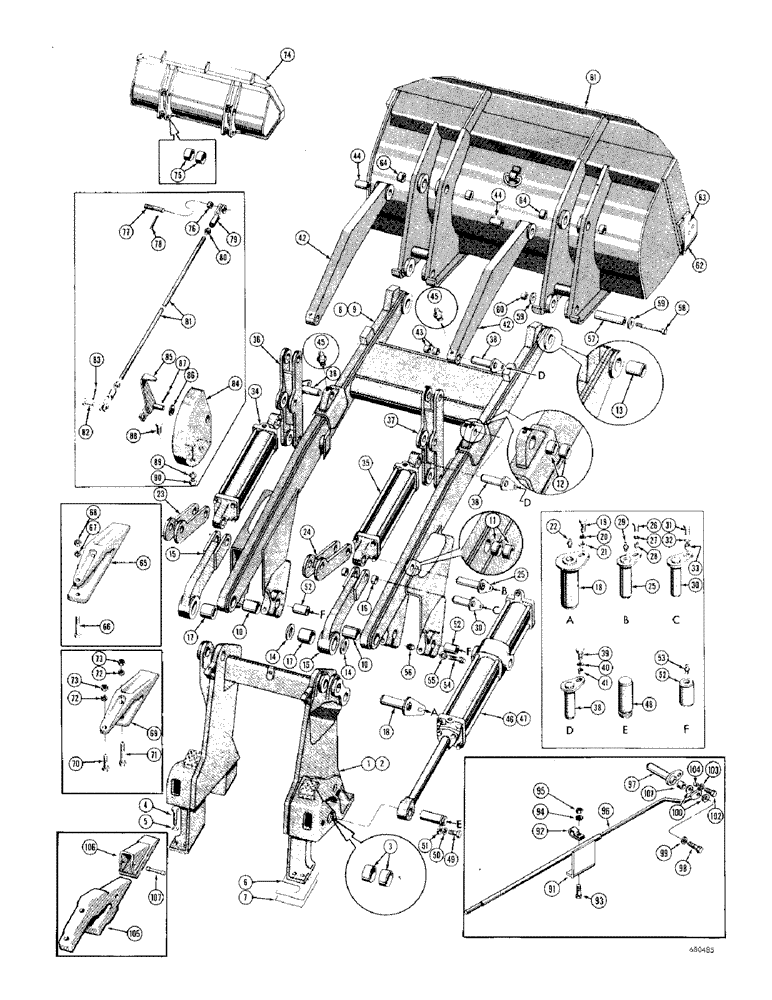

Запчасти Case 1000D (202) - LOADER (05) - UPPERSTRUCTURE CHASSIS

1

R18831

FRAME - upright (Used before tractor serial #7104001) Order D29764 for service

1шт.

2

D29764

FRAME - upright (Used on tractor serial #7104001 and after)

1шт.

3

70466

BUSHING

- upright frame, 2.510" O.D. x 2.028" I.D. (When stock is exhausted, use D23203 for service)

4шт.

D23203

BUSHING

- upright frame, 2.498" O.D. x 2.015" I.D

4шт.

4

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1" - 14 NF x 2-3/4" R18891 and D29764 mounting)

16шт.

5

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

16шт.

6

73169

SHIM - 16 gauge

1шт.

7

73170

SHIM

- 10 gauge

1шт.

8

R18690

FRAME - loader lift (Used before tractor serial #7104001 Order D29762 for service

1шт.

9

D29762

FRAME - loader lift (Used on tractor serial #7104001 and after)

1шт.

10

R14259

BUSHING - lift frame, at upright frame

2шт.

11

72973

BUSHING

- lift frame, at rear dump linkage

4шт.

12

72936

BUSHING

- lift frame, at front dump linkage

4шт.

13

R13421

BUSHING

- lift frame, at bucket

2шт.

14

74298

WASHER

SPACER - alignment

1шт.

15

R20088

ARM - leveling

2шт.

16

72973

BUSHING

- leveling arm, front

2шт.

17

R14259

BUSHING - leveling arm, rear

1шт.

18

R14702

PIN - mounting, lift frame and leveling arm to upright frame

4шт.

19

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(R14702 mounting) Hex, 5/8"-18 x 1 3/4", G5

4шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

195-41

WASHER,5/8"

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

4шт.

23

R19449

LEVER - leveling, L.H.

1шт.

24

R19450

LEVER - leveling, R.H.

1шт.

25

R18680

PIN - mounting, lever to lift frame

2шт.

26

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (R18680 mounting)

2шт.

27

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

28

D23740

BUSHING

- pin bolt

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

30

R15288

PIN - mounting, lever to hydraulic dump cylinder

2шт.

31

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (R15288 mounting)

2шт.

32

193-22

LOCK WASHER,Int Tooth, #4

WASHER - Shakeproof lock, internal tooth (1/2")

2шт.

33

D23740

BUSHING

- pin bolt

2шт.

34

R19755

CYLINDER - hydraulic, L.H. dump (5" I.D. x 22-3/16" stroke) Used before tractor serial no. 7106273 (See Figure 288 for breakdown) If desired this cylinder can be serviced by (1) D36685 and (1) D36686 cylinder

1шт.

D36685

CYLINDER - hydraulic, L.H. dump (5" I.D. x 19-15/16" stroke) Used on tractor serial no. 7106273 and after (See Figure 290 for breakdown)

1шт.

35

R19756

CYLINDER - hydraulic, R.H. dump (5" I.D. x 22-3/16" stroke) Used before tractor serial no. 7106273 (See Figure 288 for breakdown) If desired this cylinder can be serviced by (1) D36685 and (1) D36686 cylinder

1шт.

D36686

CYLINDER - hydraulic, R.H. dump (5" I.D. x 19-15/16" stroke) Used on tractor serial no. 7106273 and after (See Figure 290 for breakdown)

1шт.

36

R13198

LEVER - leveling, L.H.

1шт.

37

R13199

LEVER - leveling, R.H.

1шт.

38

R14705

PIN - mounting, dump cylinder to lever, lift frame to lever, and lever to dump arm (See ref. no. 97)

6шт.

39

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (R14705 mounting)

6шт.

40

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

41

D23740

BUSHING

- pin bolt

6шт.

42

R17495

ARM - dump

2шт.

43

72973

BUSHING

- dump arm, rear

2шт.

44

R13421

BUSHING

- dump arm, front

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

4шт.

46

R13565

CYLINDER ASSY.

CYLINDER - lift, used before tractor serial #7104001 (See Figure 284 for breakdown) Order D29647 for service

2шт.

47

D29647

CYLINDER ASSY.

CYLINDER - lift, used on tractor serial #7104001 and after (See Figure 286 for breakdown)

2шт.

48

70524

PIN

- mounting, lift cylinder to upright frame

2шт.

49

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (70524 mounting)

2шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

51

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

2шт.

52

72972

PIN - mounting, lift cylinder to lift frame

4шт.

53

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - straight grease, 1/4" NPT

4шт.

54

14-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

HHCS - 3/4" - 16 NF x 5-1/2" (72972 mounting)

4шт.

55

73092

WASHER - pin retaining

4шт.

56

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4" - 16 NF)

4шт.

57

R13427

PIN

- pivot, lift frame and dump, Serial Range: arm-bucket

4шт.

58

14-12148

HHCS - 3/4" - 16 NF x 9-1/4" (R13427 mounting) Used with 2" dia. x 7-7/8" pin

4шт.

13-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

HHCS - 3/4" - 10 NC x 9-1/2" (R13427 mounting) Used with 2" dia. x 8-1/16" pin

4шт.

59

72915

GASKET

- pin retaining

8шт.

60

230-46112

LOCK NUT,3/4"-16, GA

NUT - hex., lock (3/4" - 16 NF)

4шт.

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

61

R19763

BUCKET - 1-1/8 yd., heavy duty with teeth (Machinery item)

1шт.

R19762

BUCKET - 1-1/2 yd., standard with teeth (Machinery item)

1шт.

R17634

BUCKET - 1-1/8 yd., heavy duty without teeth (R19763 only) Machinery item

1шт.

R13438

BUCKET - 1-1/2 yd., standard without teeth (R19762 only) Machinery item

1шт.

62

R19144

EDGE - cutting (R17634 only)

1шт.

72855

BLADE

EDGE - cutting (R13438 only)

1шт.

63

46-840

RIVET,Pop, 1/2" x 2 1/2"

- 1/2" dia. x 2-1/2" (R17634 only)

34шт.

46-836

RIVET,Csk, 1/2" x 2 1/4"

- 1/2" dia. x 2-1/4" (R13438 only) Early production

25шт.

46-836

RIVET,Csk, 1/2" x 2 1/4"

- 1/2" dia. x 2-1/4" (R13438 only) Late production

19шт.

46-840

RIVET,Pop, 1/2" x 2 1/2"

- 1/2" dia. x 2-1/2" (R13438 only) Late production

6шт.

64

R14220

BUSHING

- bucket ear

8шт.

65

R18804

TOOTH - bucket (R19763 only)

8шт.

66

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2" - 20 NF x 3-1/2" (R18804 mounting)

16шт.

67

92-8

LOCK WASHER,1/2"

16шт.

68

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

16шт.

69

R18502

TOOTH

- bucket (R19762 mounting)

7шт.

70

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4" (R18502 mounting)

7шт.

71

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4" (R18502 mounting)

7шт.

72

92-8

LOCK WASHER,1/2"

14шт.

73

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

14шт.

74

R17559

BUCKET - 2-1/2 yd., light (Machinery item)

1шт.

75

R14220

BUSHING

- bucket ear

8шт.

76

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF), bucket indicator (used before tractor serial no. 7105760)

1шт.

77

74061

STUD - special, bucket indicator (used before tractor serial no. 7105760)

1шт.

78

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Bucket indicator (used before tractor S/N 7105760) 3/32" x 1/2"

1шт.

79

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, bucket indicator (used before tractor serial no. 7105760)

2шт.

80

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8" - 24 NF), bucket indicator (used before tractor serial no. 7105760)

2шт.

81

74054

ROD - indicator, bucket indicator (used before tractor serial no. 7105760)

1шт.

82

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Bucket indicator (used before tractor S/N 7105760) 3/8" x 1.060"

1шт.

83

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", bucket indicator (used before tractor serial no. 7105760)

1шт.

84

74056

SPARE PART

HOUSING - bucket indicator,(used before tractor serial no. 7105760)

1шт.

85

74057

POINTER - bucket indicator, (used before tractor serial no. 7105760)

1шт.

86

195-33

WASHER,1/2"

- plain (), bucket indicator (used before tractor serial no. 7105760) 1/2"

1шт.

87

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", bucket indicator (used before tractor serial no. 7105760)

1шт.

88

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4" (74056 mounting), bucket indicator (used before tractor serial no. 7105760)

2шт.

89

92-6

LOCK WASHER,3/8"

bucket indicator (used before tractor serial no. 7105760) 3/8"

2шт.

90

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), bucket indicator (used before tractor serial no. 7105760)

2шт.

91

D34156

GUIDE

- bucket indicator, (used on tractor serial no. 7105760 and after)

1шт.

92

D34174

CLAMP,5/8", 1/2" Bolt

- guide mounting, bucket indicator (used on tractor serial no. 7105760 and after)

3шт.

93

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

HHCS - 1/2" - 18 NC x 1", bucket indicator (used on tractor S/N 7105760 and after)

3шт.

94

92-8

LOCK WASHER,1/2"

bucket indicator (used on tractor serial no. 7105760 and after) 1/2"

3шт.

95

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), bucket indicator (used on tractor serial no. 7105760 and after)

3шт.

96

D34160

ROD

INDICATOR - bucket leveling, indicator (used on tractor serial no. 7105760 and after)

1шт.

97

D34155

PIN - mounting, bucket indicator (used on tractor serial no. 7105760 and after)

1шт.

98

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(D34160 mounting), bucket indicator (used on tractor serial no. 7105760 and after) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

99

92-5

LOCK WASHER,5/16"

bucket indicator (used on tractor serial no. 7105760 and after) 5/16"

1шт.

100

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), bucket indicator (used on tractor serial no. 7105760 and after)

2шт.

101

D34162

SPACER

- indicator rod, bucket indicator (used on tractor serial no. 7105760 and after)

1шт.

102

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (D34155 mounting), bucket indicator (used on tractor serial no. 7105760 and after)

1шт.

103

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Bucket indicator (used on tractor S/N 7105760 and after) Int Tooth, 1/2"

1шт.

104

D23740

BUSHING

- pin, bucket indicator (used on tractor serial no. 7105760 and after)

1шт.

D40445

TOOTH

ASSEMBLY - loader bucket (Used as service option for R18502 tooth only)

7шт.

105

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

106

D39090

POINT

- tooth, bucket

1шт.

107

D39448

PIN

FLEX PIN - point, bucket tooth

1шт.
