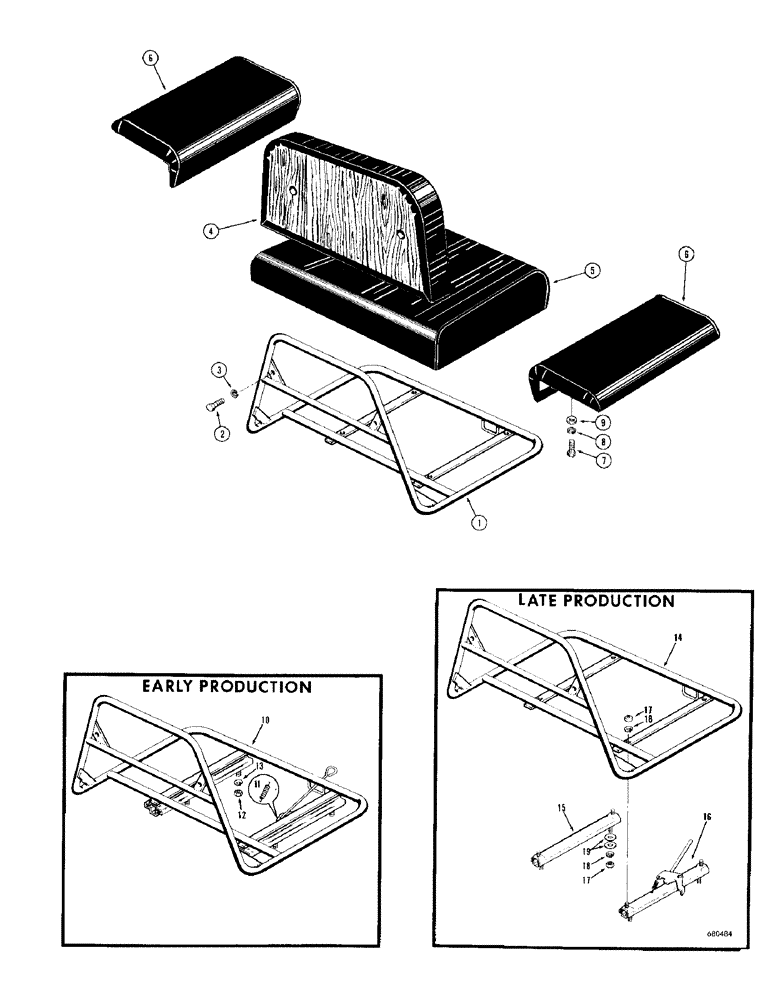

Запчасти Case 1000D (198) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

FRAME - seat (See seat frames listed below)

1шт.

2

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

R19212

CUSHION

Seat, back

1шт.

5

R19211

CUSHION

Seat

1шт.

6

R18424

CUSHION

Arm and hip

2шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

92-4

LOCK WASHER,1/4"

4шт.

9

195-18

WASHER,1/4"

4шт.

10

R19213

SPARE PART FRAME ASSEMBLY - seat, with ringed seat adjustment lever (When stock is exhausted, use D30054 frame for service), early production

1шт.

11

D32591

SPRING - seat latch, early production

1шт.

12

25-115

NUT,5/16"-24, G5

Early production

4шт.

13

92-5

LOCK WASHER,5/16"

Early production

4шт.

D30054

SPARE PART FRAME ASSEMBLY, with straight seat adjustment lever

1шт.

14

D29995

FRAME - seat, late production

1шт.

15

D29993

SLIDE

Seat, with nylon guides (When stock is exhausted, use (1) D40238 slide and (4) 195-21 plain washers for service), late production

1шт.

D40238

SLIDE

Seat, without nylon guides, late production

1шт.

16

D29994

X

SLIDE, LEVER AND LATCH - seat, with nylon guides (When stock is exhausted, use D40237 slide and (4) 195-21 plain washers for service), late production

1шт.

D40237

SLIDE

LEVER AND LATCH - seat, without nylon guides, late production

1шт.

17

25-115

NUT,5/16"-24, G5

Late production

8шт.

18

92-5

LOCK WASHER,5/16"

Late production

8шт.

19

195-21

WASHER,5/16"

Late production

8шт.
