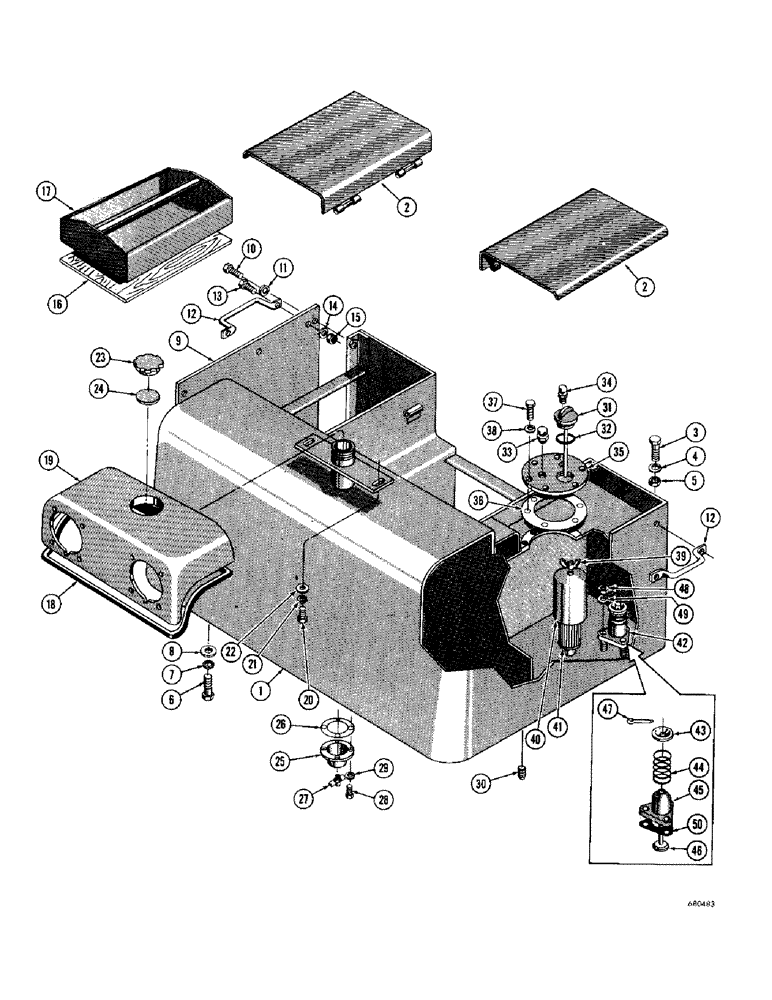

Запчасти Case 1000D (196) - SEAT AND TANK (05) - UPPERSTRUCTURE CHASSIS

1

R18558

SEAT AND TANK - used before tractor serial no. 7104771

1шт.

D31687

SEAT AND TANK - used on tractor serial no. 7104771 and after

1шт.

2

R18435

COVER - battery and hyraulic tank

2шт.

3

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2" (R18558 mounting)

6шт.

4

92-8

LOCK WASHER,1/2"

6шт.

5

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

6шт.

6

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (R18558 mounting)

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

4шт.

9

R18427

SIDE PLATE - battery box

1шт.

10

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1" (R18427 mounting)

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

70248

LEVER

HANDLE - grab

2шт.

13

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1" (70248 mounting)

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

16

71941

COVER

BOARD - battery bottom

1шт.

17

R18452

BOX - tool

1шт.

18

70214

CHANNEL

- rubber

1шт.

19

70217

HOUSING - rear light

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(70217 mounting) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 1/16" thick)

2шт.

23

R18545

CAP

- fuel tank

1шт.

24

R20846

GASKET - fuel tank cap

1шт.

25

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

26

35621

GASKET

- fuel tank drain

1шт.

27

217-81

VALVE

DRAIN COCK - fuel tank

1шт.

28

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1" (34574 mounting)

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

221-15

PLUG,Sq Hd, 3/4"-14

- pipe; extended square head (3/4" NPT)

1шт.

31

R18636

DIPSTICK - hydraulic oil gauge

1шт.

32

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

33

R15538

VALVE

- air inlet

1шт.

34

R15536

VALVE

- relief

1шт.

35

R16427

COVER - hydraulic tank

1шт.

36

R14032

GASKET - hydraulic tank cover

1шт.

37

14-814

HHCS - 1/2" - 20 NF x 7/8" (R16427 mounting)

6шт.

38

92-8

LOCK WASHER,1/2"

6шт.

39

129-410

WING NUT,3/8"-16

NUT - wing (3/8" - 16 NC)

1шт.

40

R17507

CAP - filter screen

1шт.

41

R13605

FILTER, ENGINE OIL

SCREEN - filter

1шт.

42

71358

LOCK VALVE

VALVE - relief

1шт.

43

35426

WASHER - spring retaining

1шт.

44

R17536

SPRING

1шт.

45

71356

STUD

HOUSING - relief valve

1шт.

46

71360

VALVE

1шт.

47

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

3шт.

49

92-6

LOCK WASHER,3/8"

3шт.

50

71361

GASKET

1шт.
