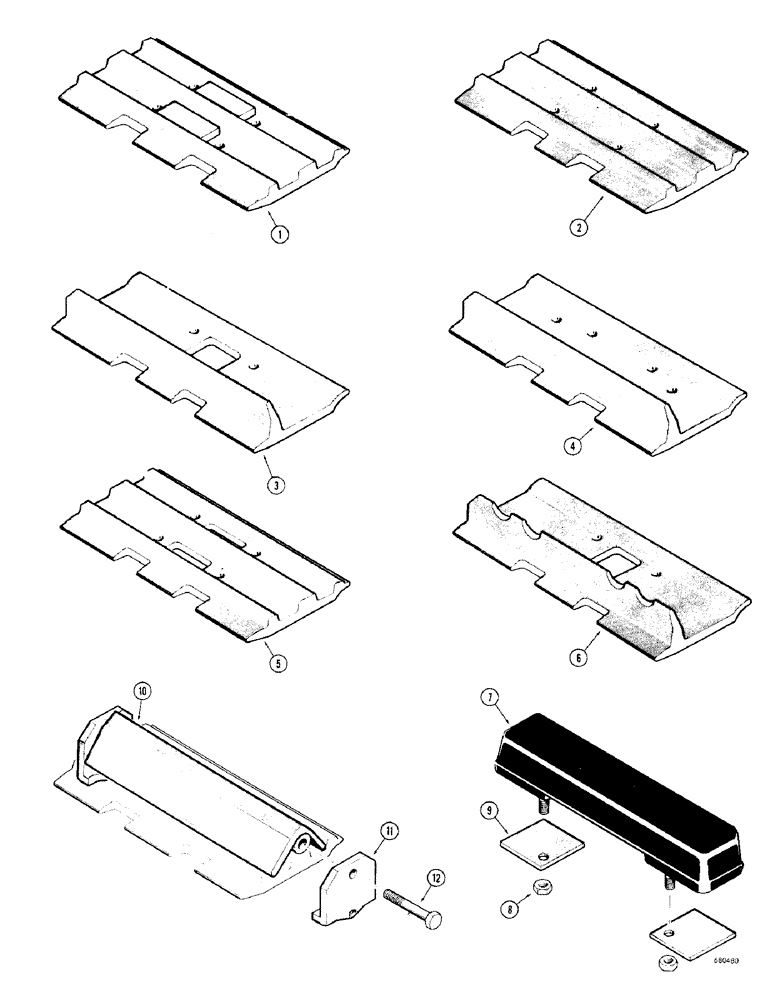

Запчасти Case 1000D (186) - TRACK SHOES, NON OVERLAPPING STYLE "NOTCH CUT", SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

1

D38977

SHOE - track, 10" (All models)

78шт.

2

D38981

SHOE - track, 13" (All models), semi-grouser, closed

78шт.

2

D38982

TRACK SHOE

SHOE - track, 15" (All models), semi-grouser, closed

78шт.

3

D39008

TRACK SHOE

SHOE - track, 15" (Drawbar or dozer models only), grouser, open center

78шт.

3

D39011

SHOE - track, 17" (Drawbar or angling dozer models without backhoe only), grouser, open center

78шт.

4

D38992

SHOE - track, 13" (Drawbar or dozer models only), grouser, closed

78шт.

4

D38995

TRACK SHOE

SHOE - track, 15" (Drawbar or dozer models only), grouser, closed

78шт.

4

D38998

TRACK SHOE

SHOE - track, 17" (Drawbar or angling dozer models without backhoe only), grouser, closed

78шт.

4

D39001

SHOE - track, 20" (Drawbar models only), grouser, closed

78шт.

5

D38988

CASE

SHOE - track, 13" (All models), semi-grouser, open center

78шт.

5

D38989

SHOE - track, 15" (All models), semi-grouser, open center

78шт.

6

D39019

SHOE - track, 15" (Drawbar or dozer models only), grouser, ice

78шт.

6

D39022

TRACK SHOE

SHOE - track, 17" (Drawbar or angling dozer models without backhoe only), grouser, ice

78шт.

R3553

X

RUBBER TRACK SHOE INSTALLATION - used with 14" thru 16" closed grousers only

1шт.

7

70635

SHOE

- track, rubber

78шт.

8

R21548

X

NUT - hex., special, rubber track shoe

156шт.

9

R21166

SPACER

- shoe, rubber track

156шт.

R21513

GROUSER INSTALLATION - clamp-on, used with 13" semi-grousers only

10шт.

R17483

GROUSER INSTALLATION - clamp-on, used with 15" semi-grousers only

10шт.

10

R21514

GROUSER - clamp-on, 13"

1шт.

10

R17480

GROUSER - clamp-on, 15"

1шт.

11

R21515

PLATE - end (R21513 only), clamp on grouser

1шт.

11

72306

SLEEVE

PLATE - end (R17483 only), clamp on grouser

1шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(R21515 mounting), clamp on grouser Hex, 5/8"-11 x 3", G5

1шт.

12

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4" (72306 mounting), clamp on grouser

1шт.
