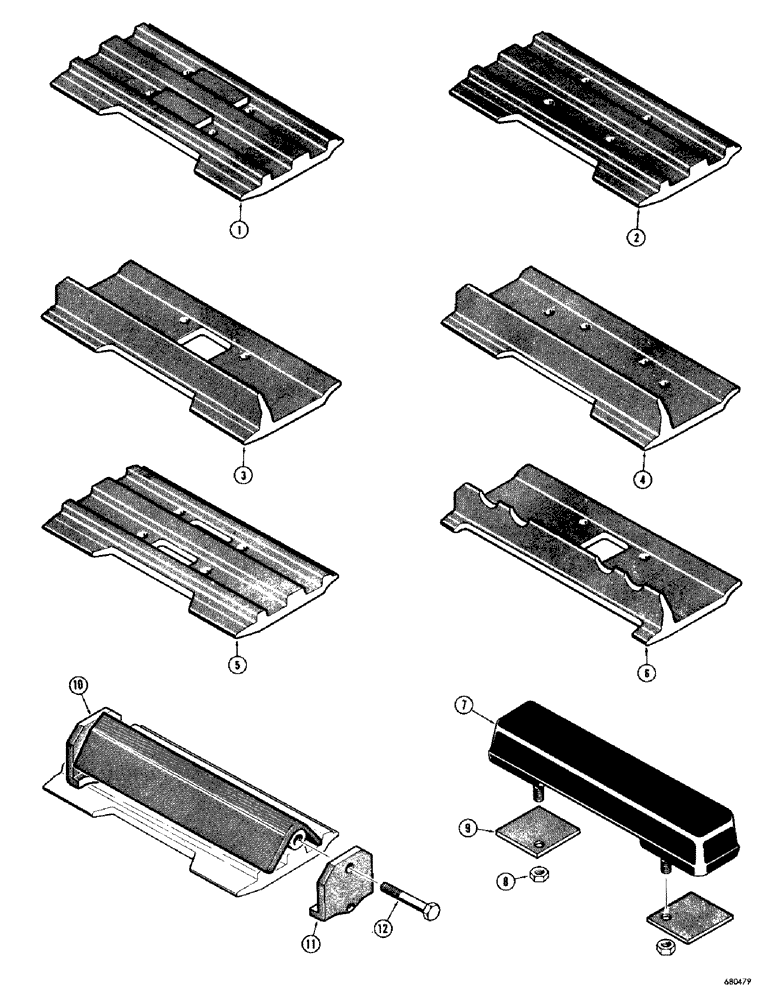

Запчасти Case 1000D (184) - TRACK SHOES, NON OVERLAPPING STYLE "EYEBROW CUT" SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

1

R20356

SHOE - track, 10" (All models)

78шт.

2

R17274

TRACK SHOE

SHOE - track, 13" (All models), semi-grouser, closed

78шт.

2

R17270

SHOE - track, 15" (All models), semi-grouser, closed

78шт.

3

R17327

TRACK SHOE

SHOE - track, 15" (Drawbar or dozer models only), grouser, open center

78шт.

3

R21604

SHOE - track, 17" (Drawbar or angling dozer models without backhoe only), grouser, open center

78шт.

4

R17337

SHOE - track, 13" (Drawbar or dozer models only), grouser, closed

78шт.

4

R17330

SHOE - track, 15" (Drawbar or dozer models only), grouser, closed

78шт.

4

R21605

SHOE - track, 17" (Drawbar or angling dozer models without backhoe only), grouser, closed

78шт.

4

R17338

SHOE - track, 20" (Drawbar models only), grouser, closed

78шт.

5

R17267

SHOE - track, 13" (All models), semi-grouser, open center

78шт.

5

R17269

SHOE - track, 15" (All models), semi-grouser, open center

78шт.

6

R17322

SHOE - track, 15" (Drawbar or dozer models only), grouser, ice

78шт.

6

R21606

TRACK SHOE

SHOE - track, 17" (Drawbar or angling dozer models without backhoe only), grouser, ice

78шт.

R3553

X

RUBBER TRACK SHOE INSTALLATION - used with 14" thru 16" closed grousers only

1шт.

7

70635

SHOE

- track, rubber

78шт.

8

R21548

X

NUT - hex., special, rubber track shoe

156шт.

9

R21166

SPACER

- shoe, rubber track

156шт.

R21513

GROUSER INSTALLATION - clamp-on, used with 13" semi-grousers only

10шт.

R17483

GROUSER INSTALLATION - clamp-on, used with 15" semi-grousers only

10шт.

10

R21514

GROUSER - clamp-on, 13"

1шт.

10

R17480

GROUSER - clamp-on, 15"

1шт.

11

R21515

PLATE - end (R21513 only), clamp on grouser

1шт.

11

72306

SLEEVE

PLATE - end (R17483 only), clamp on grouser

1шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(R21515 mounting), clamp on grouser Hex, 5/8"-11 x 3", G5

1шт.

12

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4" (72306 mounting), clamp on grouser

1шт.
