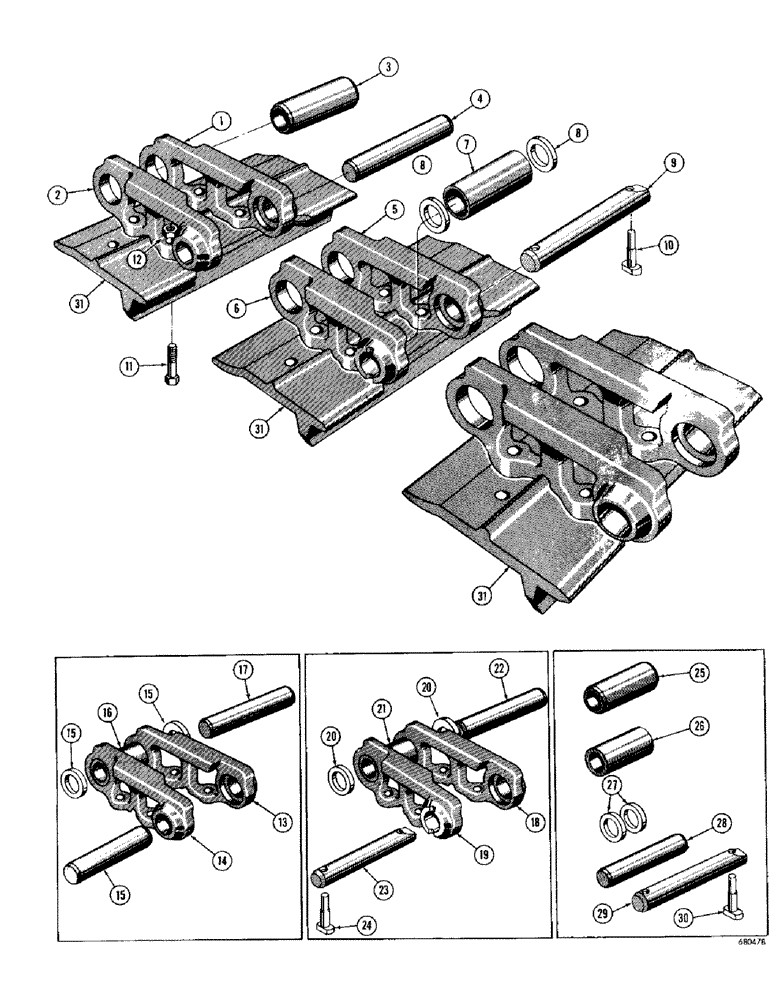

Запчасти Case 1000D (182) - TRACK CHAIN, USED ON TRACTOR SERIAL NO. 7104771 & AFTER (04) - UNDERCARRIAGE

D31715

CHAIN ASSEMBLY - track, 19 unit

2шт.

D31714

TRACK CHAIN

CHAIN ASSEMBLY - track, 20 unit

2шт.

1

D31710

LINK

- track, R.H. (Order D31820 for service)

19шт.

2

D31709

LINK

- track, L.H. (Order D31820 for service)

19шт.

3

R14892

BUSHING

- track, long

19шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

19шт.

D32164

PIN

- track, .003" oversize (Service option)

19шт.

5

D31712

X

LINK - master, R.H. (Order D31821 for service)

1шт.

6

D31711

LINK - master, L.H. (Order D31821 for service)

1шт.

7

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

8

R14898

SPACER

BUSHING - spacer

2шт.

D31823

PIN

KIT - master pin

1шт.

9

D30426

PIN

- master (Order D31823 for service)

1шт.

10

D33777

AXLE PIN

PIN - lock, master pin

2шт.

11

R15309

BOLT

- special

312шт.

12

R17415

LOCK NUT

- lock, special

312шт.

D31820

KIT

- track chain unit

74шт.

13

D31710

LINK

- track, R.H. (Order D31820 for service), chain unit kit

1шт.

14

D31709

LINK

- track, L.H. (Order D31820 for service), chain unit kit

1шт.

15

R14898

SPACER

BUSHING - spacer, track chain unit kit

2шт.

16

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, track chain unit kit

1шт.

17

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, chain unit kit

2шт.

D31821

KIT

- master unit (When stock is exhausted, use D38426 kit for service)

4шт.

18

D31712

X

LINK - master R.H. (Use D31821 kit for service, when stock is exhausted of D31821 kit, use D38426 kit for service), chain unit kit

1шт.

19

D31711

LINK - master, L.H. (Use D31821 kit for service, when stock is exhausted of D31821 kit, use D38426 kit for service), chain unit kit

1шт.

20

R14898

SPACER

BUSHING - spacer, master chain unit kit

2шт.

21

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

22

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

D31823

PIN

KIT - master pin, chain unit kit

1шт.

23

D30426

PIN

- master (Order D31823 for service), chain unit kit

1шт.

24

D33777

AXLE PIN

PIN - lock, master pin, chain unit kit

2шт.

D33152

PIN

KIT - pin and bushing

1шт.

25

R14892

BUSHING

- track, long, pin kit

74шт.

26

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

27

R14898

SPACER

BUSHING - spacer, pin kit

8шт.

28

D32164

PIN

- track, .003" oversize (Service option), bushing kit

74шт.

D31823

PIN

KIT - master pin, bushing

4шт.

29

D30426

PIN

- master (Order D31823 for service), bushing kit

1шт.

30

D33777

AXLE PIN

PIN - lock, master pin, bushing kit

2шт.
