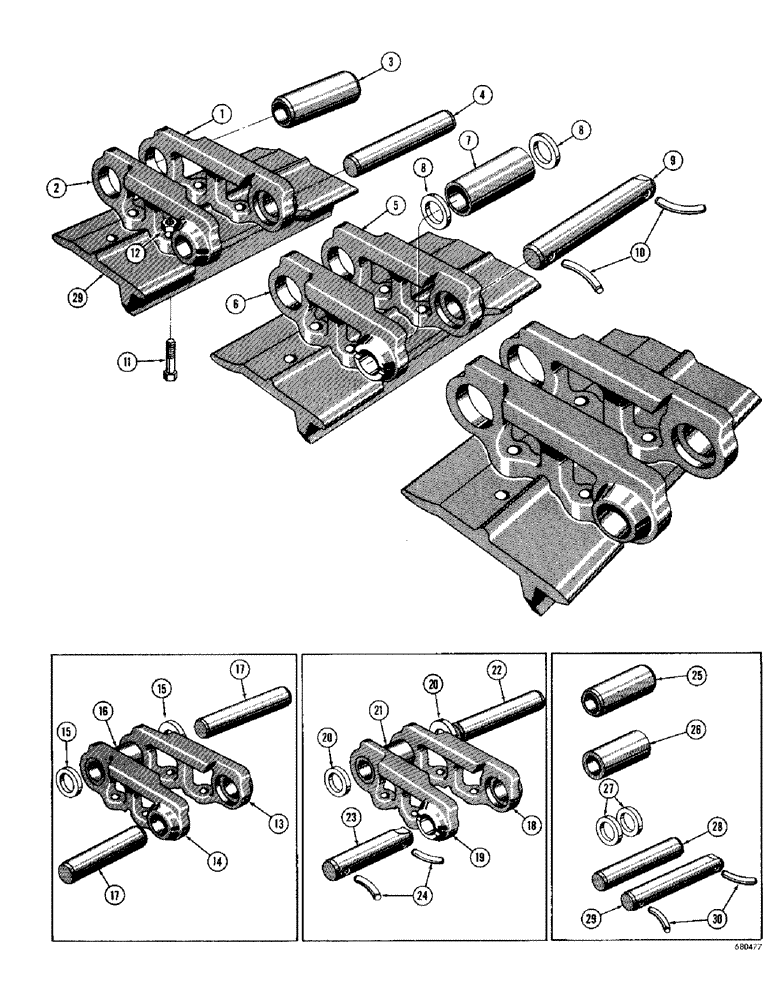

Запчасти Case 1000D (180) - TRACK CHAIN, USED ON TRAC. SN. 7104601 & UP TO 7104771 (04) - UNDERCARRIAGE

R22182

CHAIN ASSEMBLY - track, 19 unit (When stock is exhausted, use D31715 for service (Parts list Figure182)

2шт.

R22181

CHAIN ASSEMBLY - track, 20 unit (When stock is exhausted, use D31714 for service (Parts list Figure 182)

2шт.

1

R22010

LINK - track, R.H. (Order R4445 for service)

19шт.

2

R22009

X

LINK - track, L.H. (Order R4445 for service)

19шт.

3

R14892

BUSHING

- track, long

19шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

19шт.

D32164

PIN

- track, .003" oversize (Service option)

19шт.

5

R22184

LINK - master, R.H. (Order R4446 for service)

1шт.

6

R22183

LINK - master, L.H. (Order R4446 for service)

1шт.

7

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

8

R14898

SPACER

BUSHING - spacer

2шт.

R3049

KIT

- master pin

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - master (Order R3049 for service)

1шт.

10

R15710

LINCH PIN

PIN - lock, master pin

2шт.

11

R15309

BOLT

- special

312шт.

12

R17415

LOCK NUT

- lock, special

312шт.

R4445

KIT - track chain unit (When stock is exhausted, use D31820 for service) See Figure 182

74шт.

13

R22010

LINK - track, R.H. (Order R4445 for service), chain unit kit

1шт.

14

R22009

X

LINK - track, L.H. (Order R4445 for service), chain unit kit

1шт.

15

R14898

SPACER

BUSHING - spacer, track chain unit kit

2шт.

16

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, track chain unit kit

1шт.

17

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, chain unit kit

2шт.

R4446

KIT - master unit (When stock is exhausted, use D31821 for service) See Figure 182

4шт.

18

R22184

LINK - master, R.H. (Order R4446 for service), chain unit kit

1шт.

19

R22183

LINK - master, L.H. (Order R4446 for service), chain unit kit

1шт.

20

R14898

SPACER

BUSHING - spacer, master chain unit kit

2шт.

21

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

22

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

R3049

KIT

- master pin, chain unit kit

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - master (Order R3049 for service), chain unit kit

1шт.

24

R15710

LINCH PIN

PIN - lock, master pin, chain unit kit

2шт.

D33151

KIT

- pin and bushing, master chain unit kit

1шт.

25

R14892

BUSHING

- track, long, pin kit

74шт.

26

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

27

R14898

SPACER

BUSHING - spacer, pin kit

8шт.

28

D32164

PIN

- track, .003" oversize (Service option), bushing kit

74шт.

R3049

KIT

- master pin, bushing kit

4шт.

29

NSS

NOT SOLD SEPARAT

PIN - master (Order R3049 for service), bushing kit

1шт.

30

R15710

LINCH PIN

PIN - lock, master pin, bushing kit

2шт.
