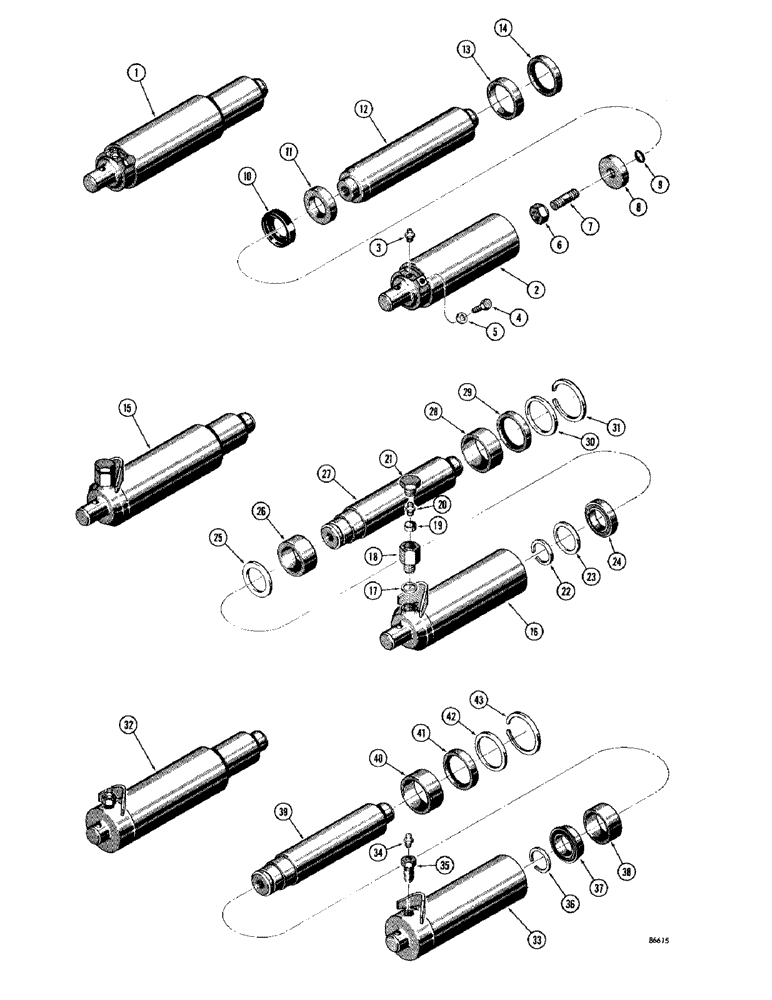

Запчасти Case 1000D (176) - TRACK ADJUSTERS, R22090 TRACK ADJUSTER, USED BEFORE TRACTOR SN. 7104771 (04) - UNDERCARRIAGE

1

R22090

TRACK ADJUSTER - hydraulic (Used before tractor serial no. 7104771)

2шт.

2

R20335

CYLINDER BLOCK

HEAD ASSEMBLY - piston

1шт.

3

219-401

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

4

R21362

BOLT - vent

1шт.

5

10298

COPPER WASHER

- copper

1шт.

6

230-4618

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2" - 20 NF)

1шт.

7

74261

STUD - 1/2" - 20 NF x 1-7/8"

1шт.

8

R21769

WASHER

- track adjuster cup

1шт.

9

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - "O" ring

1шт.

10

R21770

CUP

- track adjuster

1шт.

11

R21771

BUSHING

SPACER - backup

1шт.

12

R20338

PISTON - track adjuster

1шт.

13

R21772

RING

- rider

1шт.

14

R21773

SEAL

- wiper

1шт.

15

D31301

TRACK ADJUSTER - hydraulic (Used on tractor serial no. 7104771 and up to tractor serial no. 7106560) When stock is exhausted use D36733 track adjuster for service

2шт.

16

D30370

TUBE

HEAD ASSEMBLY - piston (Use 1 - D36730 head and 1 - D35287 check ball for service), D31301 track adjuster

1шт.

17

D32659

WASHER

- copper, D31301 track adjuster

1шт.

18

D30375

BUSHING

SPACER - safety, D31301 track adjuster

1шт.

19

D30366

TUBE NUT

ADAPTER - special, D31301 track adjuster

1шт.

20

219-401

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT), D31301 track adjuster

1шт.

21

D30486

PLUG

CAP - grease fitting adapter, D31301 track adjuster

1шт.

22

A7611

SNAP RING,#175, Ext

Ring, Snap, , D31301 track adjuster #175, Ext

1шт.

23

D31200

WASHER

- special, track adjuster, D31301

1шт.

24

D31201

X

PACKING - track adjuster (When stock is exhausted, use D38110 packing for service), D31301

1шт.

25

D31202

WASHER

- track adjuster, D31301

1шт.

26

D30368

BEARING

- backup, track adjuster, D31301

1шт.

27

D31300

PISTON

- track adjuster, D31301

1шт.

28

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

PACKING - track adjuster, D31301

1шт.

29

D30373

WIPER

SEAL - wiper, D31301 track adjuster

1шт.

30

D31199

WASHER

- special, D31301 track adjuster

1шт.

31

D32043

RING

- retainer, D31301 track adjuster

1шт.

32

D36733

ADJUSTER

TRACK ADJUSTER - hydraulic (Used on tractor serial no. 7106560 and after), D36733

2шт.

33

D36730

CYLINDER

HEAD ASSEMBLY - piston, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT), D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

35

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

36

A7611

SNAP RING,#175, Ext

Ring, Snap, , D36733 track adjuster, used on tractor serial no. 7106560 and after #175, Ext

1шт.

37

D38110

PACKING

- "U" type, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

38

D30368

BEARING

- backup, track adjuster, D36733, used on tractor serial no. 7106560 and after

1шт.

39

D31300

PISTON

- track adjuster, D36733, used on tractor serial no. 7106560 and after

1шт.

40

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- rider, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

41

D30373

WIPER

SEAL - wiper, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

42

D31199

WASHER

- special, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

43

D32043

RING

- retainer, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.
