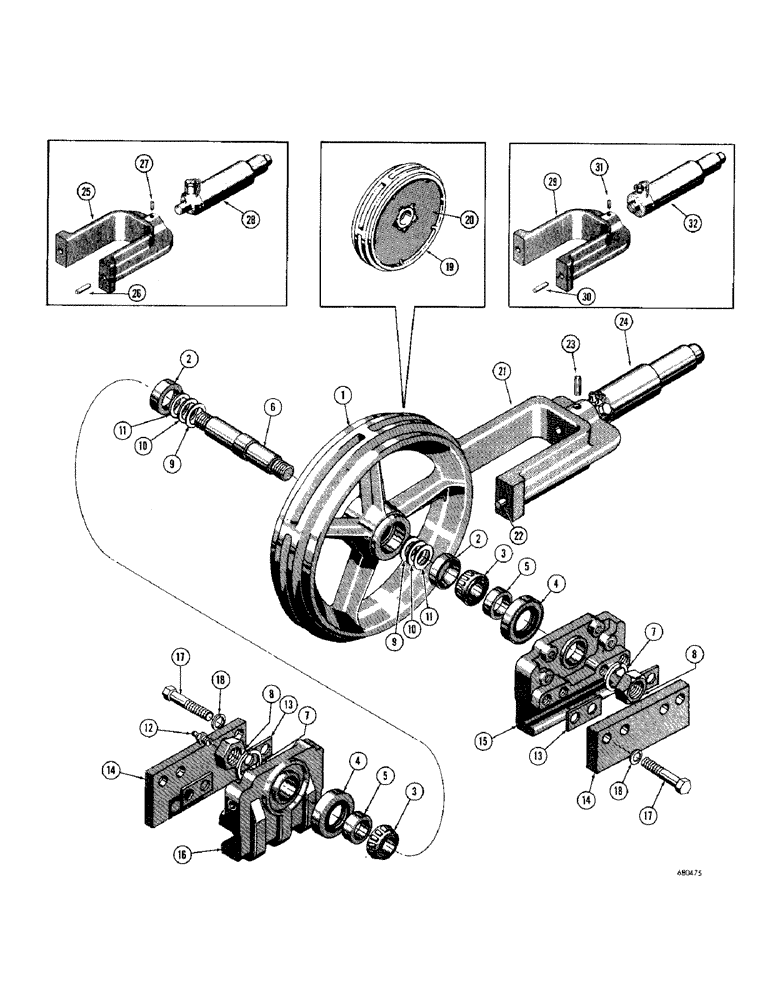

Запчасти Case 1000D (174) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

D12189

FRONT IDLER

AND BRACKET - L.H.

1шт.

D12190

FRONT IDLER

AND BRACKET - R.H.

1шт.

1

R20847

FRONT IDLER

WHEEL - idler

1шт.

D31454

KIT

- idler wheel

1шт.

2

A27732

BEARING CUP

CUP - bearing

2шт.

3

51200231

BEARING, CONE,50.8mm ID x 30.96mm W

CONE - bearing

2шт.

4

D31848

OIL SEAL

- oil

2шт.

5

70071

BUSHING

SPACER - idler wheel

2шт.

6

70085

SHAFT

- idler wheel

1шт.

7

R12826

WASHER

- idler wheel

2шт.

8

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex., lock (1-1/2" - 12 NF)

2шт.

9

R13586

SHIM,.005" Thk

Idler wheel .005" Thk

1шт.

10

R13587

SHIM,.007" Thk

Idler wheel .007" Thk

1шт.

11

R13588

SHIM,.010" Thk

Idler wheel .010" Thk

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

13

70084

SHIM

- idler wheel (.035" thick)

1шт.

14

70072

PLATE

- guide

2шт.

15

R20641

BRACKET

- idler wheel, L.H.

1шт.

16

R20642

BRACKET

- idler wheel, R.H.

1шт.

17

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4" - 16 NF x 2" (Bracket mounting)

8шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

19

R22035

WHEEL - idler (Mining Special)

2шт.

20

R22034

DISC - idler wheel (Mining Special)

2шт.

R22091

YOKE

ASSEMBLY - front idler (Used before tractor serial no. 7104771) When stock is exhausted use 1 - D32160 yoke and 1 - 181-275 set screw for service

2шт.

21

NSS

NOT SOLD SEPARAT

YOKE - front idler, R22090 track adjuster, used before tractor serial no. 7104771

1шт.

22

R16453

PIN

- dowel, 5/8" dia. x 1-1/2", R22090 track adjuster, used before tractor serial no. 7104771

2шт.

23

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , R22090 track adjuster, used before tractor S/N 7104771 3/8" x 2 1/2", Slotted

2шт.

24

R22090

TRACK ADJUSTER - hydraulic (Used before tractor serial no. 7104771) See Figure 176 for breakdown

2шт.

D32160

YOKE

ASSEMBLY - front idler (Used on tractor serial no. 7104771 and after)

2шт.

25

NSS

NOT SOLD SEPARAT

YOKE - front idler, D31301 track adjuster

1шт.

26

R16453

PIN

- dowel, 5/8" dia. x 1-1/2", D31301 track adjuster

2шт.

27

181-276

SCREW

- set, square head (1/2" - 13 NC x 1-1/4"), D31301 track adjuster

2шт.

28

D31301

TRACK ADJUSTER - hydraulic (Used on tractor serial no. 7104771 and up to tractor serial no. 7106560) See Figure 176 for breakdown (When stock is exhausted use D36733 track adjuster for service), D31301

2шт.

D32160

YOKE

ASSEMBLY - front idler (Used on tractor serial no. 7104771 and after), D31301 track adjuster

2шт.

29

NSS

NOT SOLD SEPARAT

YOKE - front idler, D36733 track adjuster, used on tractor serial no. 7106560 and after

1шт.

30

NSS

NOT SOLD SEPARAT

PIN - dowel, 5/8" dia. x 1-1/2", D36733 track adjuster, used on tractor serial no. 7106560 and after

2шт.

31

181-276

SCREW

- set, square head (1/2" - 13 NC x 1-1/4"), D36733 track adjuster, used on tractor serial no. 7106560 and after

2шт.

32

D36733

ADJUSTER

TRACK ADJUSTER - hydraulic (Used on tractor serial no. 7106560 and after) See Figure 176 for breakdown

2шт.
