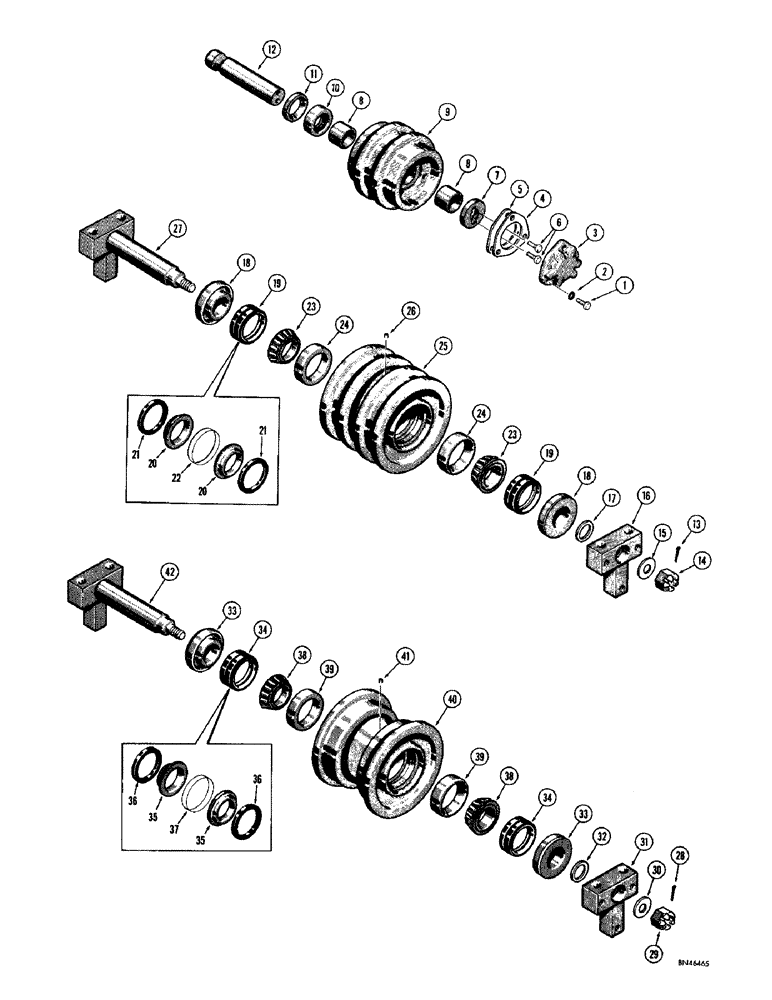

Запчасти Case 1000D (172) - TRACK ROLLERS, D36354 TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

D36354

ROLLER

- track carrier (Service replacement)

4шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

- copper

1шт.

3

D30381

COVER

- roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

D36397

WASHER

- thrust, 2-7/16" O.D. (Early production)

1шт.

D30382

WASHER

- thrust, 2-1/2" O.D. (Late production)

1шт.

8

D35242

BUSHING

- split

2шт.

9

D36979

HUB

- roller

1шт.

10

D36394

SEAL

- oil

1шт.

11

D36395

GUARD

SHIELD - seal

1шт.

12

D36396

SHAFT

- roller

1шт.

D37345

ROLLER - track, double flange (Service option) Used on all models except Mining Specials

4шт.

D37933

ROLLER - track, double flange (Service option) Used on Mining Special models only

4шт.

13

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , D37345 and D37933 track rollers (double flange) 1/8" x 1 3/8"

1шт.

14

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF), D37345 and D37933 track rollers (double flange)

1шт.

15

D31328

WASHER

- special, D37345 and D37933 track rollers (double flange)

1шт.

16

D37346

BLOCK

- roller (D37345 roller only), D37345 and D37933 track rollers (double flange)

1шт.

D37929

BLOCK - roller (D37933 roller only) Not illustrated, D37345 and D37933 track rollers (double flange)

1шт.

17

D31329

SHIM,.005" Thk

- .005" thick, D37345 and D37933 track rollers (Double flange)

1шт.

18

D36043

BUSHING

- thrust, D37345 and D37933 track rollers (double flange)

2шт.

19

D35267

SEAL

- face, D37345 and D37933 track rollers (double flange)

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - seal, split, D37345 and D37933 track rollers (double flange)

1шт.

D36826

SEAL KIT

KIT - repair, D37345 and D37933 track rollers (double flange)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAl - rubber, D37345 and D37933 track rollers (double flange)

2шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D37345 and D37933 track rollers (double flange)

2шт.

23

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, D37345 and D37933 track rollers (double flange)

2шт.

24

A55807

BEARING, CUP,83.7375 mm OD x 23.7105, 30.2635 mm

CUP - bearing, D37345 and D37933 track rollers (double flange)

2шт.

25

D36465

HUB

- track roller, double flange, D37345 and D37933 track rollers (double flange)

1шт.

26

221-841

PLUG

- pipe, square socket head (1/4" NPT), D37345 and D37933 track rollers (double flange)

1шт.

27

D37348

SHAFT

BLOCK AND SHAFT - roller (D37345 roller only) (double flange)

1шт.

D37931

X

BLOCK AND SHAFT - roller (D37933 roller only) Not illustrated, (double flange)

1шт.

D37344

ROLLER

- track, double flange (Service option) Used on all models except Mining Specials

8шт.

D37932

ROLLER - track, double flange (Service option) Used on Mining Specials models only

8шт.

28

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , D37344 and D37932 track rollers (single flange) 1/8" x 1 3/8"

1шт.

30

D31328

WASHER

- special, D37344 and D37932 track rollers (single flange)

1шт.

31

D37346

BLOCK

- roller (D37344 roller only) (single flange)

1шт.

D37929

BLOCK - roller (D37932 roller only) Not illustrated (single flange)

1шт.

32

D31329

SHIM,.005" Thk

- .005" thick, D37344 and D37932 track rollers (Single flange)

1шт.

33

D36043

BUSHING

- thrust, D37344 and D37932 track rollers (single flange)

2шт.

34

D35267

SEAL

- face, D37344 and D37932 track rollers (single flange)

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - seal, split, D37344 and D37932 track rollers (single flange)

1шт.

D36826

SEAL KIT

KIT - repair, D37344 and D37932 track rollers (single flange)

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - rubber, D37344 and D37932 track rollers (single flange)

2шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D37344 and D37932 track rollers (single flange)

2шт.

38

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, D37344 and D37932 track rollers (single flange)

2шт.

39

A55807

BEARING, CUP,83.7375 mm OD x 23.7105, 30.2635 mm

CUP - bearing, D37344 and D37932 track rollers (single flange)

2шт.

40

D36402

FLANGE

HUB - roller, single flange, D37344 and D37932 track rollers (single flange)

1шт.

41

221-841

PLUG

- pipe, square socket head (1/4" NPT), D37344 and D37932 track rollers (single flange)

1шт.

42

D37348

SHAFT

BLOCK AND SHAFT - roller (D37344 roller only) (single flange)

1шт.

D37931

X

BLOCK AND SHAFT - roller (D37932 roller only) Not illustrated (single flange)

1шт.
