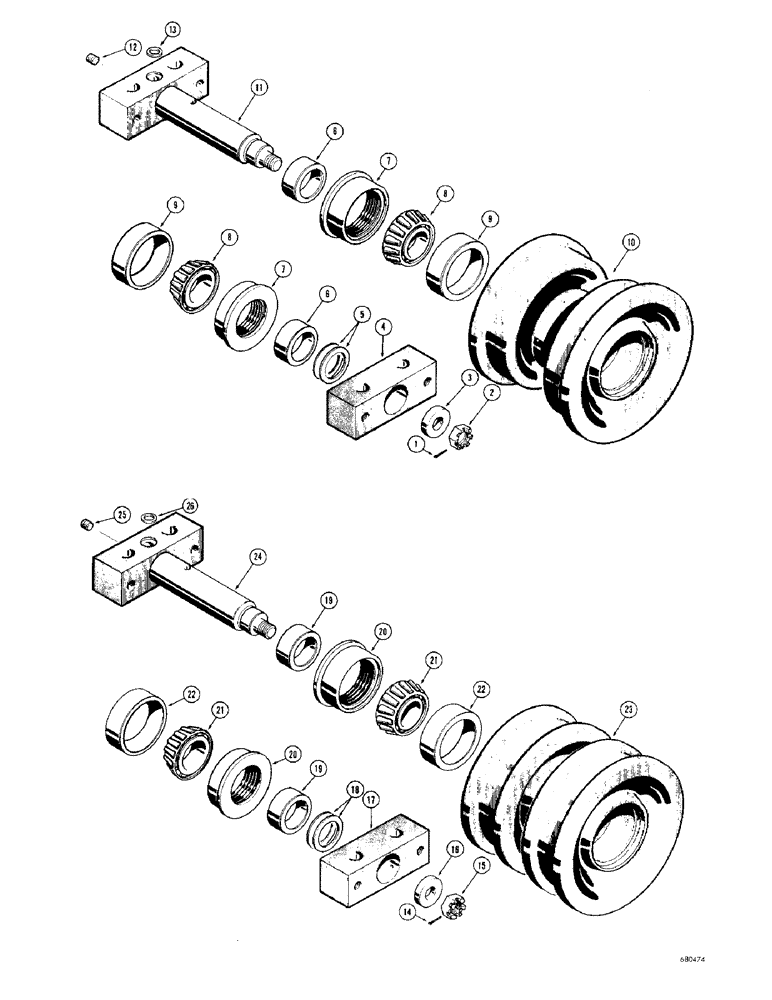

Запчасти Case 1000D (170) - TRACK ROLLERS, D32700 TRACK ROLLER (SINGLE FLANGE), USED ON TRAC. SN 7104771 & AFTER (04) - UNDERCARRIAGE

D32700

X

ROLLER - track, single flange (Used on Mining Special models only) (See D37932 service option roller, Figure 172) 7104771

8шт.

1

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

2

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF)

1шт.

3

D31328

WASHER

- special

1шт.

4

D32702

BLOCK - track roller, outer

1шт.

5

D31329

SHIM,.005" Thk

Track roller .005" Thk

1шт.

6

D31323

BUSHING

SPACER - track roller

2шт.

7

D31322

SEAL

- oil

2шт.

8

D31388

CONE

- bearing

2шт.

9

A27734

BEARING CUP

CUP - bearing

2шт.

10

D31320

HUB - track roller, single flange

1шт.

11

D32703

BLOCK AND SHAFT - track roller

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

13

74667

GASKET

- grease seal

12шт.

D32701

ROLLER - track, double flange (Used on Mining Special models only) (See D37933 service option roller, Figure 172) 7104771

4шт.

14

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , D32701 track roller (double flange) 7104771 1/8" x 1 3/8"

1шт.

15

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF), D32701 track roller (double flange) 7104771

1шт.

16

D31328

WASHER

- special, D32701 track roller (double flange) 7104771

1шт.

17

D32702

BLOCK - track roller, outer, D32701 track roller (double flange) 7104771

1шт.

18

D31329

SHIM,.005" Thk

Track roller, D32701 track roller (Double flange) 7104771 .005" Thk

1шт.

19

D31323

BUSHING

SPACER - track roller, D32701 track roller (double flange) 7104771

2шт.

20

D31322

SEAL

- oil, D32701 track roller (double flange) 7104771

2шт.

21

D31388

CONE

- bearing, D32701 track roller (double flange) 7104771

2шт.

22

A27734

BEARING CUP

CUP - bearing, D32701 track roller (double flange) 7104771

2шт.

23

D31332

HUB - track roller, double flange, D32701 track roller (double flange) 7104771

1шт.

24

D32703

BLOCK AND SHAFT - track roller, D32701 track roller (double flange) 7104771

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT), D32701 track roller (double flange) 7104771

1шт.

26

74667

GASKET

- grease seal, D32701 track roller (double flange) 7104771

12шт.
