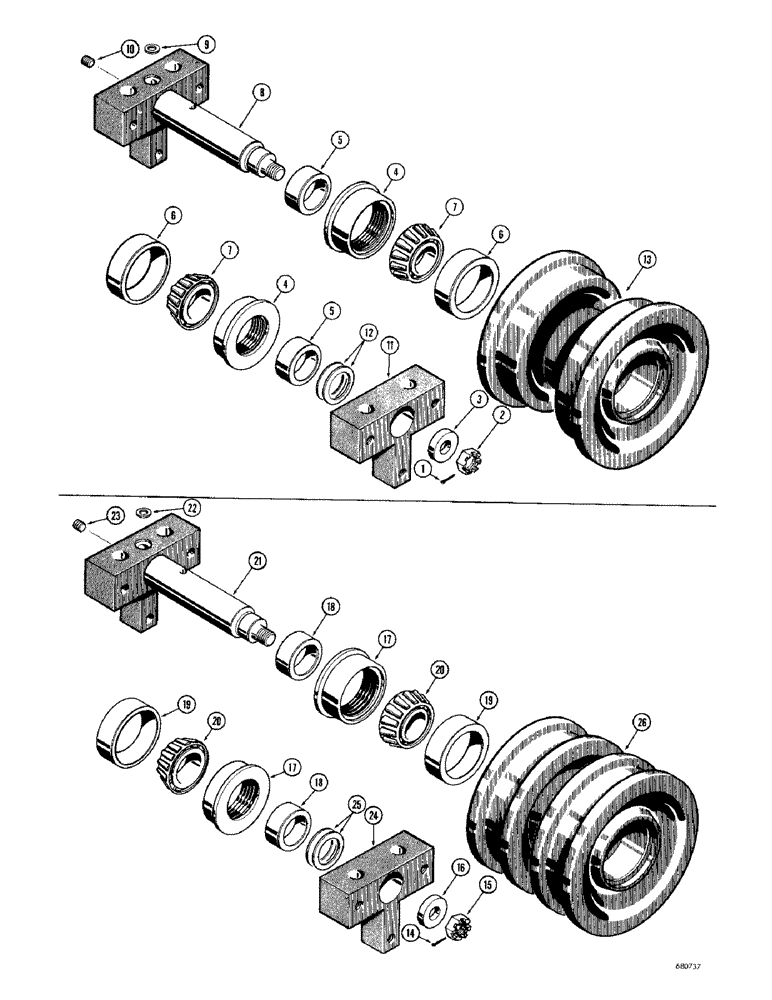

Запчасти Case 1000D (168) - TRACK ROLLERS, D31319 TRACK ROLLER (SINGLE FLANGE), USED ON TRAC. SN. 71404771 & AFTER (04) - UNDERCARRIAGE

D31319

ROLLER

- track, single flange (Used on all models except Mining Specials) (See D37344 service option roller, Figure 172) 7104771

8шт.

D31455

KIT

- track roller

1шт.

1

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

2

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF)

1шт.

3

D31328

WASHER

- special

1шт.

4

D31322

SEAL

- oil

2шт.

5

D31323

BUSHING

SPACER - track roller

2шт.

6

A27734

BEARING CUP

CUP - bearing

2шт.

7

D31388

CONE

- bearing

2шт.

8

D31324

BLOCK AND SHAFT - track roller

1шт.

9

74667

GASKET

- grease seal (Serviced as individual item or as part of roller kit, is not included in complete roller)

1шт.

10

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

11

D31327

BLOCK

- track roller, outer

1шт.

12

D31329

SHIM,.005" Thk

Track roller .005" Thk

1шт.

13

D31320

HUB - track roller, single flange

1шт.

D31331

ROLLER

- track, double flange (Used on all models except Mining Specials) (See D37345 service option roller, Figure 172) 7104771

4шт.

D31455

KIT

- track roller, D31331 (double flange) 7104771

1шт.

14

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , D31331 track roller (double flange) 7104771 1/8" x 1 3/8"

1шт.

15

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF), D31331 track roller (double flange) 7104771

1шт.

16

D31328

WASHER

- special, D31331 track roller (double flange) 7104771

1шт.

17

D31322

SEAL

- oil, D31331 track roller (double flange) 7104771

2шт.

18

D31323

BUSHING

SPACER - track roller, D31331 (double flange) 7104771

2шт.

19

A27734

BEARING CUP

CUP - bearing, D31331 track roller (double flange) 7104771

2шт.

20

D31388

CONE

- bearing, D31331 track roller (double flange) 7104771

2шт.

21

D31324

BLOCK AND SHAFT - track roller, D31331 (double flange) 7104771

1шт.

22

74667

GASKET

- grease seal (Serviced as individual item or as part of roller kit, is not included in complete roller), D31331 track (double flange)7104771

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT), D31331 (double flange) 7104771

1шт.

24

D31327

BLOCK

- track roller, outer, D31331 (double flange) 7104771

1шт.

25

D31329

SHIM,.005" Thk

Track roller, D31331 track roller (Double flange) 7104771 .005" Thk

1шт.

26

D31332

HUB - track roller, double flange, D31331 7104771

1шт.
